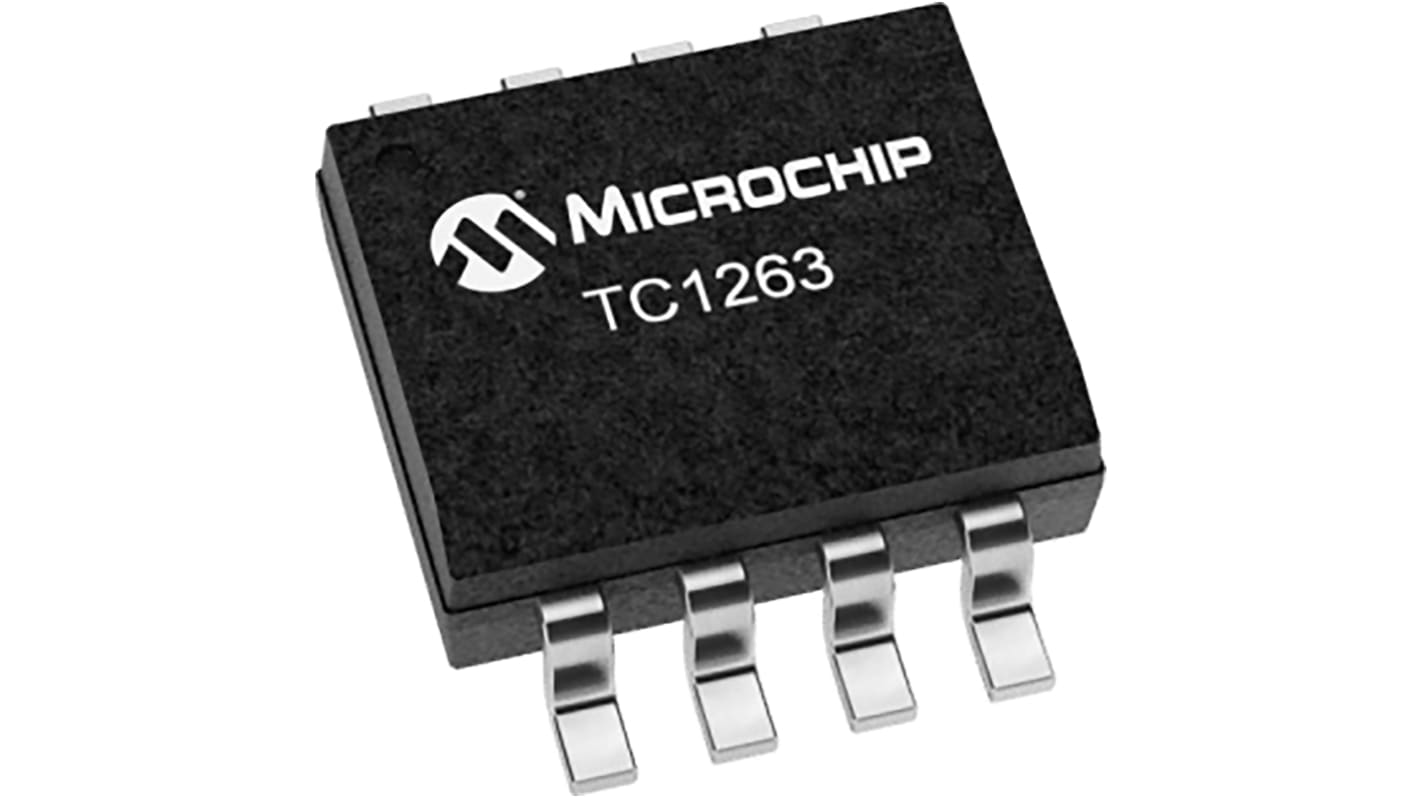

Microchip TC1263-3.3VOA, 1 Low Dropout Voltage, Voltage Regulator 500mA, 3.3 V 8-Pin, SOIC

View all Voltage Regulators
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
177-9678
Mfr. Part No.:
TC1263-3.3VOA
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Maximum Output Current

500mA

Regulator Type

Low Dropout Voltage

Number of Outputs

1

Output Voltage

3.3 V

Line Regulation

0.35 %

Accuracy

±0.5%

Load Regulation

±0.01 %/mA

Polarity

Positive

Mounting Type

Surface Mount

Package Type

SOIC

Pin Count

8

Output Type

Fixed

Dimensions

5 x 3.99 x 1.55mm

Minimum Operating Temperature

-40 °C

Height

1.55mm

Maximum Input Voltage

6 V

Maximum Operating Temperature

+125 °C

Minimum Input Voltage

2.7 V

Length

5mm

Width

3.99mm

The TC1263 is a fixed output, high accuracy (typically ±0.5%) CMOS low dropout regulator. Designed specifically for battery-operated systems, the TC1263’s CMOS construction eliminates wasted ground current, significantly extending battery life. Total supply current is typically 80 μA at full load (20 to 60 times lower than in bipolar regulators). TC1263 key features include ultra low noise, very low dropout voltage (typically 350 mV at full load), and fast response to step changes in load. The TC1263 incorporates both over-temperature and over-current protection. The TC1263 is stable with an output capacitor of only 1μF and has a maximum output current of 500 mA. It is available in 8-Pin SOIC, 5-Pin TO-220 and 5-Pin DDPAK packages.

very Low Dropout Voltage
High Output Voltage Accuracy
Standard or Custom Output Voltages
Over-Current and Over-Temperature Protection
SHDN Input for Active Power Management
ERROR Output to Detect Low Battery (SOIC Only)
