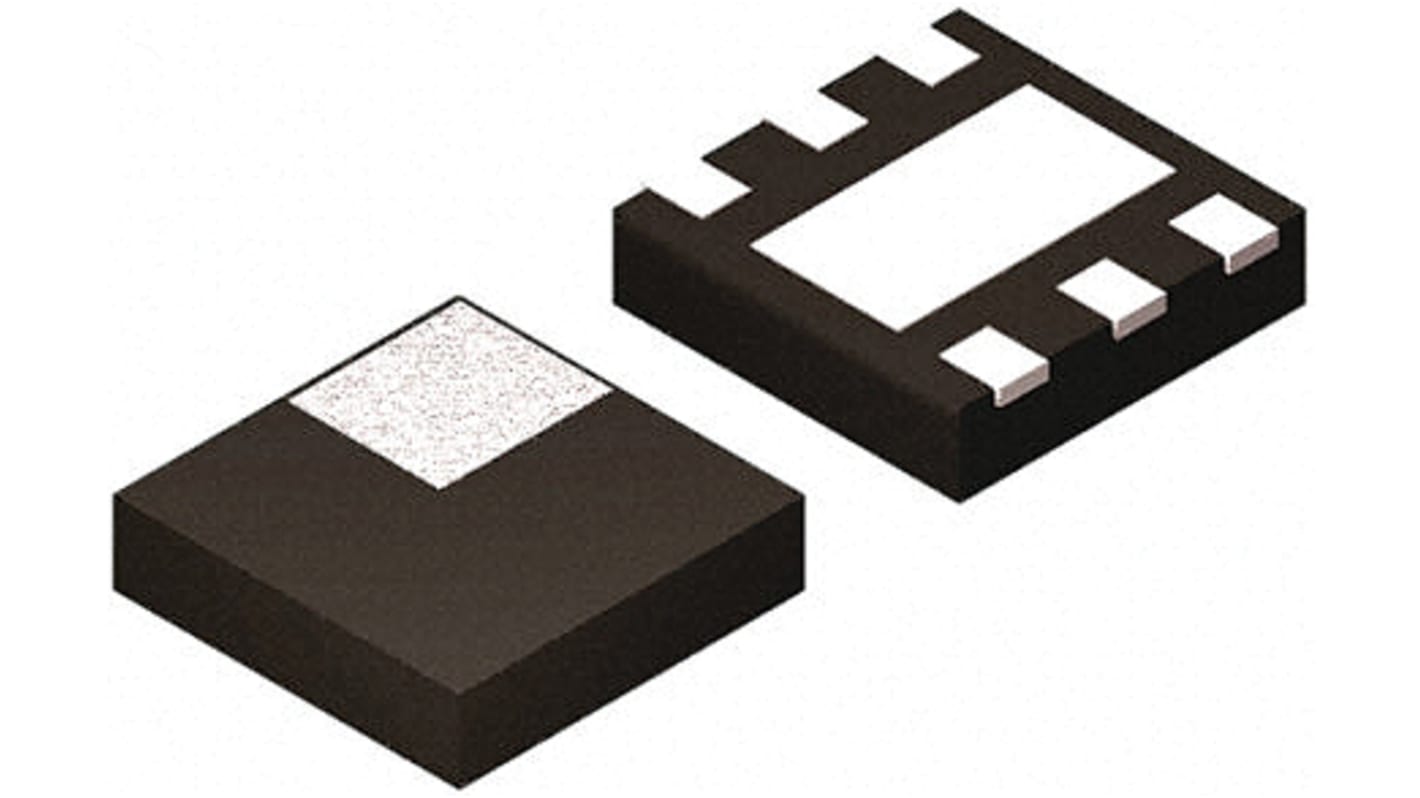

Texas Instruments TPS60151DRVT, Charge Pump 120mA 1.5 MHz 6-Pin, SON
- RS Stock No.:
- 162-8797
- Mfr. Part No.:
- TPS60151DRVT
- Brand:
- Texas Instruments
Available to back order for despatch when stock is available
Price Each (On a Reel of 250)
£0.661
(exc. VAT)
£0.793
(inc. VAT)
Units | Per unit | Per Reel* |
|---|---|---|
| 250 + | £0.661 | £165.25 |
*price indicative
- RS Stock No.:
- 162-8797
- Mfr. Part No.:
- TPS60151DRVT
- Brand:
- Texas Instruments
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
Step-Up Charge Pump Converters, Texas Instruments
Charge Pump Converters, Texas Instruments
The easy-to-use inductorless Charge Pump ICs from Texas Instruments offer a small-sized, simpler solution with high performance. The charge pump or switched-capacitor converter is an alternative solution to inductive DC-DC converters and delivers higher efficiency than Low Dropout (LDO) regulators.
Buck (Step-Down), Boost (Step-Up) and Inverting topologies
Specifications
Attribute | Value |
|---|---|
| Maximum Output Current | 120mA |
| Regulator Type | Charge Pump |
| Mounting Type | Surface Mount |
| Package Type | SON |
| Pin Count | 6 |
| Maximum Switching Frequency | 1.5 MHz |
| Dimensions | 2.1 x 2.1 x 0.75mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Height | 0.75mm |
| Length | 2.1mm |
| Width | 2.1mm |
