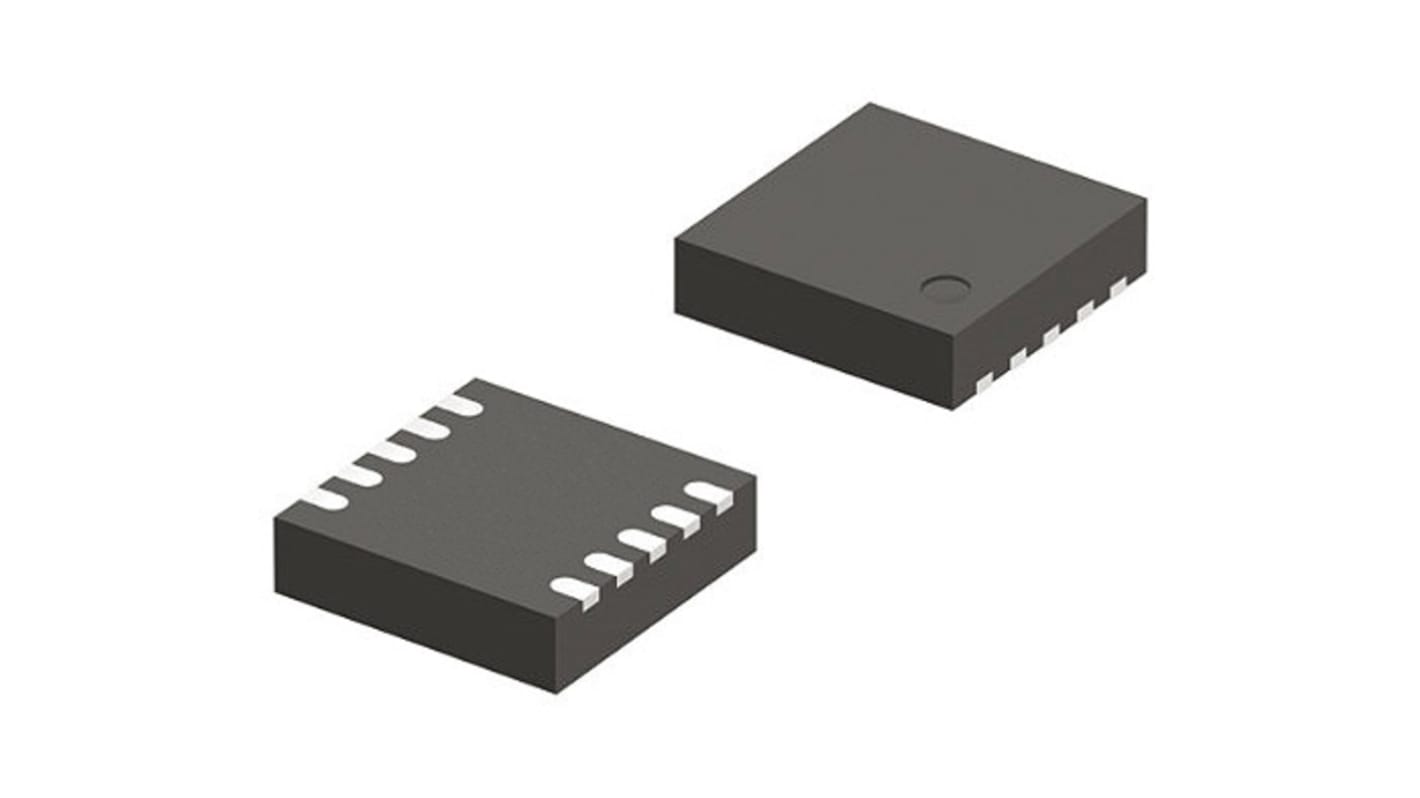

onsemi NIS5232MN1TXG 10-Pin 9 V 18 V
- RS Stock No.:
- 161-2647
- Mfr. Part No.:
- NIS5232MN1TXG
- Brand:
- onsemi
Bulk discount available
Subtotal (1 pack of 20 units)*
£12.42
(exc. VAT)
£14.90
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 20 - 180 | £0.621 | £12.42 |
| 200 - 480 | £0.536 | £10.72 |
| 500 + | £0.464 | £9.28 |
*price indicative
- RS Stock No.:
- 161-2647
- Mfr. Part No.:
- NIS5232MN1TXG
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | Voltage Controller | |
| Number of Channels | 1 | |
| Mount Type | Surface | |
| Pin Count | 10 | |
| Minimum Supply Voltage | 9V | |
| Maximum Supply Voltage | 18V | |
| Height | 0.9mm | |
| Standards/Approvals | RoHS | |
| Series | NIS5232 | |
| Width | 3 mm | |
| Length | 3mm | |
| Automotive Standard | No | |
| Maximum Operating Temperature | 150°C | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type Voltage Controller | ||
Number of Channels 1 | ||
Mount Type Surface | ||
Pin Count 10 | ||
Minimum Supply Voltage 9V | ||
Maximum Supply Voltage 18V | ||
Height 0.9mm | ||
Standards/Approvals RoHS | ||
Series NIS5232 | ||
Width 3 mm | ||
Length 3mm | ||
Automotive Standard No | ||
Maximum Operating Temperature 150°C | ||
The NIS5232 is a cost effective, resettable fuse which can greatly enhance the reliability of a hard drive or other circuit from both catastrophic and shutdown failures. It is designed to buffer the load device from excessive input voltage which can damage sensitive circuits. It also includes an Over voltage clamp circuit that limits the output voltage during transients but does not shut the unit down, thereby allowing the load circuit to continue operation. Two thermal options are available, latching and auto-retry.
Integrated Power Device
Power Device Thermally Protected
No External Current Shunt Required
9 V to 18 V Input Range
44 m Typical
Internal Charge Pump
Internal Under voltage Lockout Circuit
Internal Overvoltage Clamp
ESD Ratings: Human Body Model (HBM), 1500 VMachine Model (MM), 200 V
These Devices are PbFree and are RoHS Compliant
Applications
Mother Board Power Management
