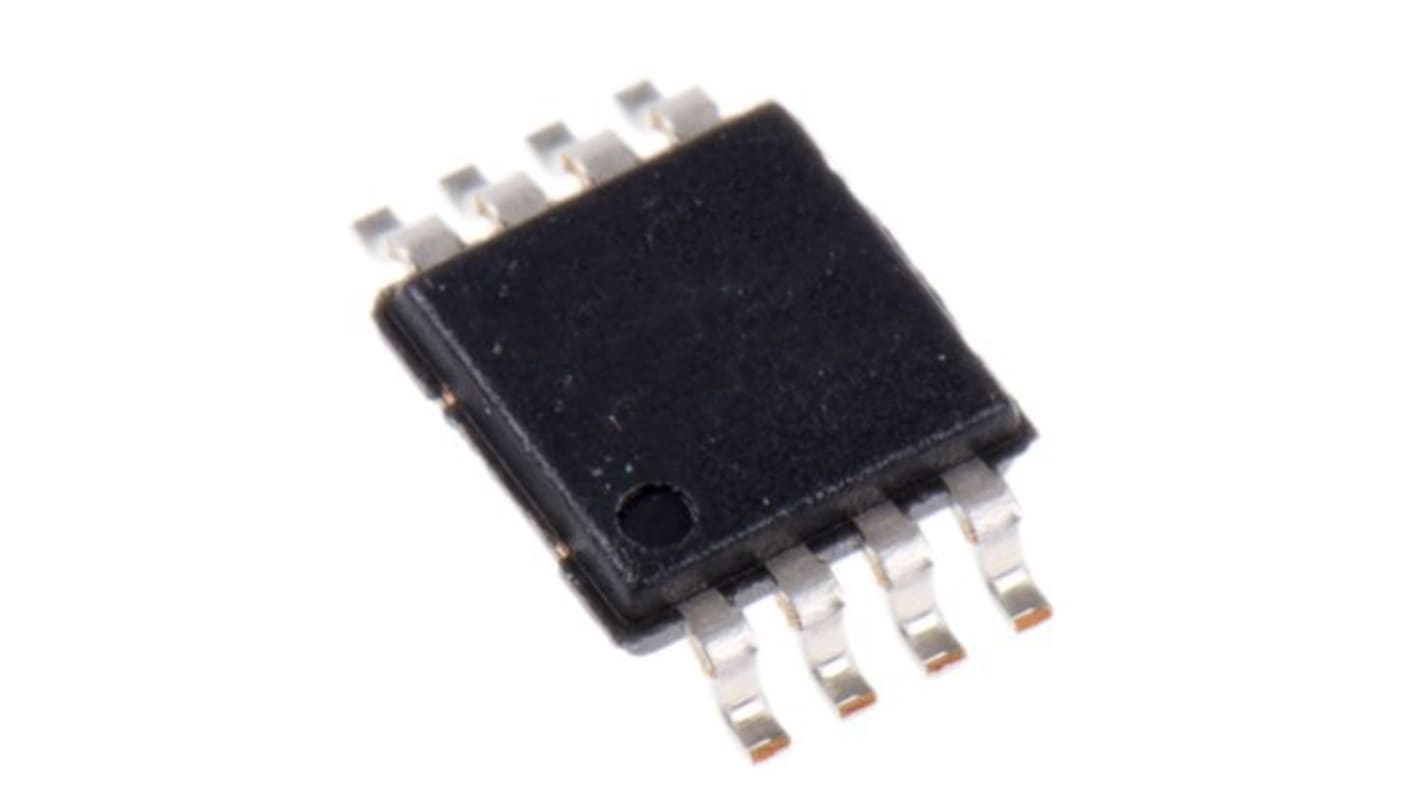

Renesas Electronics ISL6744AAUZ 8-Pin 9 V 20 V
- RS Stock No.:
- 264-0640
- Mfr. Part No.:
- ISL6744AAUZ
- Brand:
- Renesas Electronics
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 2 units)*
£5.30
(exc. VAT)
£6.36
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 928 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 8 | £2.65 | £5.30 |
| 10 - 48 | £2.39 | £4.78 |
| 50 - 98 | £2.245 | £4.49 |
| 100 - 248 | £1.945 | £3.89 |
| 250 + | £1.85 | £3.70 |
*price indicative
- RS Stock No.:
- 264-0640
- Mfr. Part No.:
- ISL6744AAUZ
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Product Type | Voltage Controller | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Minimum Supply Voltage | 9V | |
| Maximum Supply Voltage | 20V | |
| Height | 1.1mm | |
| Series | ISL6744A | |
| Length | 3mm | |
| Standards/Approvals | RoHS | |
| Maximum Operating Temperature | 105°C | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Product Type Voltage Controller | ||
Mount Type Surface | ||
Pin Count 8 | ||
Minimum Supply Voltage 9V | ||
Maximum Supply Voltage 20V | ||
Height 1.1mm | ||
Series ISL6744A | ||
Length 3mm | ||
Standards/Approvals RoHS | ||
Maximum Operating Temperature 105°C | ||
Automotive Standard No | ||
- COO (Country of Origin):
- MY
The Renesas Electronics voltage controllers is a low cost, primary side, double-ended controller intended for applications using full and half-bridge topologies for unregulated DC/DC converters. It is a voltage-mode PWM controller designed for half-bridge and full-bridge power supplies. It provides precise switching frequency control, adjustable soft-start, precise dead time control with dead times, and overcurrent shutdown.
Adjustable oscillator frequency
Internal over-temperature protection
Input undervoltage protection
