Teledyne LeCroy T3VNA3200 Benchtop 100kHz to 3.2GHz Vector Network Analyzer
- RS Stock No.:
- 220-2540
- Mfr. Part No.:
- T3VNA3200
- Brand:
- Teledyne LeCroy
Discontinued
- RS Stock No.:
- 220-2540
- Mfr. Part No.:
- T3VNA3200
- Brand:
- Teledyne LeCroy
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Teledyne LeCroy | |
| Form Factor | Benchtop | |
| Frequency Range | 100kHz to 3.2GHz | |
| Dynamic Range | 75dB | |
| Number of Test Ports | 2 | |
| Test Port Connector Type | N Type Female | |
| S-Parameters | S11, S21 | |
| Number of Sweep Points | 751 | |
| Trace Noise | 0.1dB | |
| Sweep Rate | 1ms to 3200s | |
| Time Domain Display Included | Yes | |
| Test Port Power | -5dBm | |
| IF Bandwidth | 10 kHz | |
| Number of Test Receivers | 1 | |
| Port Bias-Ts | No | |
| Plug Type | US/EU/UK | |
| Power Supply | 100V - 240V | |
| Select all | ||
|---|---|---|
Brand Teledyne LeCroy | ||
Form Factor Benchtop | ||
Frequency Range 100kHz to 3.2GHz | ||
Dynamic Range 75dB | ||
Number of Test Ports 2 | ||
Test Port Connector Type N Type Female | ||
S-Parameters S11, S21 | ||
Number of Sweep Points 751 | ||
Trace Noise 0.1dB | ||
Sweep Rate 1ms to 3200s | ||
Time Domain Display Included Yes | ||
Test Port Power -5dBm | ||
IF Bandwidth 10 kHz | ||
Number of Test Receivers 1 | ||
Port Bias-Ts No | ||
Plug Type US/EU/UK | ||
Power Supply 100V - 240V | ||
- COO (Country of Origin):
- CN

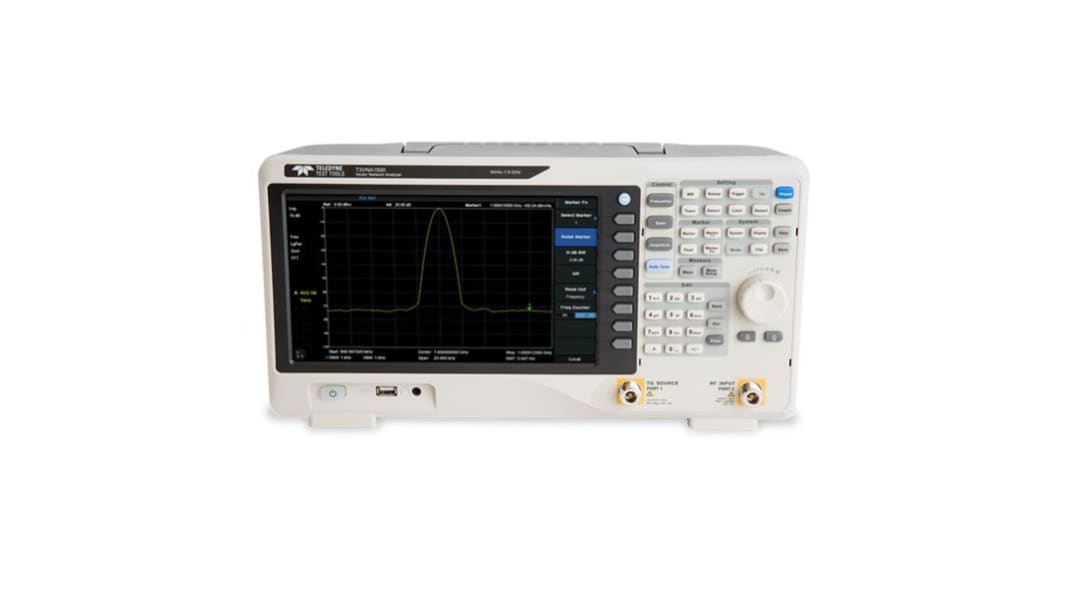

Teledyne LeCroy T3VNA3200 Desktop Dual Vector Network/Spectrum Analyser, 9 kHz - 3.2 GHz
The Teledyne Test Tools T3VNA3200 Vector Network Analyser has a Vector Network Analysis frequency range of 100 kHz up to a maximum of 3.2 GHz and a Spectrum Analysis frequency range from 9 kHz up to a maximum of 3.2 GHz. The small footprint and easy user interface is augmented by a high performance specification with many advanced measurement functions and capabilities.
Features & Benefits
156 dBm/Hz Displayed Average Noise Level (Typ.)
-98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
Total Amplitude Accuracy < 1.2 dB
Distance to fault capability using VNA time domain analysis as standard
Calibration and Utility Kits as standard
Standard Preamplifier
Built-in Advanced Measurement capability as standard (CHP, ACPR, OBW, CNR, TOI, etc)
10.1 lnch WVGA (1024 x 600) Display
1 Hz Minimum Resolution Bandwidth (RBW)
All-Digital IF Technology
-98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
Total Amplitude Accuracy < 1.2 dB
Distance to fault capability using VNA time domain analysis as standard
Calibration and Utility Kits as standard
Standard Preamplifier
Built-in Advanced Measurement capability as standard (CHP, ACPR, OBW, CNR, TOI, etc)
10.1 lnch WVGA (1024 x 600) Display
1 Hz Minimum Resolution Bandwidth (RBW)
All-Digital IF Technology
