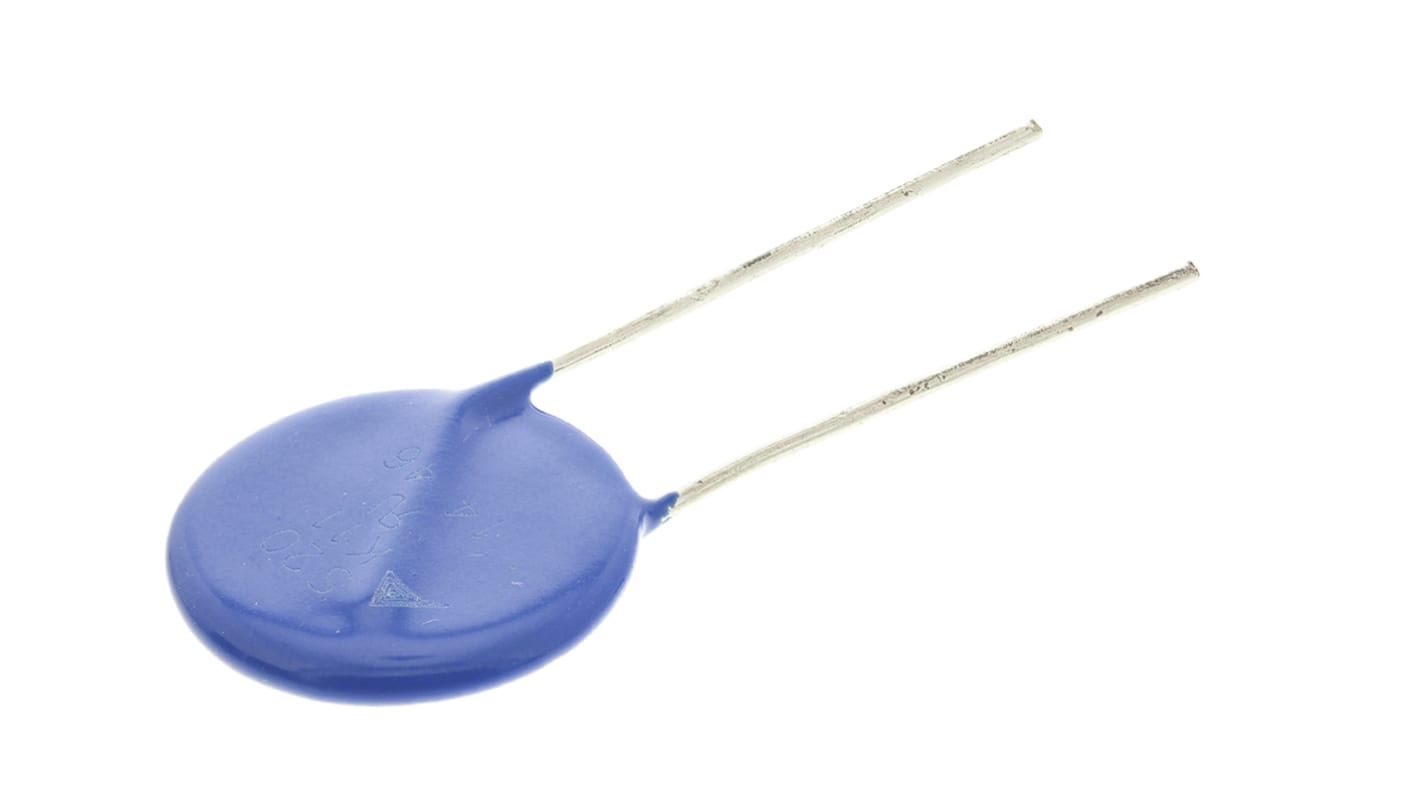

EPCOS, Standard Metal Oxide Varistor 2.3nF 20A, Clamping 36V, Varistor 18V
- RS Stock No.:
- 289-7547
- Mfr. Part No.:
- B72220S0110K101
- Brand:
- EPCOS
Bulk discount available
Subtotal (1 pack of 5 units)*
£3.73
(exc. VAT)
£4.475
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1,420 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £0.746 | £3.73 |
| 50 - 95 | £0.57 | £2.85 |
| 100 - 245 | £0.438 | £2.19 |
| 250 - 495 | £0.416 | £2.08 |
| 500 + | £0.366 | £1.83 |
*price indicative
- RS Stock No.:
- 289-7547
- Mfr. Part No.:
- B72220S0110K101
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Varistor Voltage | 18V | |
| Maximum AC Voltage Rating | 11V | |
| Maximum DC Voltage Rating | 14V | |
| Clamping Voltage | 36V | |
| Clamping Current | 20A | |
| Material | Metal | |
| Energy | 10J | |
| Series | Standard | |
| Diameter | 21.5mm | |
| Maximum Surge Current | 2000A | |
| Capacitance | 2.3nF | |
| Thickness | 4.5mm | |
| Dimensions | 21.5 (Dia.) x 4.5mm | |
| Lead Pitch | 10mm | |
Select all | ||
|---|---|---|
Brand EPCOS | ||
Varistor Voltage 18V | ||
Maximum AC Voltage Rating 11V | ||
Maximum DC Voltage Rating 14V | ||
Clamping Voltage 36V | ||
Clamping Current 20A | ||
Material Metal | ||
Energy 10J | ||
Series Standard | ||
Diameter 21.5mm | ||
Maximum Surge Current 2000A | ||
Capacitance 2.3nF | ||
Thickness 4.5mm | ||
Dimensions 21.5 (Dia.) x 4.5mm | ||
Lead Pitch 10mm | ||
Metal Oxide Varistors Standard Series
Standard radial epoxy-coated MOV with tinned-copper leads.
Tinned copper wire leads with a ceramic body coated with epoxy resin
Rated for surge current (8//20 μs) and for energy (2ms)
Rated for surge current (8//20 μs) and for energy (2ms)
Approvals
UL, CSA, VDE
