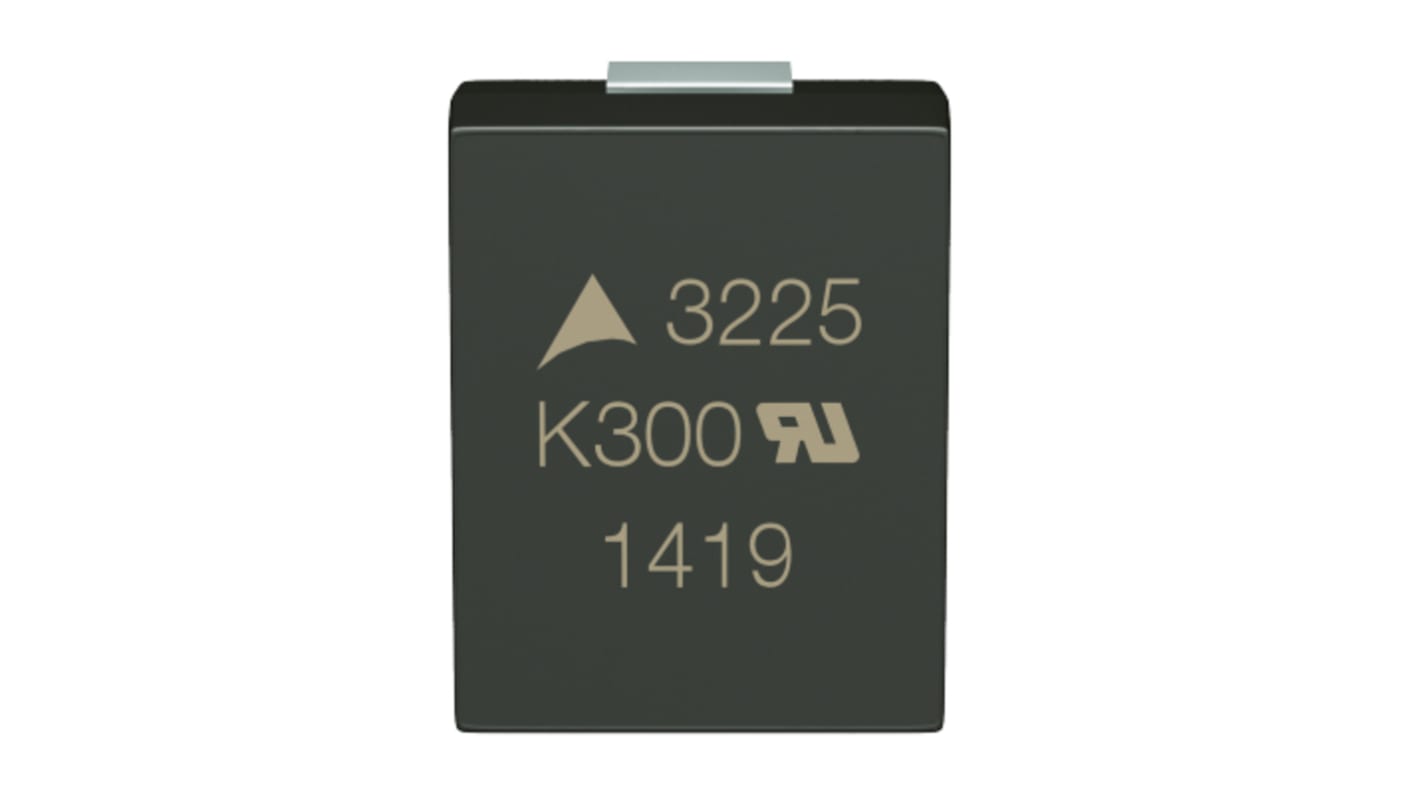

EPCOS, Standard Varistor 95 pF 360 A, Clamping 775 V, Varistor 18 to 470 V, 1210
- RS Stock No.:
- 138-9318
- Mfr. Part No.:
- B72650M0141K072
- Brand:
- EPCOS
Bulk discount available
Subtotal (1 bag of 5 units)*
£5.10
(exc. VAT)
£6.10
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 5 - 45 | £1.02 | £5.10 |
| 50 - 95 | £0.958 | £4.79 |
| 100 - 245 | £0.906 | £4.53 |
| 250 - 495 | £0.824 | £4.12 |
| 500 + | £0.758 | £3.79 |
*price indicative
- RS Stock No.:
- 138-9318
- Mfr. Part No.:
- B72650M0141K072
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Product Type | Varistor | |
| Varistor Voltage | 18 to 470 V | |
| Clamping Voltage VC | 775V | |
| Packaging | Tape & Reel | |
| Clamping Current | 360A | |
| Mount Type | Surface | |
| Series | Standard | |
| Maximum AC Voltage | 300V ac | |
| Maximum DC Voltage | 385V dc | |
| Maximum Surge Current | 400A | |
| Capacitance | 95pF | |
| Minimum Operating Temperature | -40°C | |
| Length | 8mm | |
| Maximum Operating Temperature | 85°C | |
| Termination Style | Tinned Copper Alloy | |
| Depth | 6.3mm | |
| Thickness | 4.5mm | |
| Standards/Approvals | IEC 60068-2-58, UL, IEC 60068-2-20, RoHS, JEDEC J-STD-020D, CECC 00802, CSA | |
| Package/Case | 1210 | |
| Automotive Standard | No | |
| Energy Rating | 23J | |
| Select all | ||
|---|---|---|
Brand EPCOS | ||
Product Type Varistor | ||
Varistor Voltage 18 to 470 V | ||
Clamping Voltage VC 775V | ||
Packaging Tape & Reel | ||
Clamping Current 360A | ||
Mount Type Surface | ||
Series Standard | ||
Maximum AC Voltage 300V ac | ||
Maximum DC Voltage 385V dc | ||
Maximum Surge Current 400A | ||
Capacitance 95pF | ||
Minimum Operating Temperature -40°C | ||
Length 8mm | ||
Maximum Operating Temperature 85°C | ||
Termination Style Tinned Copper Alloy | ||
Depth 6.3mm | ||
Thickness 4.5mm | ||
Standards/Approvals IEC 60068-2-58, UL, IEC 60068-2-20, RoHS, JEDEC J-STD-020D, CECC 00802, CSA | ||
Package/Case 1210 | ||
Automotive Standard No | ||
Energy Rating 23J | ||
SMD disk varistors are disk shaped varistors that are encapsulated in a plastic housing. They are suitable for SMD assembly. The encapsulation is MADE of flame-retardant material
Electrical equivalents to leaded types SIOV-S05/S07
Operating voltage up to 300 VRMS
SMD plastic package
RoHS-compatible
Suitable for lead-free soldering
UL approved
CSA approved (types with voltages higher than 130 VRMS)
PSpice models available
