TDK, Standard Metal Oxide Varistor 13 nF 20 A, Clamping 65 V, Varistor 33 V
- RS Stock No.:
- 204-1974
- Distrelec Article No.:
- 304-28-780
- Mfr. Part No.:
- B72220S0200K101
- Brand:
- TDK
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
£5.15
(exc. VAT)
£6.20
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 195 unit(s) shipping from 01 June 2026
- Plus 225 unit(s) shipping from 01 June 2026
- Plus 5 unit(s) shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £1.03 | £5.15 |
| 50 - 245 | £0.786 | £3.93 |
| 250 - 495 | £0.622 | £3.11 |
| 500 + | £0.606 | £3.03 |
*price indicative
- RS Stock No.:
- 204-1974
- Distrelec Article No.:
- 304-28-780
- Mfr. Part No.:
- B72220S0200K101
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Varistor Voltage | 33 V | |
| Product Type | Metal Oxide Varistor | |
| Packaging | Bulk | |
| Clamping Voltage VC | 65V | |
| Clamping Current | 20A | |
| Series | Standard | |
| Maximum AC Voltage | 20V ac | |
| Diameter | 21.5mm | |
| Maximum Surge Current | 2000A | |
| Maximum DC Voltage | 26V dc | |
| Capacitance | 13nF | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Thickness | 5.1mm | |
| Standards/Approvals | VDE, UL, IEC, CSA, CECC | |
| Lead Pitch | 10mm | |
| Automotive Standard | No | |
| Energy Rating | 18J | |
| Select all | ||
|---|---|---|
Brand TDK | ||
Varistor Voltage 33 V | ||
Product Type Metal Oxide Varistor | ||
Packaging Bulk | ||
Clamping Voltage VC 65V | ||
Clamping Current 20A | ||
Series Standard | ||
Maximum AC Voltage 20V ac | ||
Diameter 21.5mm | ||
Maximum Surge Current 2000A | ||
Maximum DC Voltage 26V dc | ||
Capacitance 13nF | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Thickness 5.1mm | ||
Standards/Approvals VDE, UL, IEC, CSA, CECC | ||
Lead Pitch 10mm | ||
Automotive Standard No | ||
Energy Rating 18J | ||
Metal Oxide Varistors Standard Series

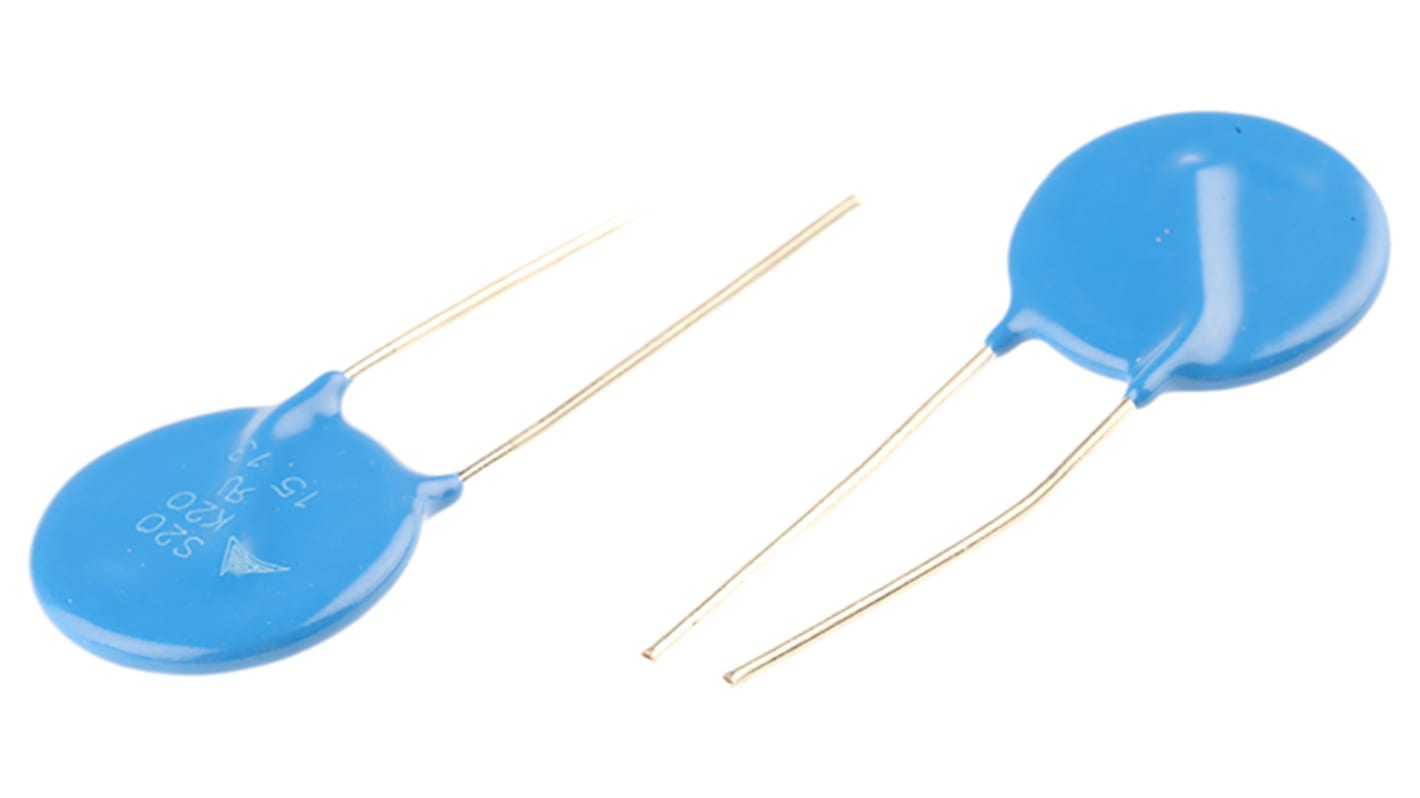

Standard radial epoxy-coated MOV with tinned-copper leads.
Tinned copper wire leads with a ceramic body coated with epoxy resin
Rated for surge current (8//20 μs) and for energy (2ms)
Approvals
UL, CSA, VDE
