SMC Pressure Switch -100 kPa to 500 kPa
- RS Stock No.:
- 844-4669
- Mfr. Part No.:
- PSE543-N01
- Brand:
- SMC
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£66.25
(exc. VAT)
£79.50
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 1 unit(s) shipping from 30 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £66.25 |
| 5 + | £63.86 |
*price indicative
- RS Stock No.:
- 844-4669
- Mfr. Part No.:
- PSE543-N01
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pressure Switch | |
| Minimum Operating Pressure | -100kPa | |
| Port Size | 1/8 in | |
| Current | 15mA | |
| Suitable Medias | Non-Corrosive Gas, Air, Gas | |
| Pressure Type | Compound | |
| Voltage | 24V dc | |
| Analogue Output | 1/5 V | |
| Series | PSE | |
| Maximum Operating Pressure | 500 kPa | |
| Port Gender | Male/Female | |
| Minimum Operating Temperature | 0°C | |
| Connection Thread Standard | NPT | |
| Maximum Operating Temperature | 50°C | |
| Height | 24.4mm | |
| Standards/Approvals | RoHS, CE | |
| Hazardous Area Certification | No | |
| IP Rating | IP40 | |
| LED Indicator | Yes | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pressure Switch | ||
Minimum Operating Pressure -100kPa | ||
Port Size 1/8 in | ||
Current 15mA | ||
Suitable Medias Non-Corrosive Gas, Air, Gas | ||
Pressure Type Compound | ||
Voltage 24V dc | ||
Analogue Output 1/5 V | ||
Series PSE | ||
Maximum Operating Pressure 500 kPa | ||
Port Gender Male/Female | ||
Minimum Operating Temperature 0°C | ||
Connection Thread Standard NPT | ||
Maximum Operating Temperature 50°C | ||
Height 24.4mm | ||
Standards/Approvals RoHS, CE | ||
Hazardous Area Certification No | ||
IP Rating IP40 | ||
LED Indicator Yes | ||
- COO (Country of Origin):
- JP

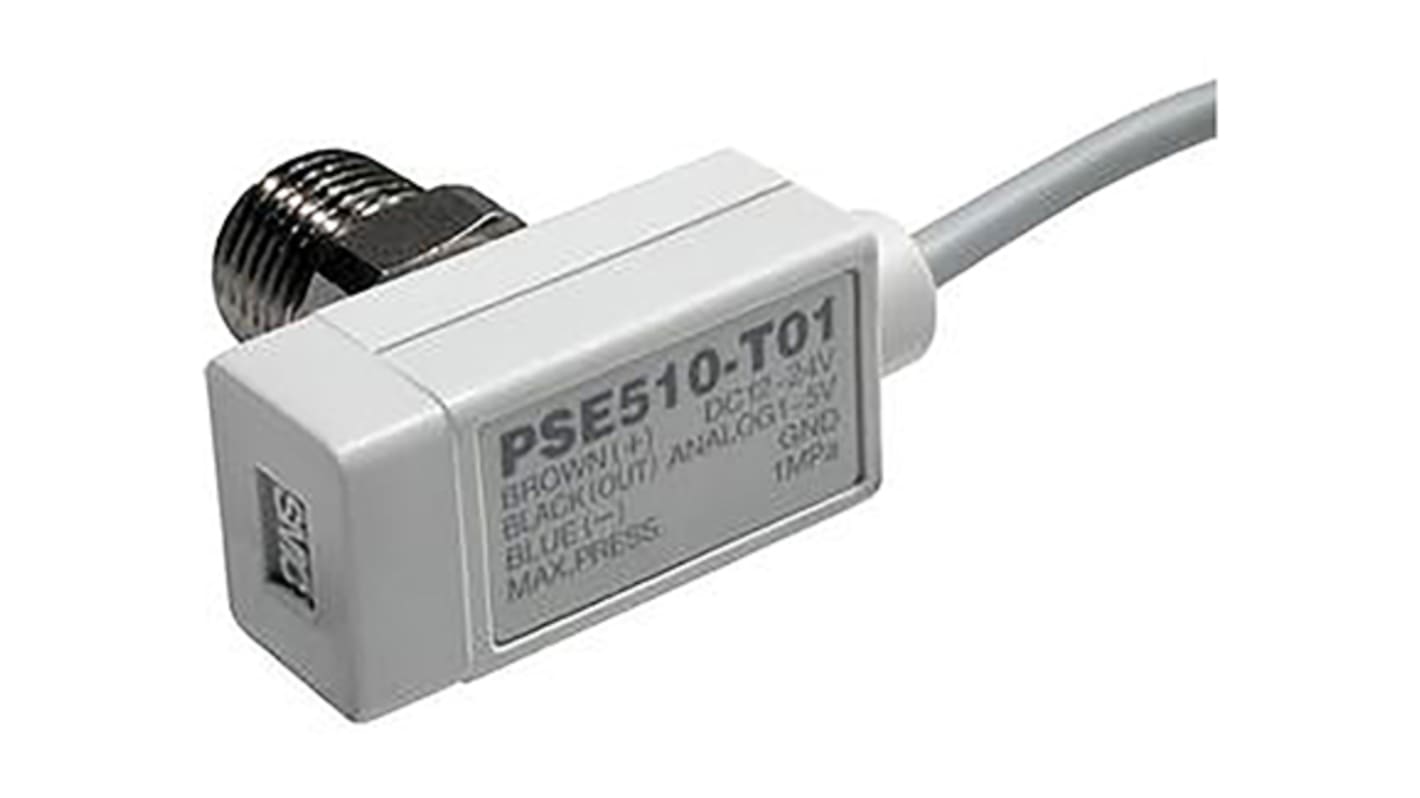

Compact Pneumatic Pressure Sensor
Series PSE digital pressure switches allow pressure to be controlled from a remote location. The PSE100 series controller has an easy to read, large, 4-digit LED display. Display units can be easily selected and changed. Series PSE510 is compact and lightweight, allowing the sensor to be mounted where needed. The use of stainless steel for all wetted parts (SUS630 for diaphragm, SUS304 for fitting) allows the PSE520 pressure sensor to be used in a wide variety of gas and fluid applications.
PSE series remote pressure and vacuum sensors have been expanded to include easy-to-use econ connectors from 3M or AMP.
