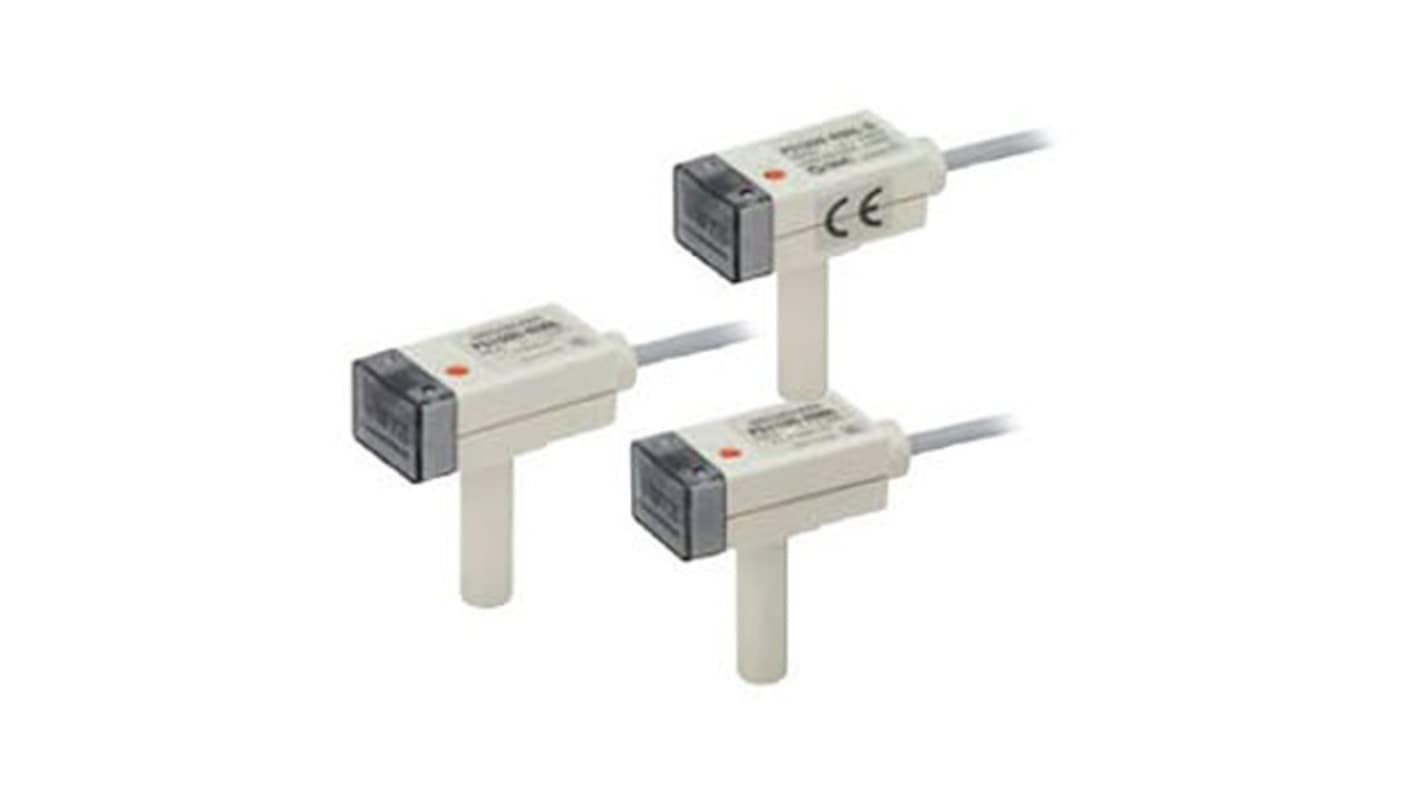

SMC Pressure Switch SPDT -100 kPa to 0 bar
- RS Stock No.:
- 458-545
- Mfr. Part No.:
- PS1200-R07L-Q
- Brand:
- SMC
Subtotal (1 unit)*
£73.09
(exc. VAT)
£87.71
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £73.09 |
*price indicative
- RS Stock No.:
- 458-545
- Mfr. Part No.:
- PS1200-R07L-Q
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pressure Switch | |
| Minimum Operating Pressure | -100kPa | |
| Port Size | 1/4 in | |
| Current | 20mA | |
| Switch Output | SPDT | |
| Contact Configuration | SPDT | |
| Suitable Medias | Non-Corrosive Gas, Gas, Air | |
| Pressure Type | Vacuum | |
| Mount Type | Panel | |
| Voltage | 24V | |
| Analogue Output | Yes | |
| Series | PS1200 | |
| Maximum Operating Pressure | 0 bar | |
| Connection Thread Standard | M5 x 0.8 | |
| Port Gender | Female | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS, CE | |
| Height | 70mm | |
| IP Rating | IP40 | |
| Hazardous Area Certification | NO | |
| LED Indicator | Yes | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pressure Switch | ||
Minimum Operating Pressure -100kPa | ||
Port Size 1/4 in | ||
Current 20mA | ||
Switch Output SPDT | ||
Contact Configuration SPDT | ||
Suitable Medias Non-Corrosive Gas, Gas, Air | ||
Pressure Type Vacuum | ||
Mount Type Panel | ||
Voltage 24V | ||
Analogue Output Yes | ||
Series PS1200 | ||
Maximum Operating Pressure 0 bar | ||
Connection Thread Standard M5 x 0.8 | ||
Port Gender Female | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS, CE | ||
Height 70mm | ||
IP Rating IP40 | ||
Hazardous Area Certification NO | ||
LED Indicator Yes | ||
- COO (Country of Origin):
- JP
The SMC Electronic pressure switch is designed specifically for vacuum applications, ensuring precision and reliability in monitoring residual pressure. This model boasts a robust range of features tailored to enhance functionality in various settings, particularly where air and non-corrosive gases are involved. Its lightweight construction and compact design facilitate easy installation, allowing for quick integration into existing systems. The intuitive pressure setting trimmer provides fine-tuned adjustment capabilities, empowering users to accurately set pressure thresholds as required. With enhanced visual indicators and compliance with CE standards, this pressure switch is not only efficient but also user-friendly, making it the perfect choice for professionals aiming for operational excellence.
Offers an impressive insulation resistance of 2 MΩ or more to ensure electrical safety
Equipped with a plug-in reducer port for flexible fitting options to suit your setup
Features a lightweight design at just 5 g, making it ideal for space-constrained applications
Meets stringent international standards for quality assurance, enabling trust in its performance
