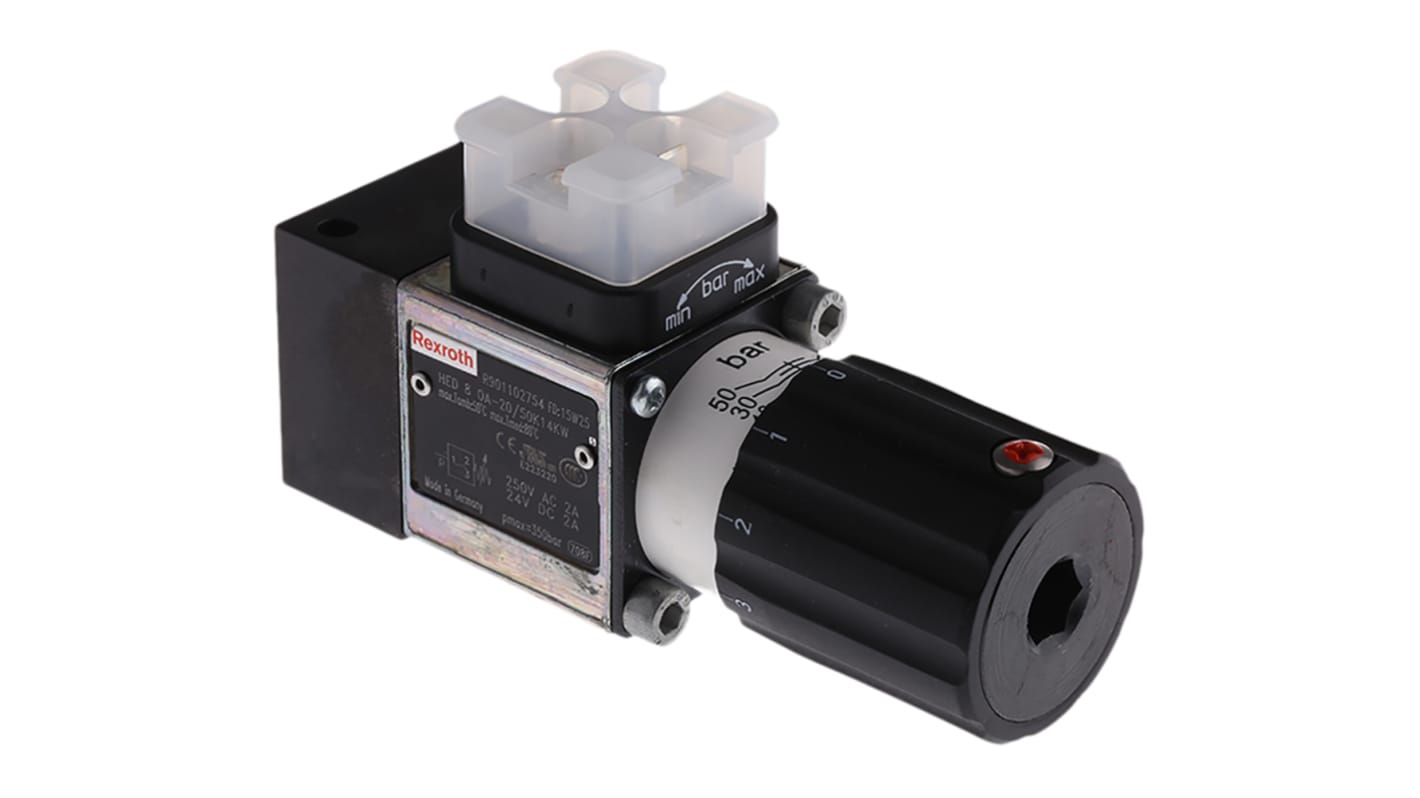

Bosch Rexroth Pressure Switch NC 2 bar to 50 bar
- RS Stock No.:
- 598-838
- Mfr. Part No.:
- R901102754
- Brand:
- Bosch Rexroth
Subtotal (1 unit)*
£351.03
(exc. VAT)
£421.24
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2 unit(s) shipping from 04 May 2026
- Plus 2 unit(s) shipping from 03 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £351.03 |
*price indicative
- RS Stock No.:
- 598-838
- Mfr. Part No.:
- R901102754
- Brand:
- Bosch Rexroth
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bosch Rexroth | |
| Product Type | Pressure Switch | |
| Minimum Operating Pressure | 2bar | |
| Port Size | 1/4 in | |
| Current | 2A | |
| Contact Configuration | NC | |
| Suitable Medias | Oil | |
| Pressure Type | Positive Pressure | |
| Voltage | 250V ac/dc | |
| Series | HED8 | |
| Maximum Operating Pressure | 50 bar | |
| Connection Thread Standard | G | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 80°C | |
| Width | 122mm | |
| Standards/Approvals | DIN, UL, EN, IEC | |
| Depth | 93mm | |
| Height | 40mm | |
| Hazardous Area Certification | NO | |
| IP Rating | IP65 | |
| LED Indicator | No | |
| Select all | ||
|---|---|---|
Brand Bosch Rexroth | ||
Product Type Pressure Switch | ||
Minimum Operating Pressure 2bar | ||
Port Size 1/4 in | ||
Current 2A | ||
Contact Configuration NC | ||
Suitable Medias Oil | ||
Pressure Type Positive Pressure | ||
Voltage 250V ac/dc | ||
Series HED8 | ||
Maximum Operating Pressure 50 bar | ||
Connection Thread Standard G | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 80°C | ||
Width 122mm | ||
Standards/Approvals DIN, UL, EN, IEC | ||
Depth 93mm | ||
Height 40mm | ||
Hazardous Area Certification NO | ||
IP Rating IP65 | ||
LED Indicator No | ||
RoHS Status: Exempt
Hydro-Electric
A range of switches which are designed to switch an electric circuit when the desired pressure is reached
May be used as a control unit or for monitoring pressure
To enable valve maintenance a seal kit suitable for all three valves is available
Pressure Switches
Pressure switches that allow microswitch operation once a pre-set pressure is reached. K and K3 Series incorporate a mechanical stop providing over-pressure protection for the spring and microswitch. Electrical connections for all models to DIN 43650.
