OPTIBELT Raw Edge Belt, belt section X10/ZX 788 mm, 750 mm Length
- RS Stock No.:
- 217-1127
- Mfr. Part No.:
- X10 X 772
- Brand:
- OPTIBELT
Get a bulk buy discount
Add 5 more to save £1.10
View bulk pricing optionsSubtotal (1 unit)*
£11.44
(exc. VAT)
£13.73
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Saving |
|---|---|---|
| 1 - 4 | £11.44 | - |
| 5 - 9 | £11.22 | £1.10 |
| 10 - 24 | £11.02 | £4.20 |
| 25 + | £10.77 | £16.75 |
*price indicative
- RS Stock No.:
- 217-1127
- Mfr. Part No.:
- X10 X 772
- Brand:
- OPTIBELT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OPTIBELT | |
| Belt Section | X10/ZX | |
| Product Type | Raw Edge Belt | |
| Sub Type | Raw Edge Belt | |
| Series | SUPER TX | |
| Datum Length | 772mm | |
| Belt Reference | ZX29 1/2 | |
| Belt Material | Rubber | |
| Cord Material | Rubber | |
| Minimum Operating Temperature | -30°C | |
| Outside Length | 788mm | |
| Belt Height | 6mm | |
| Belt Width | 10mm | |
| Maximum Operating Temperature | 90°C | |
| Standards/Approvals | DIN 2215, ISO 4184 | |
| Inside Length | 750mm | |
| Select all | ||
|---|---|---|
Brand OPTIBELT | ||
Belt Section X10/ZX | ||
Product Type Raw Edge Belt | ||
Sub Type Raw Edge Belt | ||
Series SUPER TX | ||
Datum Length 772mm | ||
Belt Reference ZX29 1/2 | ||
Belt Material Rubber | ||
Cord Material Rubber | ||
Minimum Operating Temperature -30°C | ||
Outside Length 788mm | ||
Belt Height 6mm | ||
Belt Width 10mm | ||
Maximum Operating Temperature 90°C | ||
Standards/Approvals DIN 2215, ISO 4184 | ||
Inside Length 750mm | ||

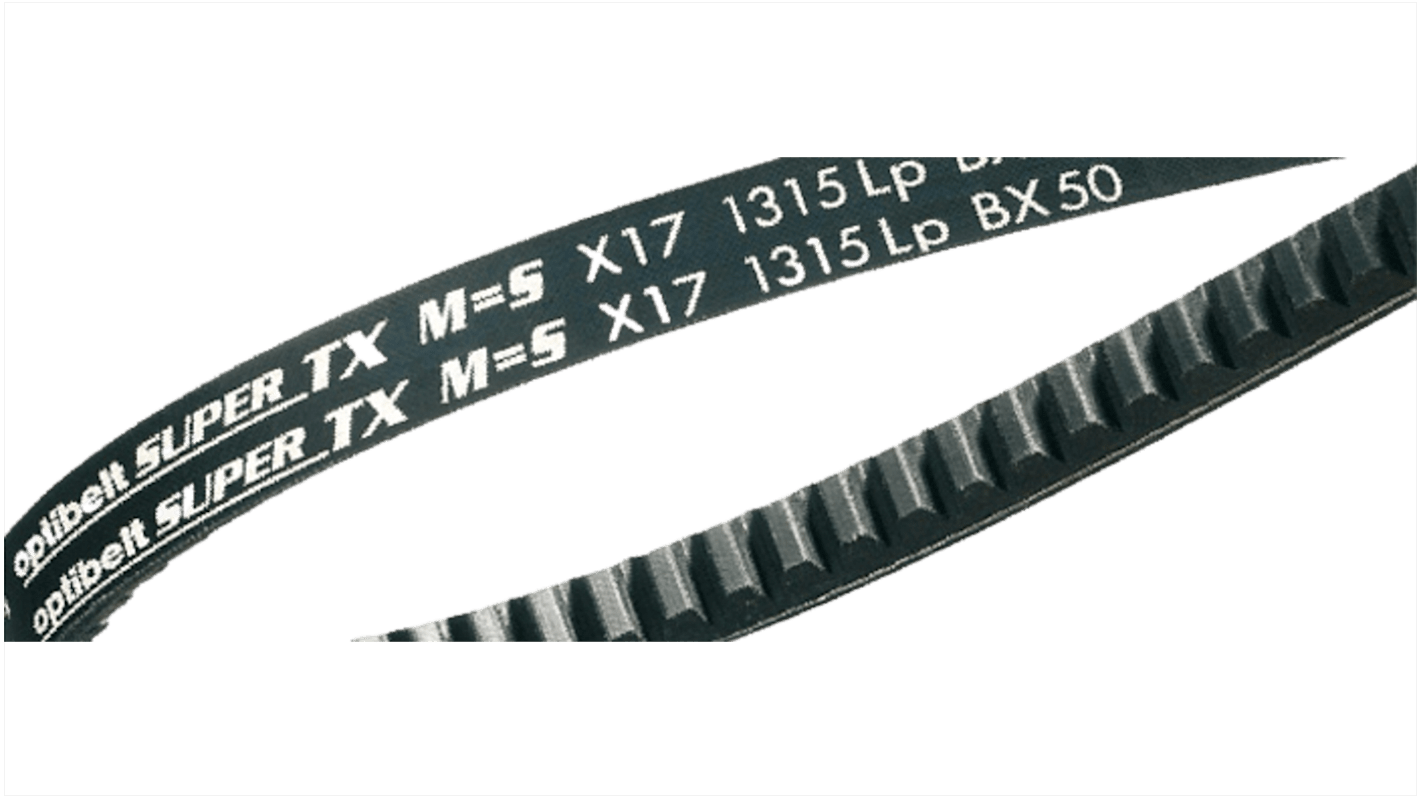

The OPTIBELT extraordinary flexibility of raw edge, moulded cogged SUPER TX V-belt enable extremely small pulley diameter to be used. It has high quality rubber compound in connection with low stretch tension cord guarantee a high power transmission capacity and an extended operational life. The-belt are always the right length for use in sets without measuring and guarantee a wide performance range and high efficiency.
Temperature range -30°C to +90°C
Low stretch
Electrically conductive
