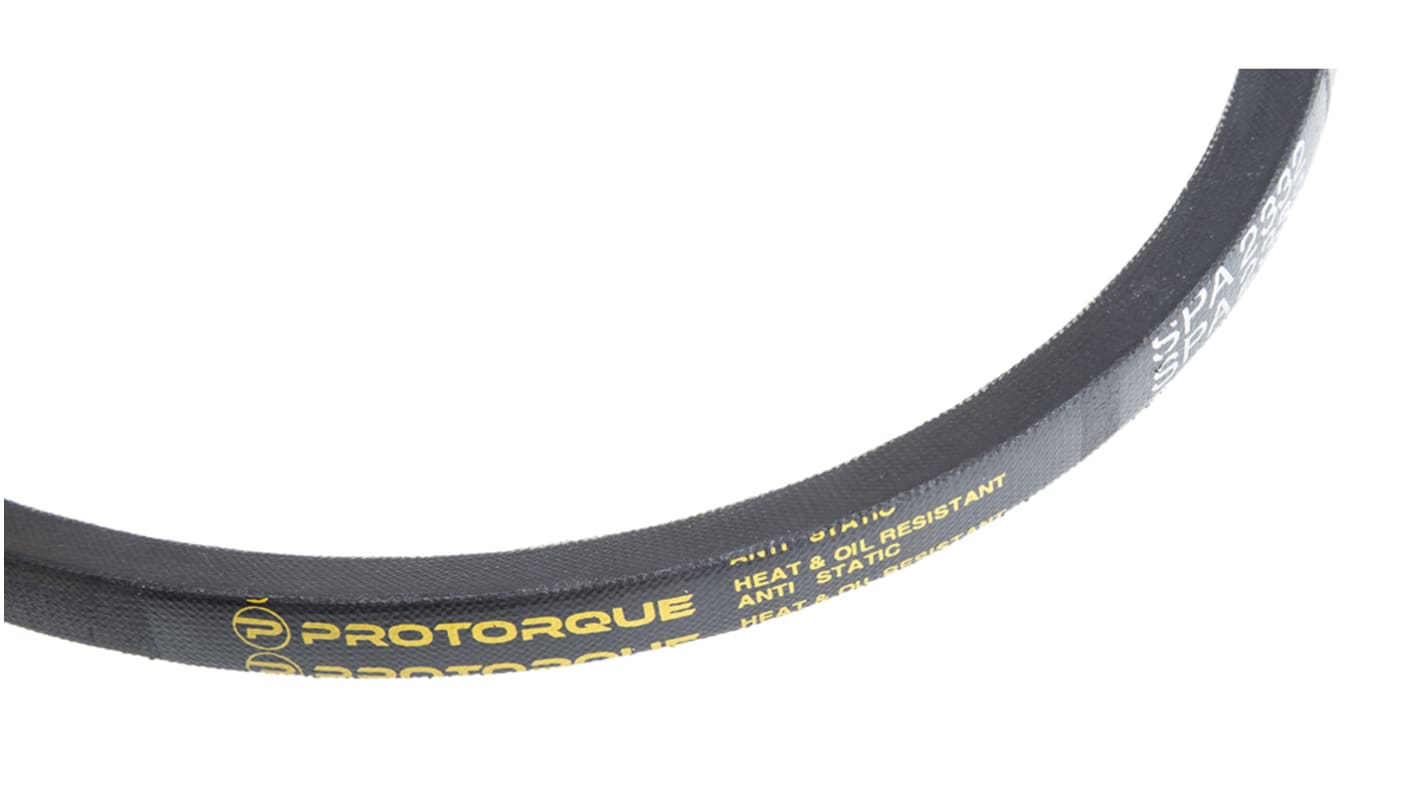

RS PRO Drive Belt, belt section SPA, 2332mm Length
- RS Stock No.:
- 173-9987
- Brand:
- RS PRO
8 In stock - FREE next working day delivery available
Added
Price Each
£11.80
(exc. VAT)
£14.16
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £11.80 |
| 5 - 9 | £11.57 |
| 10 - 24 | £11.33 |
| 25 + | £11.10 |
- RS Stock No.:
- 173-9987
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
High Performance Wedge Belts are designed to deliver as much as double the power of conventional V Belts. This makes them suitable for all industrial applications where space, weight and high horsepower capacity are important.
Deeper profile promotes higher power
Consistent length
Temperature operating range from -40 deg C to +70 deg C
Oil, heat and ozone resistant
Antistatic
Excellent abrasion and wear resistance
Consistent length
Temperature operating range from -40 deg C to +70 deg C
Oil, heat and ozone resistant
Antistatic
Excellent abrasion and wear resistance
Specifications
Attribute | Value |
|---|---|
| Length | 2332mm |
| Top Width | 12.7mm |
| Belt Section | SPA |
| Inside Length | 2287mm |
| Height | 10mm |
| Minimum Pulley Diameter | 90mm |
| Material | Rubber |
| Outer Length | 2350mm |
| Minimum Operating Temperature | -40°C |
| Datum Length | 2332mm |
| Maximum Operating Temperature | +70°C |
