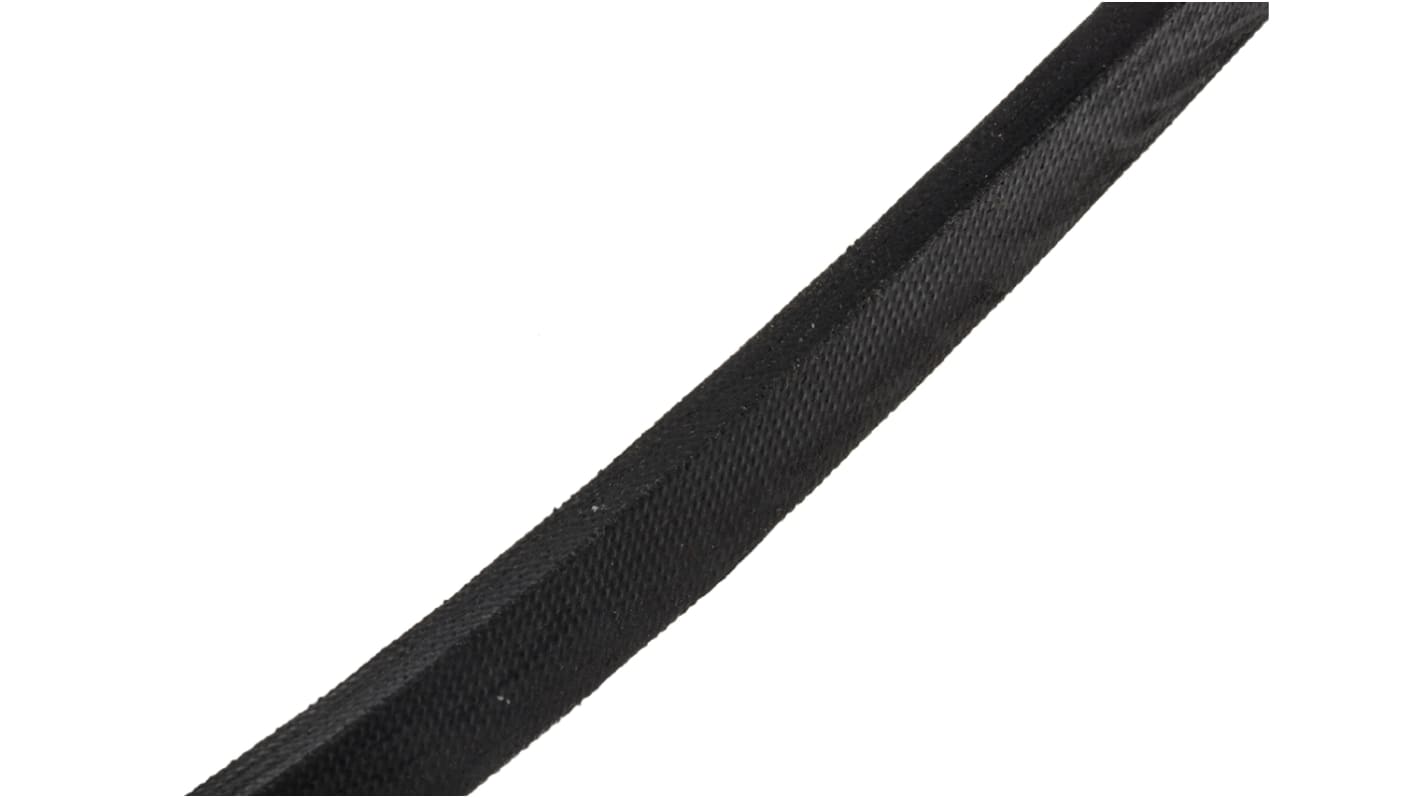

RS PRO Drive Belt, belt section SPZ, 1337mm Length
- RS Stock No.:
- 173-9974
- Brand:
- RS PRO
9 In stock - FREE next working day delivery available
Added
Price Each
£5.29
(exc. VAT)
£6.35
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £5.29 |
| 5 - 9 | £5.20 |
| 10 - 24 | £5.10 |
| 25 + | £4.99 |
- RS Stock No.:
- 173-9974
- Brand:
- RS PRO
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
High Performance Wedge Belts are designed to deliver as much as double the power of conventional V Belts. This makes them suitable for all industrial applications where space, weight and high horsepower capacity are important.
Deeper profile promotes higher power
Consistent length
Temperature operating range from -40 deg C to +70 deg C
Oil, heat and ozone resistant
Antistatic
Excellent abrasion and wear resistance
Consistent length
Temperature operating range from -40 deg C to +70 deg C
Oil, heat and ozone resistant
Antistatic
Excellent abrasion and wear resistance
Specifications
Attribute | Value |
|---|---|
| Length | 1337mm |
| Top Width | 9.7mm |
| Belt Section | SPZ |
| Inside Length | 1299mm |
| Height | 8mm |
| Minimum Pulley Diameter | 63mm |
| Material | Rubber |
| Minimum Operating Temperature | -40°C |
| Outer Length | 1275mm |
| Maximum Operating Temperature | +70°C |
| Datum Length | 1262mm |
