OPTIBELT Drive Belt, belt section SPZ, 900mm Length
- RS Stock No.:
- 136-7220
- Mfr. Part No.:
- SPZ 900
- Brand:
- OPTIBELT
Bulk discount available
Subtotal (1 unit)*
£7.24
(exc. VAT)
£8.69
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 70 unit(s) ready to ship
- Plus 187 unit(s) ready to ship from another location
- Plus 84 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £7.24 |
| 5 - 9 | £6.94 |
| 10 - 24 | £6.79 |
| 25 + | £6.64 |
*price indicative
- RS Stock No.:
- 136-7220
- Mfr. Part No.:
- SPZ 900
- Brand:
- OPTIBELT
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OPTIBELT | |
| Belt Section | SPZ | |
| Outer Length | 913mm | |
| Datum Length | 900mm | |
| Inside Length | 862mm | |
| Series | SK | |
| Top Width | 9.7mm | |
| Height | 8mm | |
| Material | Rubber | |
| Belt Type | Wedged Belt | |
| Minimum Pulley Diameter | 63mm | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -40°C | |
| Length | 900mm | |
Select all | ||
|---|---|---|
Brand OPTIBELT | ||
Belt Section SPZ | ||
Outer Length 913mm | ||
Datum Length 900mm | ||
Inside Length 862mm | ||
Series SK | ||
Top Width 9.7mm | ||
Height 8mm | ||
Material Rubber | ||
Belt Type Wedged Belt | ||
Minimum Pulley Diameter 63mm | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -40°C | ||
Length 900mm | ||
- COO (Country of Origin):
- RO

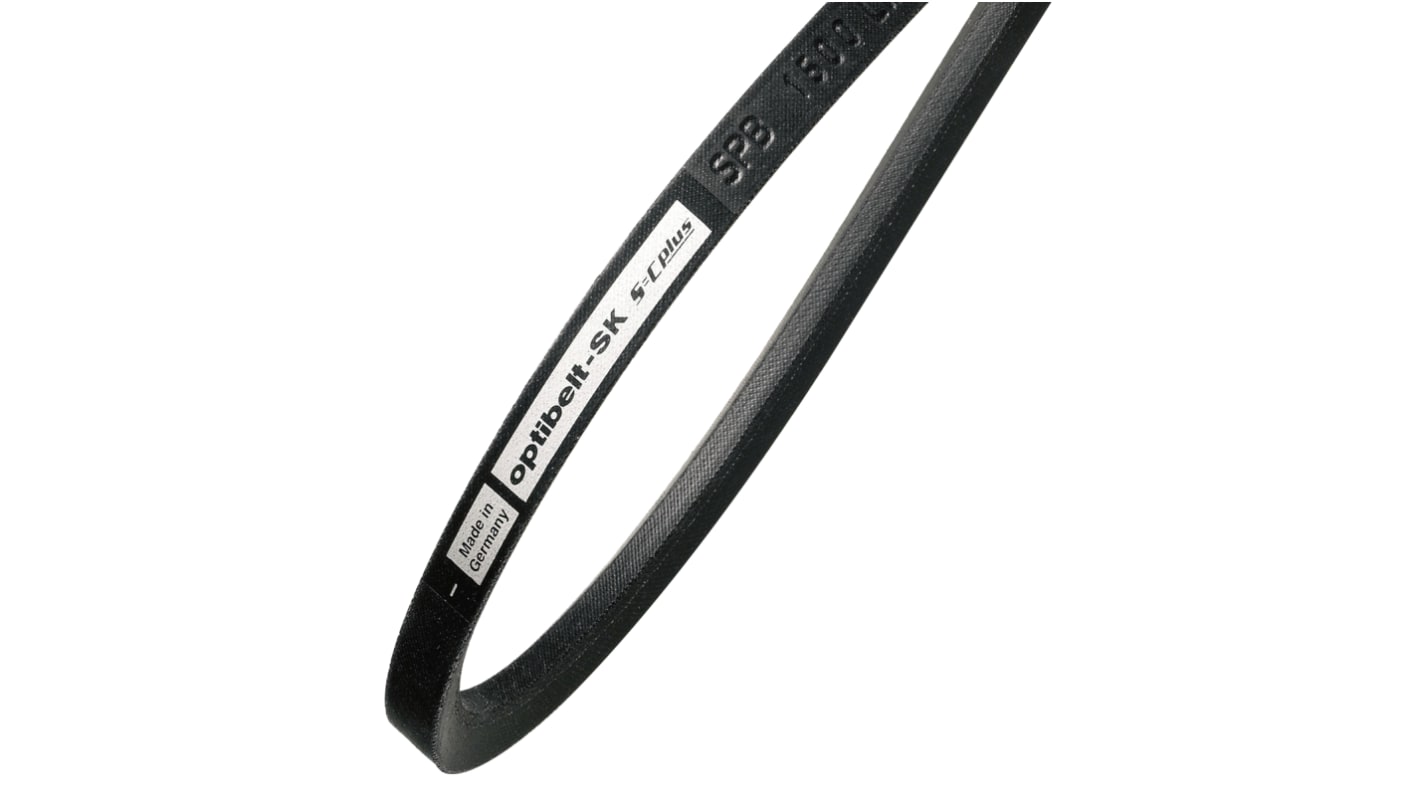

High Capacity Wedge Belts SK S=C PLUS
The wrapped SK series wedge belt from Optibelt has been specially designed for mechanical engineering. The belt transmits more power than a typical V-belt with a comparable top width.
The SK wedge belt has a space saving shape and delivers high performance and efficiency (approx. 97%).
The SK wedge belt has a space saving shape and delivers high performance and efficiency (approx. 97%).
Features and Benefits
• Wrapped wedge belts according to DIN/ISO/BS
• High performance
• Compact
• Low maintenance costs
• Sections: SPZ, SPA, SPB, SPC
Product Application Information
• Printing, plastic, textile and construction machinery
• Rotary centrifugal pumps
• Compressors
• Rotary printing presses
• Ventilators
The SK wedge belt is ideal for use in heavy mechanical engineering with high load requirements.
Optibelt
