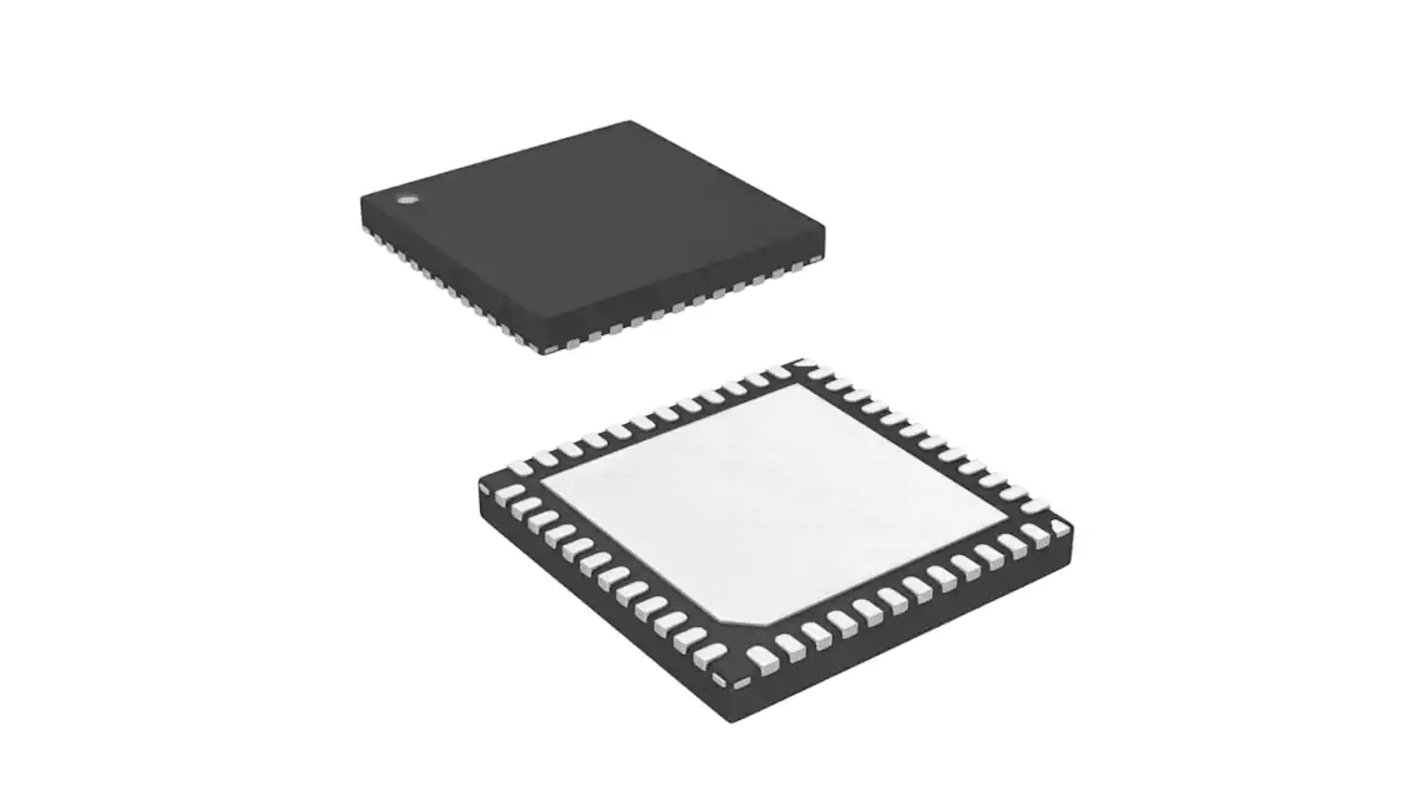

Renesas Electronics UPD720202K8-711-BAA-A, USB Controller, 1-Channel 12 Mbps, 3.6V, USB 3.0, 3 V, 48-Pin QFN
- RS Stock No.:
- 234-7164P
- Mfr. Part No.:
- UPD720202K8-711-BAA-A
- Brand:
- Renesas Electronics
Bulk discount available
Subtotal 10 units (supplied in a tray)*
£35.80
(exc. VAT)
£43.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 17 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 10 - 24 | £3.58 |
| 26 - 98 | £3.375 |
| 100 - 248 | £2.925 |
| 250 + | £2.77 |
*price indicative
- RS Stock No.:
- 234-7164P
- Mfr. Part No.:
- UPD720202K8-711-BAA-A
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Number of Transceivers | 1 | |
| Product Type | USB Controller | |
| Maximum Data Rate | 12Mbps | |
| Sub Type | USB Host Controller IC | |
| USB Specification | USB 3.0 | |
| ESD Protection | No | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Supply Voltage | 3V | |
| Mount Type | Surface | |
| Package Type | QFN | |
| Pin Count | 48 | |
| Supported Protocols | USB 3.0 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Series | UPD720202 | |
| Length | 7mm | |
| Height | 0.85mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Number of Transceivers 1 | ||
Product Type USB Controller | ||
Maximum Data Rate 12Mbps | ||
Sub Type USB Host Controller IC | ||
USB Specification USB 3.0 | ||
ESD Protection No | ||
Maximum Supply Voltage 3.6V | ||
Minimum Supply Voltage 3V | ||
Mount Type Surface | ||
Package Type QFN | ||
Pin Count 48 | ||
Supported Protocols USB 3.0 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Series UPD720202 | ||
Length 7mm | ||
Height 0.85mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
The Renesas Electronics USB host controller LSI compatible with the USB 3.0 and xHCI 1.0 specifications. This device reduce power consumption and offer a smaller package foot-print making them Ideal for designers who wish to add the USB 3.0 Interface to mobile computing devices such as laptops and notebook computers.
Supports USB debugging capability on all super speed ports
Supports USB legacy function
Compliant with PCI express base specification revision 2.0
Supports latency tolerance reporting ECN of PCI express specification
Supports express card TM standard rele
