- RS Stock No.:
- 228-3127
- Mfr. Part No.:
- FT4232HPQ-TRAY
- Brand:
- FTDI Chip
780 In stock - FREE next working day delivery available
Added
Price Each
£5.50
(exc. VAT)
£6.60
(inc. VAT)
Units | Per unit |
1 - 9 | £5.50 |
10 - 99 | £5.12 |
100 + | £4.99 |
- RS Stock No.:
- 228-3127
- Mfr. Part No.:
- FT4232HPQ-TRAY
- Brand:
- FTDI Chip
Legislation and Compliance
Product Details

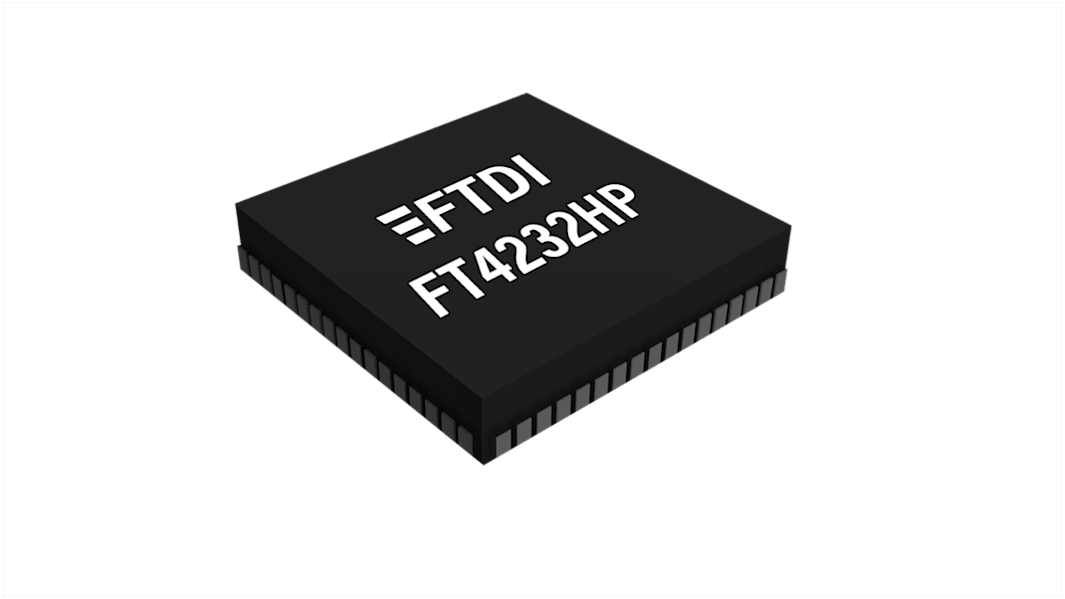

The FTDI Chip FT4233HP/FT4232HP is a Hi-Speed USB device with a Type-C/PD3.0 controller that fully supports the latest USB Type-C and Power Delivery (PD) standards enabling support for power negotiation with the ability to sink or source current to a USB host device. The USB bridge function delivers 4 independent channels compatible with the existing FT4232H – Quad Hi-speed USB to multipurpose UART/MPSSE solution.
Supports PD Specification 3.0
1 x USB PD 3.0 Port supports Dual Role Swap Function
Supports 5V3A, 9V3A, 12V3A, 15V3A, 20V3A and more PDOs as sink or source
Type-C/PD Physical Layer Protocol
PD policy engine using 32-bit RISC controller with 8kB data RAM and 48kB code ROM
PD mode configuration through external EEPROM
Options to use external MCU controlling PD policy through I2C interface
Up to 8 Configurable PD GPIO pins support
External MCU support through I2C bus
1 x USB PD 3.0 Port supports Dual Role Swap Function
Supports 5V3A, 9V3A, 12V3A, 15V3A, 20V3A and more PDOs as sink or source
Type-C/PD Physical Layer Protocol
PD policy engine using 32-bit RISC controller with 8kB data RAM and 48kB code ROM
PD mode configuration through external EEPROM
Options to use external MCU controlling PD policy through I2C interface
Up to 8 Configurable PD GPIO pins support
External MCU support through I2C bus
Specifications
Attribute | Value |
---|---|
Number of Transceivers | 4 |
Data Rate | 12Mbps |
IC Type | Controller IC |
Protocols Supported | USB 2.0 |
Power Supply Type | Single |
ESD Protection | Yes |
Typical Single Supply Voltage | 3.3 V |
Package Type | QFN-68 |
Pin Count | 68 |
