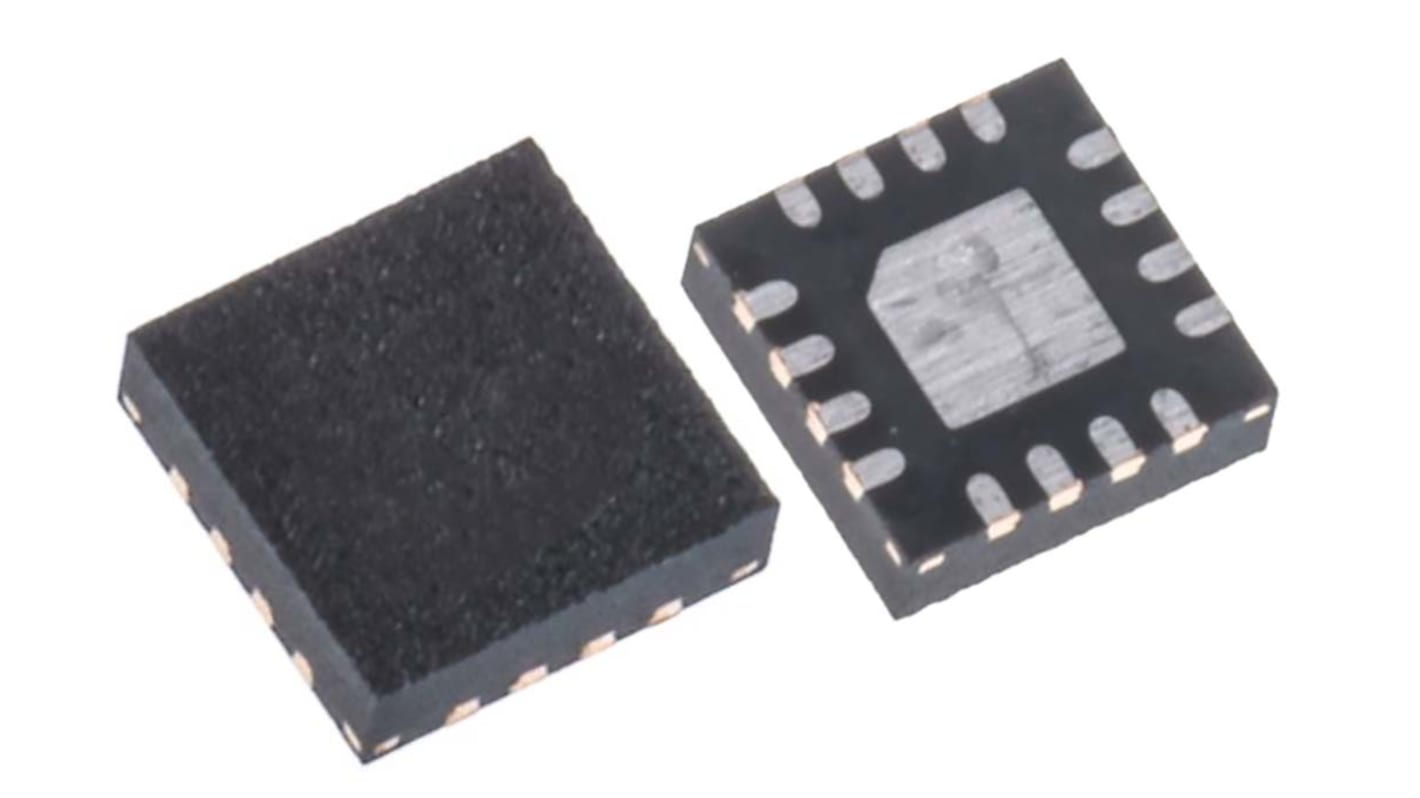

STMicroelectronics, USB Controller 400 kbps, 22 V, I2C, USB 2.0, USB Type C, 4.1 V, 16-Pin QFN

View all USB Interface ICs
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
203-3493
Mfr. Part No.:
STUSB4710AQ1TR
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Product Type

USB Controller

Maximum Data Rate

400kbps

USB Specification

USB Type C

Sub Type

Controller

Power Supply Type

Single

ESD Protection

Yes

Minimum Supply Voltage

4.1V

Maximum Supply Voltage

22V

Mount Type

Surface

Package Type

QFN

Pin Count

16

Supported Protocols

I2C, USB 2.0, USB Type C

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

105°C

Series

STUSB4710

Length

3mm

Height

0.65mm

Standards/Approvals

No

Width

3 mm

Automotive Standard

No

COO (Country of Origin):
CN
The STMicroelectronics STUSB4710 is a new family of USB power delivery controllers which is a stand-alone USB PD controller (with short-to-VBUS protection). It communicates over Type-C™ configuration channel pins (CC) to negotiate a given amount of power to be sourced to an inquiring consumer device. It also addresses provider/DFP devices such as notebooks, tablets and AC adapters. The controller device can handle any connections to a UFP or DRP without any MCU attachment support, from device attachment to power negotiation, including VBUS discharge and protections.

Fully compatible with USB Type-C™ rev 1.2 and USB PD rev 2.0

Certification test ID 1000125 (QFN24)

Has an integrated VBUS voltage monitoring

Consists of an internal and/or external VBUS discharge path
