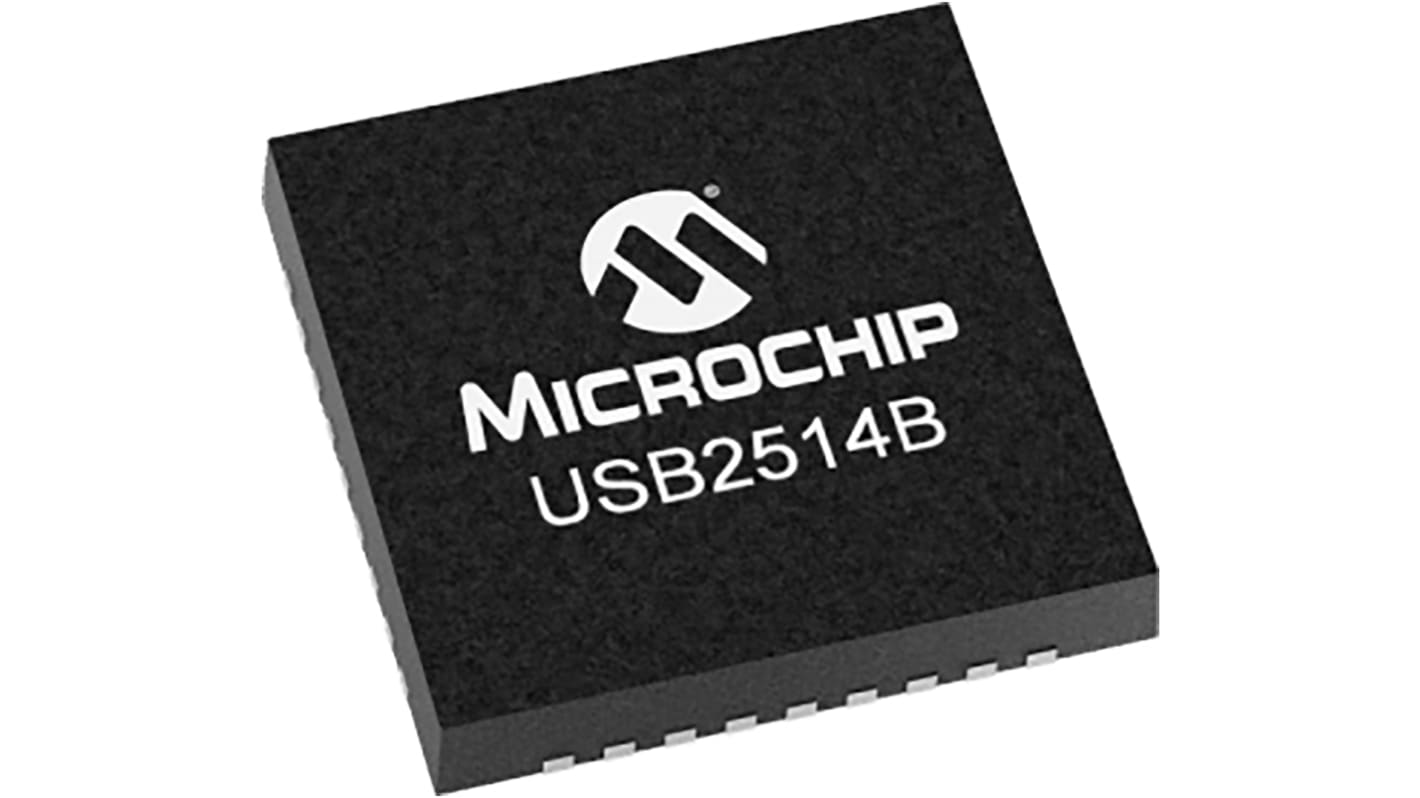

Microchip, USB Controller, 1-Channel, 3.6 V, I2C, USB 2.0, 3.3 V, 36-Pin QFN

View all USB Interface ICs
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
177-9700
Mfr. Part No.:
USB2514BI-AEZG-TR
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Number of Transceivers

1

Product Type

USB Controller

Sub Type

Controller

USB Specification

USB 2.0

Power Supply Type

Single

ESD Protection

Yes

Minimum Supply Voltage

3.3V

Maximum Supply Voltage

3.6V

Mount Type

Surface

Package Type

QFN

Pin Count

36

Minimum Operating Temperature

0°C

Supported Protocols

I2C, USB 2.0

Maximum Operating Temperature

85°C

Series

USB251

Standards/Approvals

No

Length

6.15mm

Width

6.15 mm

Height

0.95mm

Automotive Standard

No

COO (Country of Origin):
CN
Microchip's USB251xB is a family of versatile, cost-effective, and power-efficient USB 2.0 hub controllers. Leveraging Microchip's innovative MultiTRAK™ technology that delivers industry-leading data throughput in mixed-speed USB environments, the USB251xB family is a USB port expansion solution for applications that demand ultra low power and a small footprint without compromising on performance. Well-suited for consumer and mobile applications, all members of the USB251xB family are available in a space-saving package.

High performance, ultra low-power, small footprint hub controller IC

Enhanced OEM configuration options available through either a single serial I2C® EEPROM, or SMBus slave port

MultiTRAK - High-performance multiple transaction translator which provides one transaction translator per port

PortMap - Flexible port mapping and disable sequencing

PortSwap - Programmable USB differential-pair pin locations ease PCB design by aligning USB signal lines directly to connectors
