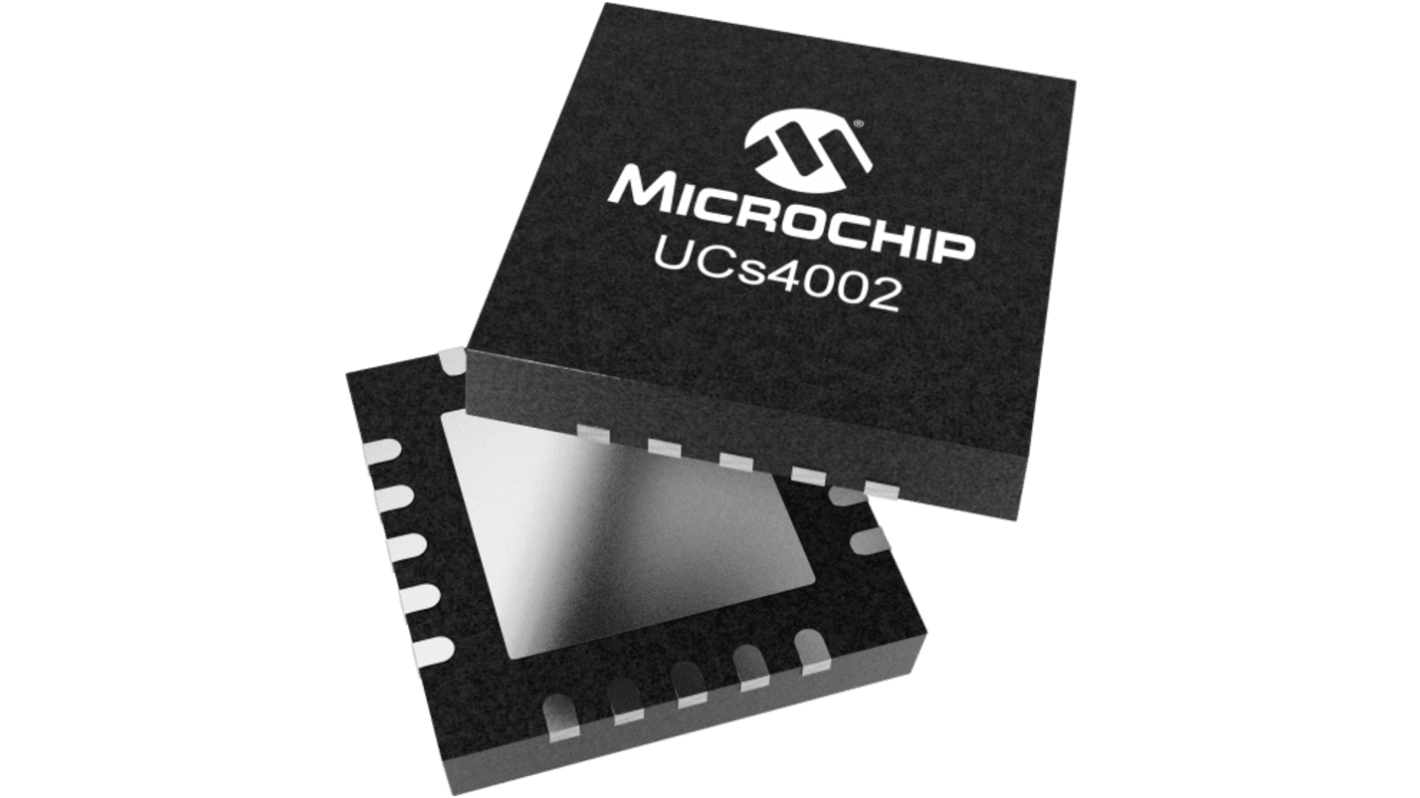

Microchip UCS4002-E/6N, USB Hub, USB C, 24 V DC, 20-Pin VQFN

View all USB Interface ICs
Bulk discount available

Subtotal (1 bag of 5 units)*

£2.98

(exc. VAT)

£3.575

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1,270 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Bag*
5 - 45£0.596£2.98
50 - 95£0.566£2.83
100 +£0.524£2.62

*price indicative

RS Stock No.:
352-286
Mfr. Part No.:
UCS4002-E/6N
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Protocols Supported

USB C

IC Type

USB Interface IC

Power Supply Type

Single

ESD Protection

Yes

Typical Single Supply Voltage

24 V DC

Package Type

VQFN

Pin Count

20

COO (Country of Origin):
TH
The Microchip USB Type-C port protector for Configuration Channel (CC), and D+, D- (data lines) with integrated VCONN FETs. The CC, D+, D-, and SG_SENS (short-to-GND) are ESD protected to meet IEC 61000-4-2. The UCS4002 provides short to battery protection on D+, D-, and CC. It also provides battery short-to-GND protection for the charging port. Additionally, it is configurable to assert FAULT# in case of any Fault, any Fault except VCONN back-voltage, or any Fault except D+/D- or CC overvoltage. This device is perfect for USB Power Delivery port protection management applications.

Battery Short-to-GND Protection for Charging Port
IEC 61000-4-2 ESD Protection on D+, D-, CC, and SG_SENS
Over temperature Protection (Thermal Shutdown)
Temperature Range -40°C to +125°C
AEC-Q100 Automotive Qualified
