RS PRO Universal Joint, Double, Needle Roller, Bore 18mm, 114mm Length
- RS Stock No.:
- 790-6817
- Brand:
- RS PRO
3 In stock - FREE next working day delivery available
Added
Price Each
£149.92
(exc. VAT)
£179.90
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £149.92 |
| 5 - 9 | £146.92 |
| 10 - 24 | £143.92 |
| 25 + | £140.92 |
- RS Stock No.:
- 790-6817
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details

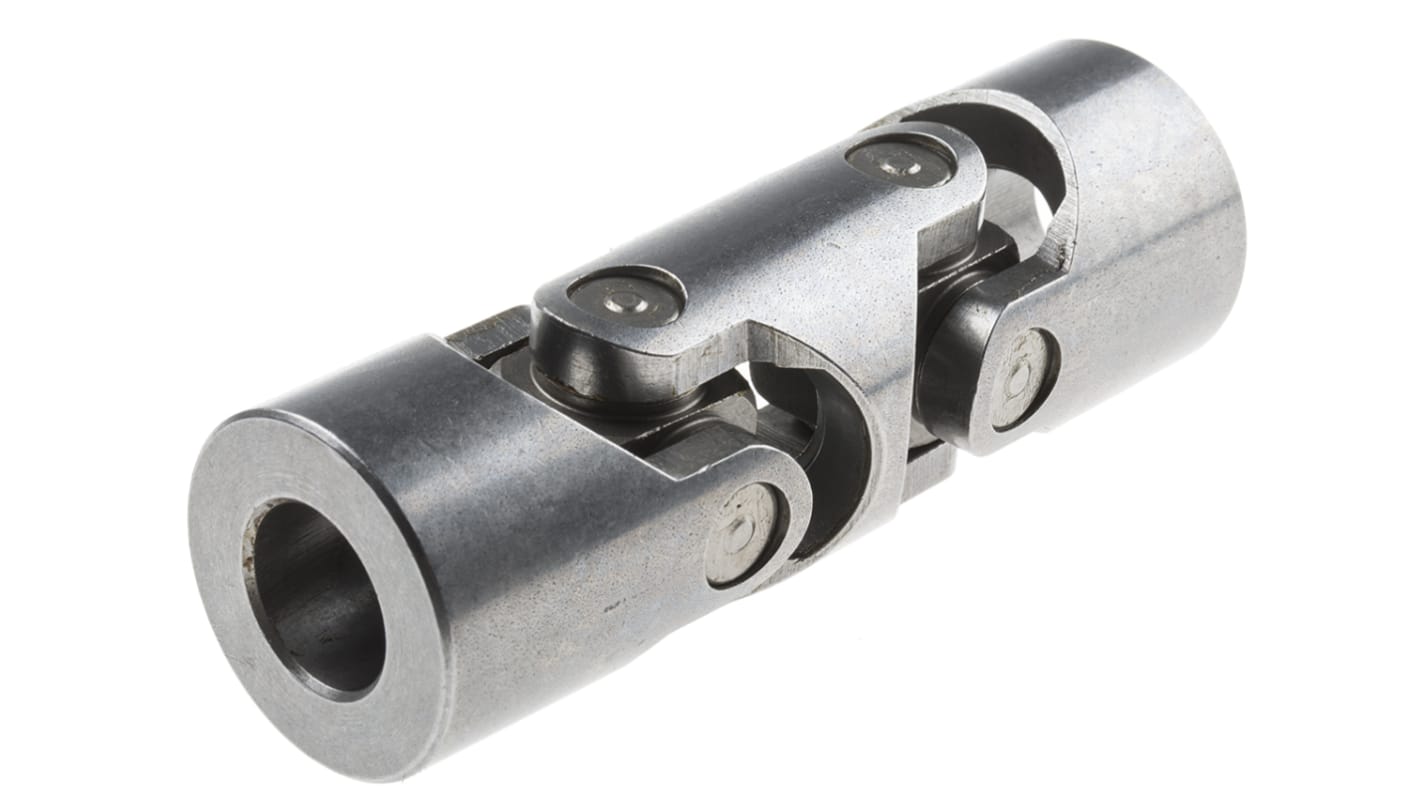

Double Universal Joint with Needle Bearing
Carbon steel universal joints for connecting equipment where there is a misalignment greater than 5 degrees up to an angle of 90 degrees. Fitted with needle bearings lubricated for a lifetime and requiring no maintenance, suitable for applications with speeds of up to 4000 rpm. Smooth and silent operation, suitable applications include connection of conveyers, line shafts and drive shafts.
Specifications
Attribute | Value |
|---|---|
| Bore | 18mm |
| Number of Joints | Double |
| Hub Outer Diameter | 36mm |
| Overall Length | 114mm |
| Joint Type | Needle Roller |
| Hub Type | Bored Hub |
| Maximum Working Angle | 90° |
| Peak Torque | 200Nm |
| Material | Steel |
| Maximum Speed | 4000rpm |
