Alpha Wire Alpha Essentials LSZH Communication & Control Series Data Cable, 4 Cores, 0.35 mm², Unscreened, 22 AWG, 30m,

Subtotal (1 reel of 30 metres)*

£65.55

(exc. VAT)

£78.66

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 21 unit(s) ready to ship
  • Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£65.55£2.185

*price indicative

RS Stock No.:
673-3236
Mfr. Part No.:
1174L SL005
Brand:
Alpha Wire
Find similar products by selecting one or more attributes.
Select all

Brand

Alpha Wire

Cross Sectional Area

0.35 mm²

Number of Cores

4

American Wire Gauge

22 AWG

Screened/Unscreened

Unscreened

Length

30m

Shield Type

Tinned Copper

Sheath Colour

Grey

Outer Diameter

4.34mm

Outer Sheath Material

LSZH

Cable Shape

Multicore

Voltage Rating

300 V

Series

Alpha Essentials LSZH Communication & Control

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+80°C

Standards Met

CE, CSA, UL

Core Strands

7/0.25 mm

Shielded/Unshielded

Unshielded

Fire Behaviour

Low Smoke Zero Halogen (LSZH)

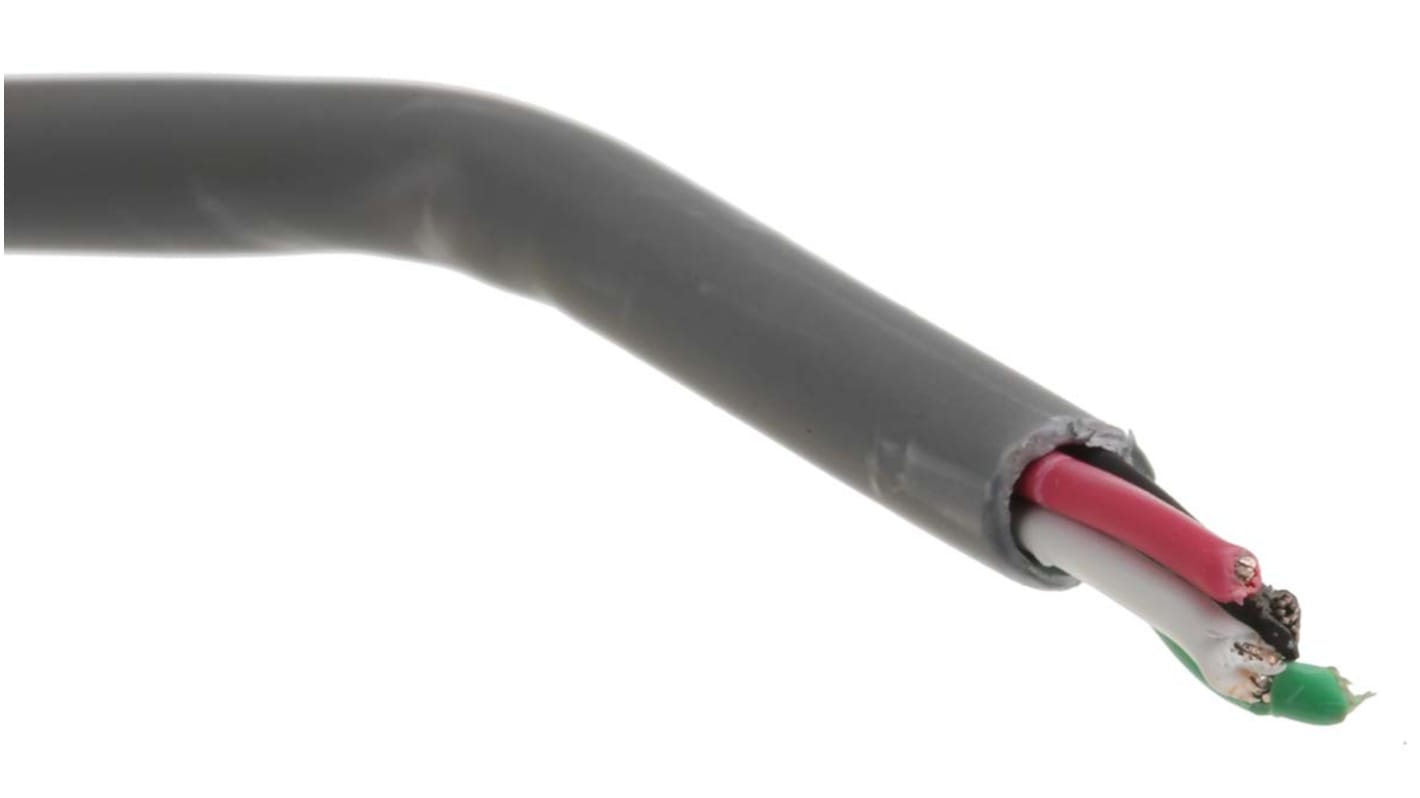

Belden Alpha Wire Unscreened Multicore Data Cable, 0.35mm² CSA, 4 Cores - Alpha Essentials Series - 1174L SL005


Safely transmit data throughout your network with this multicore cable from Belden's Alpha Wire range. As its design lets you complete multiple connections with a single cable, you can minimise clutter in your setup. The tinned-copper conductors are resistant to corrosion and can withstand damp or humid conditions. This cable is classified as LSZH (low-smoke, zero-halogen) so it doesn't release toxic fumes in a fire, making it suitable for use in public places such as schools and hospitals.

Features & Benefits


• Durable PVC jacket protects conductors from wear to keep your connection secure even in high-traffic areas
• Operating temperature range between -20°C and +80°C for use in heavy industrial automation systems
• Stranded conductor design combines high conductivity with flexibility to save space in your application

Applications


• Telecommunications equipment
• Commercial spaces
• Computer networks

What are halogens and why should I choose a halogen-free cable?


Halogens are elements used in the construction of some cables for their flame-retardant properties. When they burn, halogen-based cables release toxic fumes that can be dangerous to humans. Halogen-free cables like this one use alternative materials to provide the same level of fire resistance without the risk of hazardous emissions.
