Alpha Wire Multicore Data Cable, 0.35 mm², 9 Cores, 22 AWG, Unscreened, 30m, Grey Sheath
- RS Stock No.:
- 673-3254
- Mfr. Part No.:
- 1179L SL005
- Brand:
- Alpha Wire
15 In stock - FREE next working day delivery available
1 available from Europe for delivery within 1 working day(s).
Added
Price 1 Reel of 30 Metre(s)
£87.55
(exc. VAT)
£105.06
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 - 4 | £87.55 | £2.918 |
| 5 - 9 | £84.31 | £2.81 |
| 10 + | £80.98 | £2.699 |
| *price indicative | ||
- RS Stock No.:
- 673-3254
- Mfr. Part No.:
- 1179L SL005
- Brand:
- Alpha Wire
Technical Reference
Legislation and Compliance
Product Details

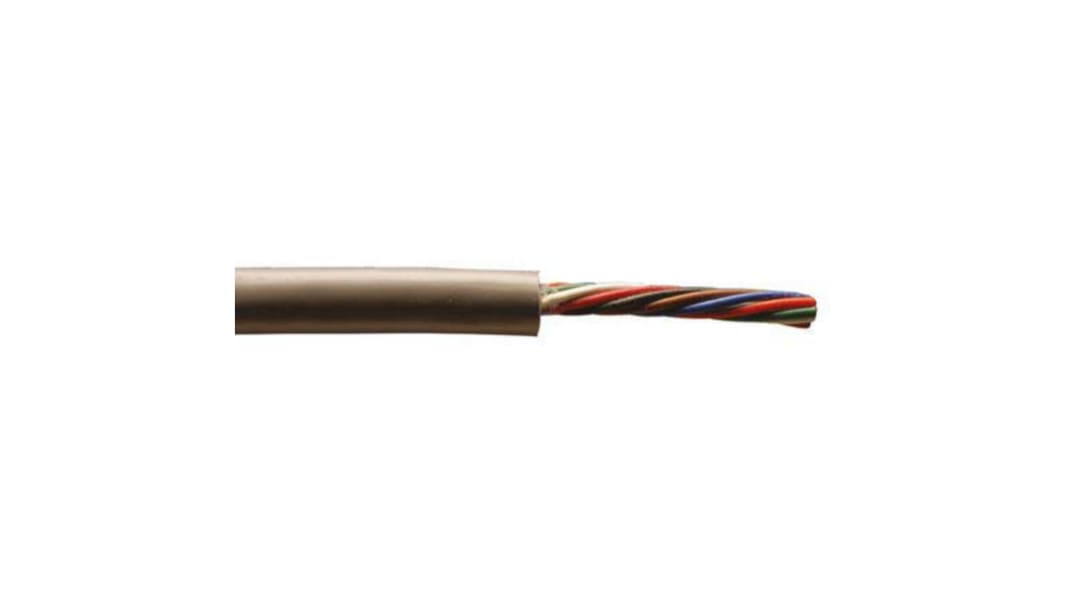

Unshielded Multi-Conductor Industrial Cable
Multi-conductor industrial cable that comprises stranded or solid tinned copper conductors, PVC insulation and overall PVC jacket.
Features and Benefits
• Tinned copper conductors that resist corrosion
• Stranded conductors for installation flexibility
Approvals
UL, CSA
Specifications
Attribute | Value |
|---|---|
| Cross Sectional Area | 0.35 mm² |
| Number of Cores | 9 |
| American Wire Gauge | 22 AWG |
| Screened/Unscreened | Unscreened |
| Length | 30m |
| Shield Type | Tinned Copper |
| Sheath Colour | Grey |
| Outer Diameter | 5.89mm |
| Outer Sheath Material | LSZH |
| Cable Shape | Multicore |
| Shielded/Unshielded | Unshielded |
| Series | Alpha Essentials LSZH Communication & Control |
| Voltage Rating | 300 V |
| Fire Behaviour | Halogen Free |
| Core Strands | 7/0.25 mm |
| Standards Met | CE, CSA, UL |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +80°C |
