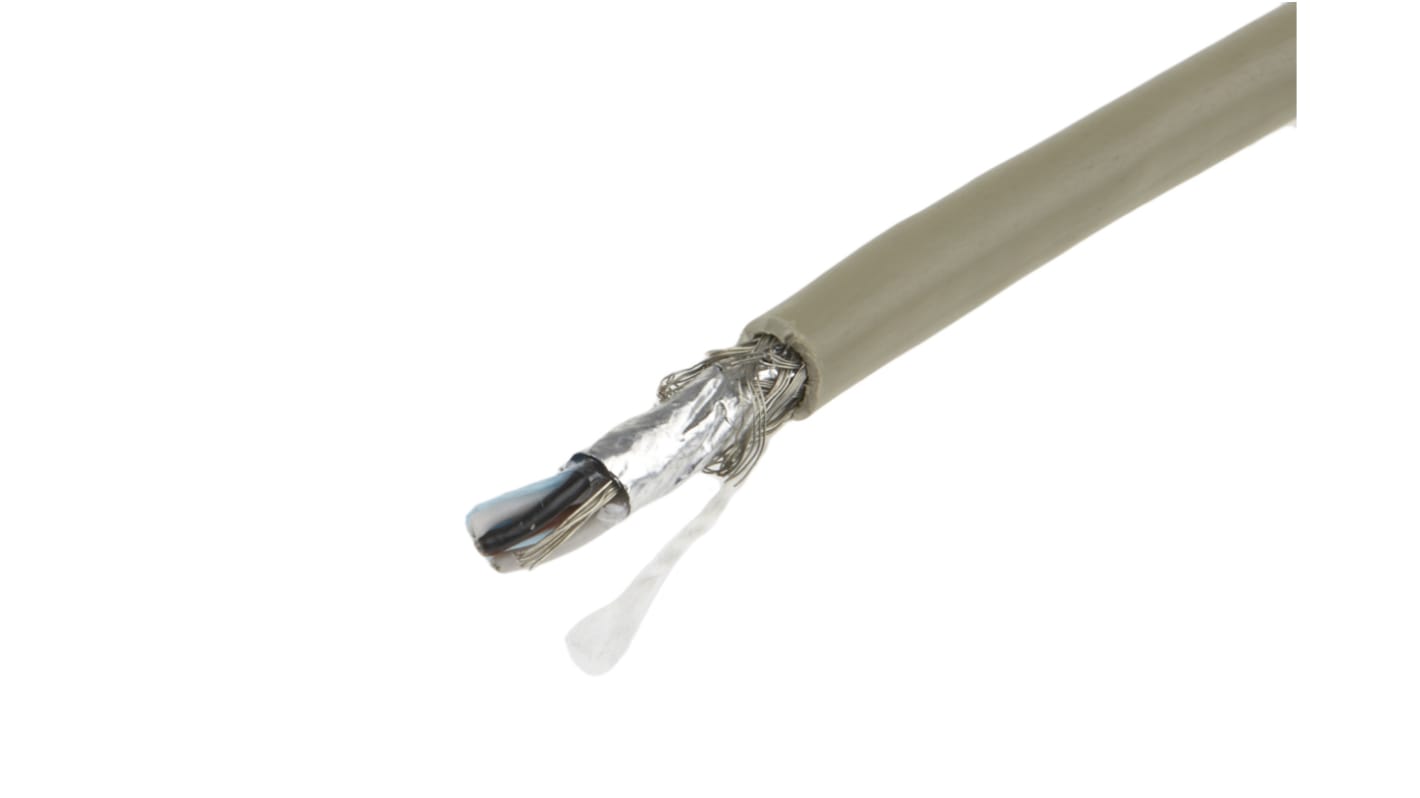

Alpha Wire ProTekt Series Data Cable, 2 Pairs, 4 Cores, 0.23 mm², Screened, 24 AWG, 100m, Foil and Braid Shield
- RS Stock No.:
- 175-7355
- Mfr. Part No.:
- B963024 GE033
- Brand:
- Alpha Wire
Subtotal (1 reel of 100 metres)*
£216.45
(exc. VAT)
£259.74
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 5 unit(s) shipping from 27 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £216.45 | £2.165 |
*price indicative
- RS Stock No.:
- 175-7355
- Mfr. Part No.:
- B963024 GE033
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Alpha Wire | |
Number of Pairs | 2 | |
Cross Sectional Area | 0.23 mm² | |
Number of Cores | 4 | |
American Wire Gauge | 24 AWG | |
Screened/Unscreened | Screened | |
Length | 100m | |
Shield Type | Foil and Braid | |
Sheath Colour | Grey | |
Outer Diameter | 6.07mm | |
Outer Sheath Material | PVC | |
Cable Shape | Twisted Pair | |
Characteristic Impedance | 64 Ω | |
Voltage Rating | 300 V | |
Maximum Operating Temperature | +105°C | |
Series | ProTekt | |
Core Strands | 7/32 AWG | |
Fire Behaviour | Flame Retardant | |
Standards Met | CE, CSA Certified, UL | |
Minimum Operating Temperature | -30°C | |
Select all | ||
---|---|---|
Brand Alpha Wire | ||
Number of Pairs 2 | ||
Cross Sectional Area 0.23 mm² | ||
Number of Cores 4 | ||
American Wire Gauge 24 AWG | ||
Screened/Unscreened Screened | ||
Length 100m | ||
Shield Type Foil and Braid | ||
Sheath Colour Grey | ||
Outer Diameter 6.07mm | ||
Outer Sheath Material PVC | ||
Cable Shape Twisted Pair | ||
Characteristic Impedance 64 Ω | ||
Voltage Rating 300 V | ||
Maximum Operating Temperature +105°C | ||
Series ProTekt | ||
Core Strands 7/32 AWG | ||
Fire Behaviour Flame Retardant | ||
Standards Met CE, CSA Certified, UL | ||
Minimum Operating Temperature -30°C | ||
Belden ProTekt Series Data Cable, 0.23mm² Cross Sectional Area, 100m Length - B963024 GE033
This data cable is designed for high-performance communication in various environments. It features a twisted pair construction, composed of two pairs and four cores, with an outer diameter of 6.07 mm. The 100 m length adds adaptability for different installations, making it suitable for diverse applications within the automation and electronics sectors.
Features & Benefits
• Provides effective shielding with a screened design to reduce interference
• Equipped with a flame retardant feature enhancing safety
• Constructed from 24 AWG cable, ensuring optimal conductivity
• Features a durable PVC outer sheath for environmental protection
• Low impedance of 64 Ω enables efficient signal transmission
• Meets essential electrical cable standards for certified reliability
• Equipped with a flame retardant feature enhancing safety
• Constructed from 24 AWG cable, ensuring optimal conductivity
• Features a durable PVC outer sheath for environmental protection
• Low impedance of 64 Ω enables efficient signal transmission
• Meets essential electrical cable standards for certified reliability
Applications
• Used in network installations for data transmission
• Employed in automation systems requiring reliable communication
• Utilised in electrical assembly for industrial control systems
• Integrated with equipment needing high-performance data connectivity
• Employed in automation systems requiring reliable communication
• Utilised in electrical assembly for industrial control systems
• Integrated with equipment needing high-performance data connectivity
What operating temperature range can this cable withstand?
The cable operates effectively within a temperature range of -30°C to +105°C, making it suitable for various environmental conditions.
How many twists per foot does this cable feature?
It features a minimum of 12 twists per foot for each pair and 8 twists per foot for the overall cable assembly, ensuring signal integrity.
What are the specific certifications associated with this product?
It complies with CE, CSA, and UL standards, ensuring adherence to recognised electrical safety and performance protocols.
What type of insulation is used in this cable?
The insulation is made from semi-rigid PVC with a wall thickness of approximately 0.010 inches, providing robust protection for the conductors.
What is the maximum pull tension for this cable?
The maximum pull tension for this cable is 20.9 lbs, which helps maintain its integrity during installation.
