Alpha Wire Twisted Pair Data Cable, 1 Pairs, 0.23 mm², 2 Cores, 24 AWG, Unscreened, 100m, Grey Sheath
- RS Stock No.:
- 175-7351
- Mfr. Part No.:
- B963011 GE033
- Brand:
- Alpha Wire
45 In stock - FREE next working day delivery available
3 available from Europe for delivery within 1 working day(s).
Added
Price 1 Reel of 100 Metre(s)
£62.88
(exc. VAT)
£75.46
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 - 4 | £62.88 | £0.629 |
| 5 - 9 | £60.05 | £0.60 |
| 10 + | £57.22 | £0.572 |
| *price indicative | ||
- RS Stock No.:
- 175-7351
- Mfr. Part No.:
- B963011 GE033
- Brand:
- Alpha Wire
Technical Reference
Legislation and Compliance
Product Details

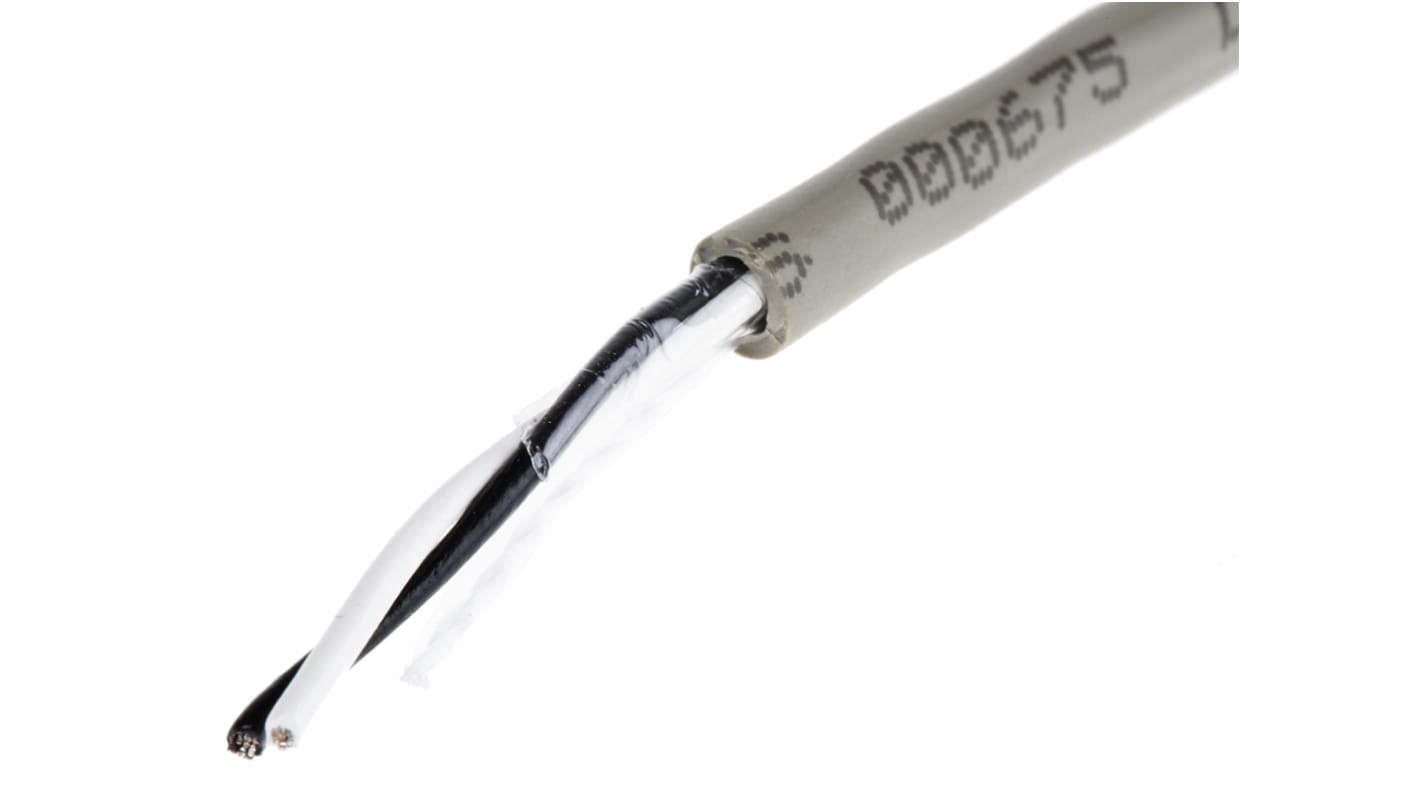

Belden Alpha Wire Data Cable, 3.94mm OD, Unscreened - Pro-Tekt Series - B963011
Use this 2-core data cable from Belden's Alpha Wire range to transmit information in your industrial system. Its unterminated and has tinned copper conductors that are easy to connect to switches and connectors, so it's a versatile choice. As the cable is unshielded, it's highly flexible to allow for installation in tight work areas and around corners. The grey PVC sheath is resistant to UV to ensure a long service life in outdoor applications.
Features & Benefits
• Wide operating temperature range between -30°C and +105°C, for use in challenging environments
• Ample length for long runs or multiple jobs
• Flame retardant to reduce the risk of spreading a fire
• Ample length for long runs or multiple jobs
• Flame retardant to reduce the risk of spreading a fire
Applications
• Industrial automation systems
• Commercial electronics
• Medical devices
• Aerospace equipment
• Commercial electronics
• Medical devices
• Aerospace equipment
What's the voltage rating of this unit?
This cable is rated for a 300V voltage supply, so it's safe to use in standard electrical systems.
Specifications
Attribute | Value |
|---|---|
| Number of Pairs | 1 |
| Cross Sectional Area | 0.23 mm² |
| Number of Cores | 2 |
| American Wire Gauge | 24 AWG |
| Screened/Unscreened | Unscreened |
| Length | 100m |
| Shield Type | None |
| Sheath Colour | Grey |
| Outer Diameter | 3.94mm |
| Outer Sheath Material | PVC |
| Cable Shape | Twisted Pair |
| Characteristic Impedance | 86 Ω |
| Core Strands | 7/32 AWG |
| Shielded/Unshielded | Unshielded |
| Fire Behaviour | Flame Retardant |
| Standards Met | CE, CSA Certified, UL |
| Voltage Rating | 300 V |
| Series | Pro-Tekt |
