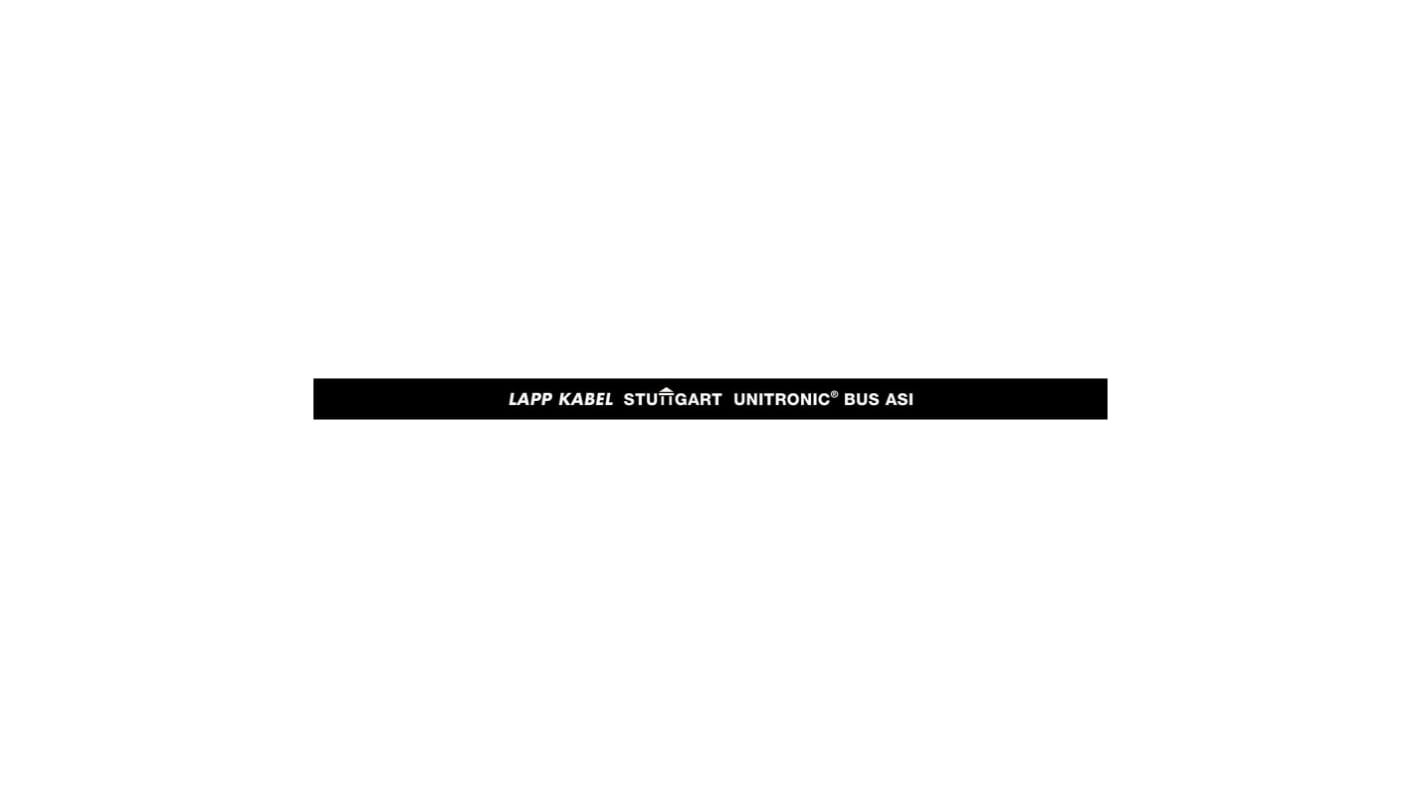

Lapp UNITRONIC BUS Series Bus Cable, 2 Pairs, 2.5 mm², Black Sheath Rubber
- RS Stock No.:
- 433-375
- Mfr. Part No.:
- 2170372
- Brand:
- Lapp
Subtotal (1 reel of 100 metres)*
£243.60
(exc. VAT)
£292.32
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £243.60 | £2.436 |
*price indicative
- RS Stock No.:
- 433-375
- Mfr. Part No.:
- 2170372
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Number of Pairs | 2 | |
| Product Type | Bus Cable | |
| Cross Sectional Area | 2.5 mm² | |
| Jacket Colour | Black | |
| Conductor Type | Stranded | |
| Jacket Material | Rubber | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | ISO 4892-2, IEC 62026-2, IEC 60754-1, EU-Directive 2014/35/EU, EU-Directive 2011/65/EU, EN 60754-1 | |
| Voltage | 30V | |
| Series | UNITRONIC BUS | |
| Conductor Material | Tin Copper Wire | |
| Fire Behaviour | Halogen Free, Flame Retardant | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Number of Pairs 2 | ||
Product Type Bus Cable | ||
Cross Sectional Area 2.5 mm² | ||
Jacket Colour Black | ||
Conductor Type Stranded | ||
Jacket Material Rubber | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals ISO 4892-2, IEC 62026-2, IEC 60754-1, EU-Directive 2014/35/EU, EU-Directive 2011/65/EU, EN 60754-1 | ||
Voltage 30V | ||
Series UNITRONIC BUS | ||
Conductor Material Tin Copper Wire | ||
Fire Behaviour Halogen Free, Flame Retardant | ||
- COO (Country of Origin):
- IT
The Lapp Cable is designed for communication at the sensor and actuator level. The black cable is used to carry auxiliary power supply to system components. It enables connection of modules located further away, allowing AS-i power supplies to be reduced.
Rubber outer sheath
Tinned copper conductor
Halogen free
Flame retardant
