Lapp UNITRONIC BUS Series Bus Cable, 2 Pairs, 0.5 mm², Violet Sheath Polyurethane
- RS Stock No.:
- 433-370
- Mfr. Part No.:
- 2170279
- Brand:
- Lapp
Subtotal (1 reel of 100 metres)*
£453.77
(exc. VAT)
£544.52
(inc. VAT)
Stock information currently inaccessible - Please check back later
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £453.77 | £4.538 |
*price indicative
- RS Stock No.:
- 433-370
- Mfr. Part No.:
- 2170279
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Product Type | Bus Cable | |
| Number of Pairs | 2 | |
| Cross Sectional Area | 0.5 mm² | |
| Jacket Colour | Violet | |
| Outside Diameter | 10.1 mm | |
| Conductor Type | Stranded | |
| Minimum Operating Temperature | -40°C | |
| Jacket Material | Polyurethane | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | EU 2011/65/EU (RoHS), flame retardant IEC 60332 1 2, ISO11898, UL / cUL type CMX UL 444 and CSA C22.2 No.214 02 | |
| Fire Behaviour | Flame Retardant acc. to IEC 60332-1-2 | |
| Conductor Material | Bare Copper | |
| Voltage | 25 V | |
| Series | UNITRONIC BUS | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Product Type Bus Cable | ||
Number of Pairs 2 | ||
Cross Sectional Area 0.5 mm² | ||
Jacket Colour Violet | ||
Outside Diameter 10.1 mm | ||
Conductor Type Stranded | ||
Minimum Operating Temperature -40°C | ||
Jacket Material Polyurethane | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals EU 2011/65/EU (RoHS), flame retardant IEC 60332 1 2, ISO11898, UL / cUL type CMX UL 444 and CSA C22.2 No.214 02 | ||
Fire Behaviour Flame Retardant acc. to IEC 60332-1-2 | ||
Conductor Material Bare Copper | ||
Voltage 25 V | ||
Series UNITRONIC BUS | ||
- COO (Country of Origin):
- IT

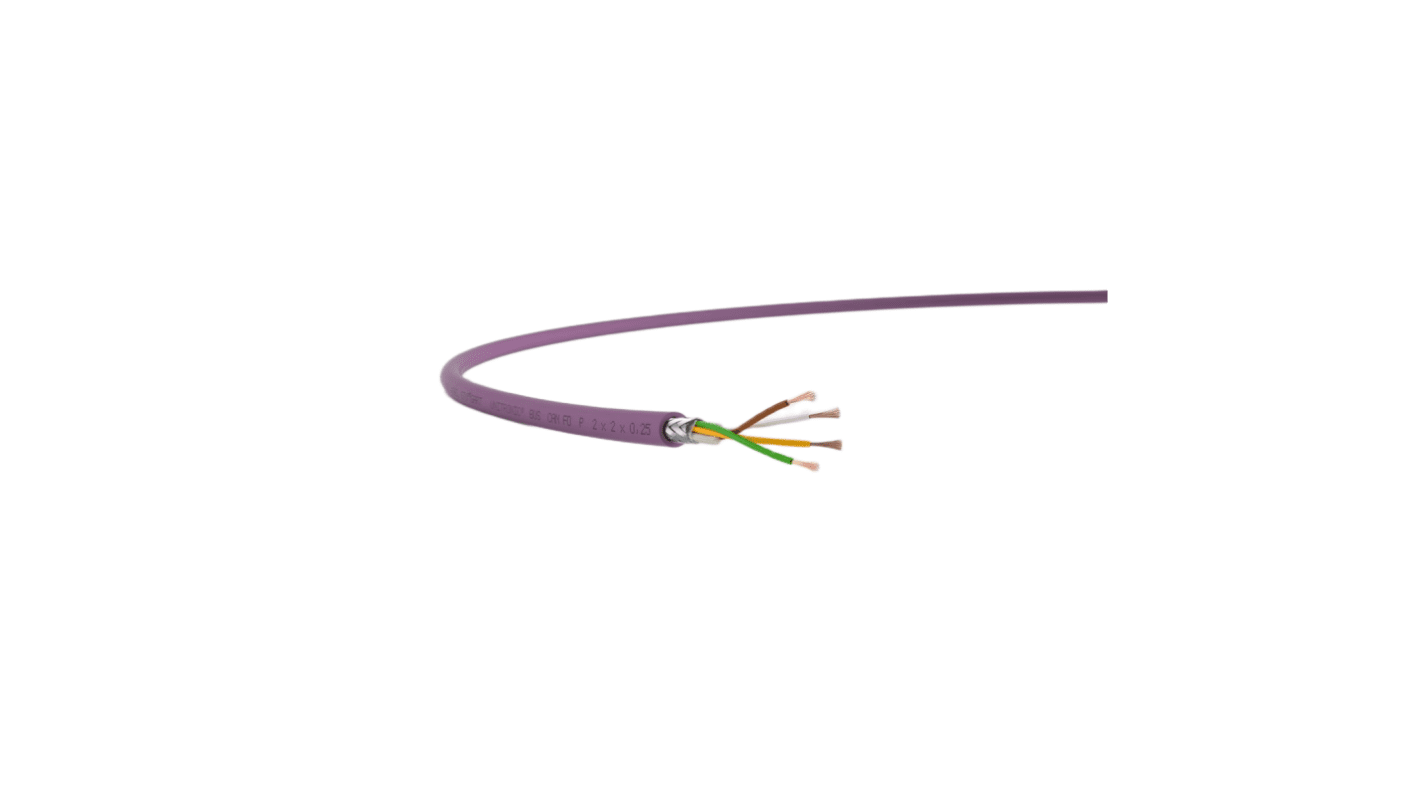

The Lapp Data Cable has UL and cUL approval and is designed for the CAN (Controller Area Network) fieldbus system according to ISO11898, as well as for high performance data networks with 120 Ohms nominal impedance. The second pair can be used for electrical power supply to the logical bus units. The cable’s transmission characteristics conform to the CAN system, ensuring high operating security during data transmission. It is intended for highly flexible applications in power chains or permanently moving machines, suitable for dry and damp interiors and harsh industrial environments.
PUR outer sheath
Bare copper conductor
Braid of tinned copper wires screen
Halogen free
Flame retardant
