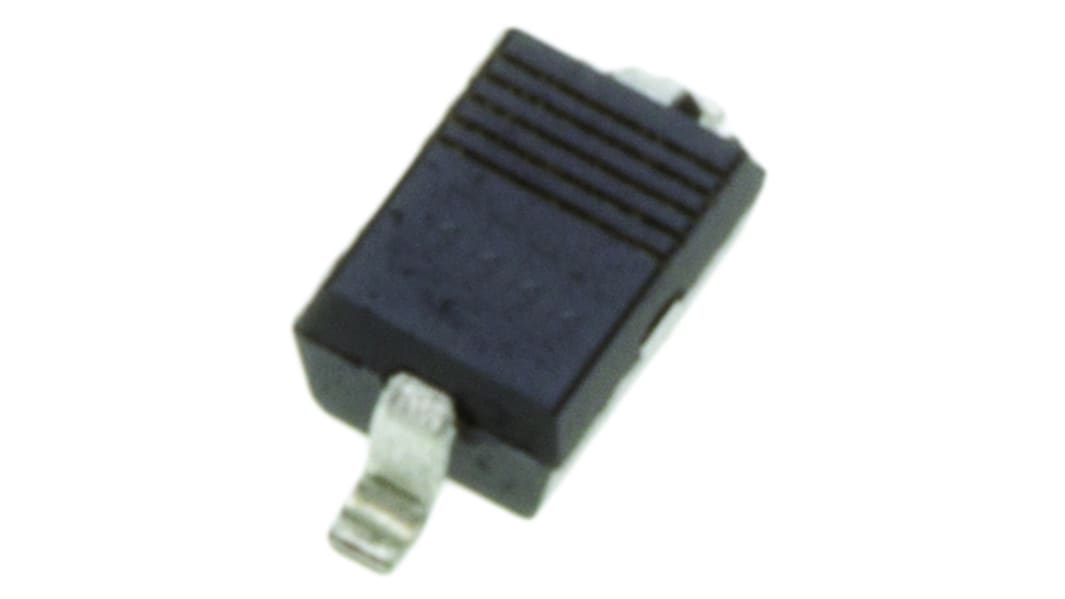

DiodesZetex SD12-7 1-Element Uni-Directional TVS Diode, 350 W, 2-Pin SOD-323
- RS Stock No.:
- 921-1240
- Mfr. Part No.:
- SD12-7
- Brand:
- DiodesZetex
Bulk discount available
Subtotal (1 pack of 100 units)*
£3.30
(exc. VAT)
£4.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 07 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 400 | £0.033 | £3.30 |
| 500 - 900 | £0.031 | £3.10 |
| 1000 - 1900 | £0.025 | £2.50 |
| 2000 - 2900 | £0.024 | £2.40 |
| 3000 + | £0.017 | £1.70 |
*price indicative
- RS Stock No.:
- 921-1240
- Mfr. Part No.:
- SD12-7
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Direction Type | Uni-Directional | |
| Diode Configuration | Single | |
| Product Type | TVS Diode | |
| Minimum Breakdown Voltage Vbr | 13.3V | |
| Mount Type | Surface | |
| Package Type | SOD-323 | |
| Maximum Reverse Stand-off Voltage Vwm | 12V | |
| Pin Count | 2 | |
| Peak Pulse Power Dissipation Pppm | 350W | |
| ESD Protection | Yes | |
| Test Current It | 1mA | |
| Minimum Operating Temperature | -55°C | |
| Clamping Voltage VC | 25V | |
| Maximum Peak Pulse Current Ippm | 15A | |
| Maximum Operating Temperature | 150°C | |
| Number of Elements per Chip | 1 | |
| Length | 1.8mm | |
| Height | 1.1mm | |
| Series | SD | |
| Standards/Approvals | No | |
| Maximum Reverse Leakage Current | 1μA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Direction Type Uni-Directional | ||
Diode Configuration Single | ||
Product Type TVS Diode | ||
Minimum Breakdown Voltage Vbr 13.3V | ||
Mount Type Surface | ||
Package Type SOD-323 | ||
Maximum Reverse Stand-off Voltage Vwm 12V | ||
Pin Count 2 | ||
Peak Pulse Power Dissipation Pppm 350W | ||
ESD Protection Yes | ||
Test Current It 1mA | ||
Minimum Operating Temperature -55°C | ||
Clamping Voltage VC 25V | ||
Maximum Peak Pulse Current Ippm 15A | ||
Maximum Operating Temperature 150°C | ||
Number of Elements per Chip 1 | ||
Length 1.8mm | ||
Height 1.1mm | ||
Series SD | ||
Standards/Approvals No | ||
Maximum Reverse Leakage Current 1μA | ||
Automotive Standard No | ||
Transient Voltage Suppressor SMT Unidirectional 350W, Diodes Inc
Transient Voltage Suppressors, Diodes Inc
