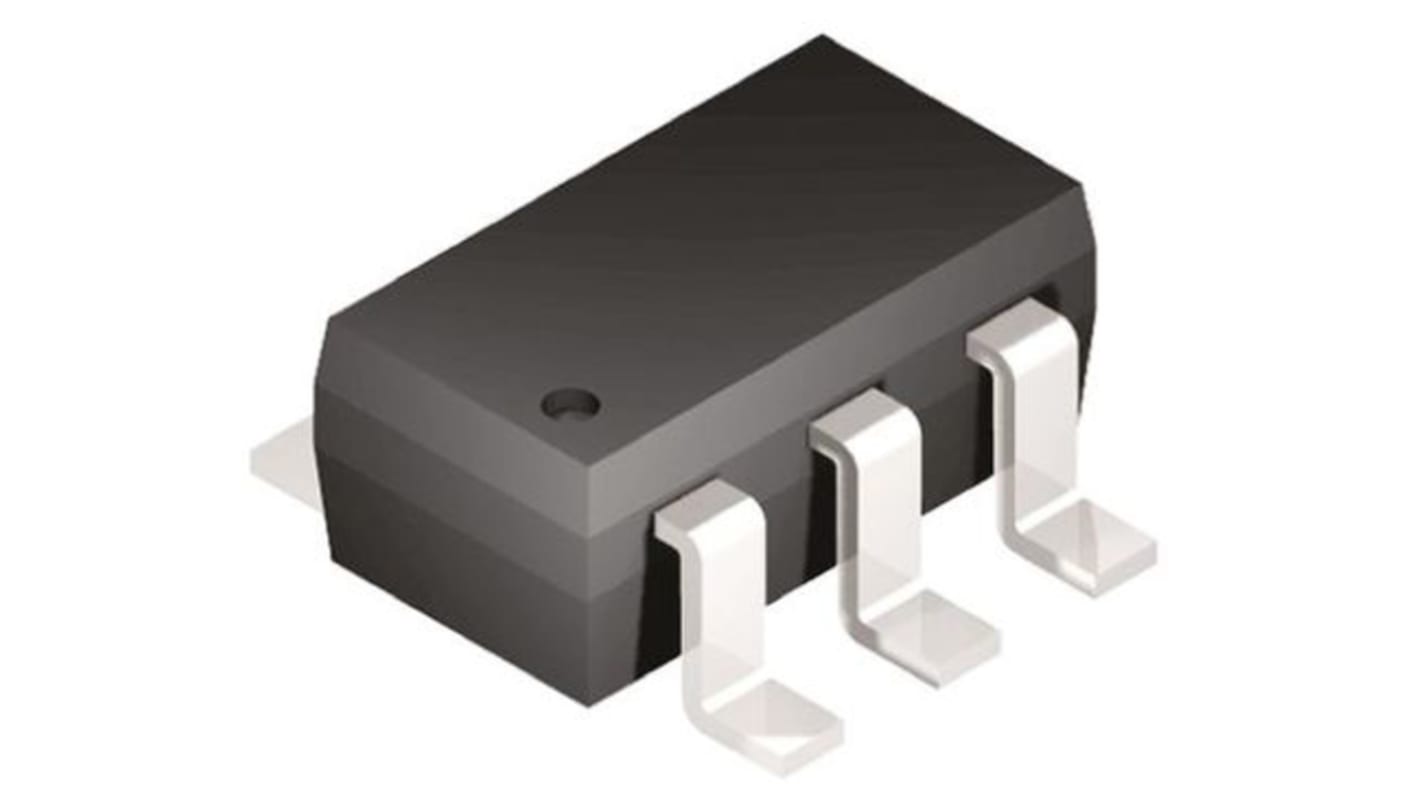

STMicroelectronics 4-Element Uni-Directional ESD Protection Array, 6-Pin SOT-23
- RS Stock No.:
- 920-6288
- Mfr. Part No.:
- HDMIULC6-4SC6
- Brand:
- STMicroelectronics
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 5)
£0.986
(exc. VAT)
£1.183
(inc. VAT)
- RS Stock No.:
- 920-6288
- Mfr. Part No.:
- HDMIULC6-4SC6
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Direction Type | Uni-Directional | |
| Diode Configuration | Complex Array | |
| Product Type | ESD Protection Array | |
| Minimum Breakdown Voltage Vbr | 6V | |
| Mount Type | Surface | |
| Package Type | SOT-23 | |
| Maximum Reverse Stand-off Voltage Vwm | 5V | |
| Pin Count | 6 | |
| Minimum Operating Temperature | -55°C | |
| Test Current It | 1mA | |
| ESD Protection | Yes | |
| Clamping Voltage VC | 17V | |
| Maximum Operating Temperature | 125°C | |
| Number of Elements per Chip | 4 | |
| Standards/Approvals | No | |
| Length | 3.05mm | |
| Height | 1.3mm | |
| Maximum Reverse Leakage Current | 500nA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Direction Type Uni-Directional | ||
Diode Configuration Complex Array | ||
Product Type ESD Protection Array | ||
Minimum Breakdown Voltage Vbr 6V | ||
Mount Type Surface | ||
Package Type SOT-23 | ||
Maximum Reverse Stand-off Voltage Vwm 5V | ||
Pin Count 6 | ||
Minimum Operating Temperature -55°C | ||
Test Current It 1mA | ||
ESD Protection Yes | ||
Clamping Voltage VC 17V | ||
Maximum Operating Temperature 125°C | ||
Number of Elements per Chip 4 | ||
Standards/Approvals No | ||
Length 3.05mm | ||
Height 1.3mm | ||
Maximum Reverse Leakage Current 500nA | ||
Automotive Standard No | ||
HDMI port ESD Protection
These are Electro-Static Discharge (ESD) circuit protection devices for HDMI (High-Definition Multimedia Interface), an audio/video interface.
Transient Voltage Suppressors (Data Lines)
