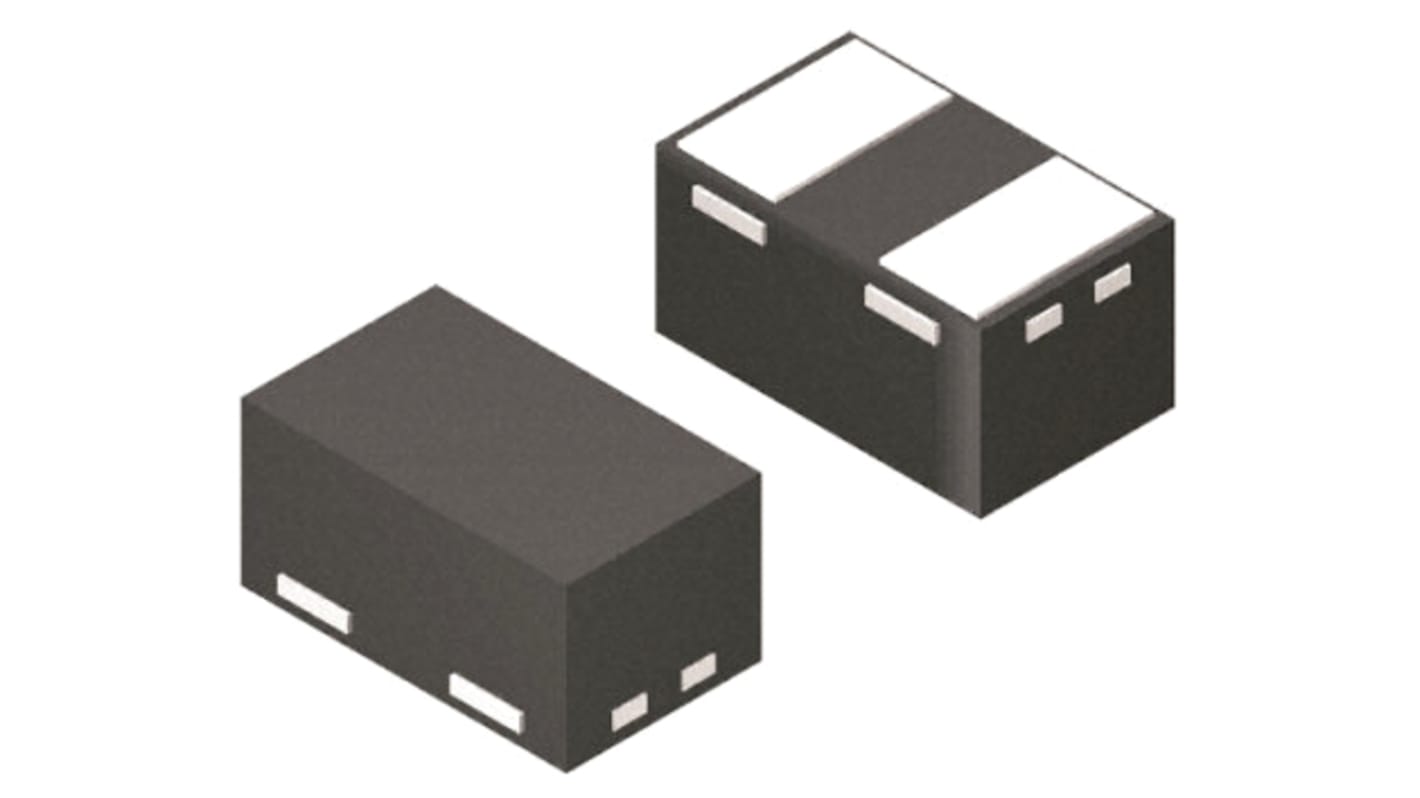

STMicroelectronics ESDAULC5-1BF4 1-Element Bi-Directional ESD Protection Diode, 140 W, 2-Pin 0201
- RS Stock No.:
- 860-7390
- Mfr. Part No.:
- ESDAULC5-1BF4
- Brand:
- STMicroelectronics
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 15 units)*
£1.635
(exc. VAT)
£1.965
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 05 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 15 - 60 | £0.109 | £1.64 |
| 75 - 135 | £0.104 | £1.56 |
| 150 - 360 | £0.093 | £1.40 |
| 375 - 735 | £0.084 | £1.26 |
| 750 + | £0.079 | £1.19 |
*price indicative
- RS Stock No.:
- 860-7390
- Mfr. Part No.:
- ESDAULC5-1BF4
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | ESD Protection Diode | |
| Direction Type | Bi-Directional | |
| Diode Configuration | Single | |
| Minimum Breakdown Voltage Vbr | 5.8V | |
| Mount Type | Surface | |
| Package Type | 0201 | |
| Maximum Reverse Stand-off Voltage Vwm | 3V | |
| Pin Count | 2 | |
| Peak Pulse Power Dissipation Pppm | 140W | |
| Maximum Peak Pulse Current Ippm | 10A | |
| Test Current It | 1mA | |
| Minimum Operating Temperature | -40°C | |
| Clamping Voltage VC | 13.5V | |
| ESD Protection | Yes | |
| Number of Elements per Chip | 1 | |
| Maximum Operating Temperature | 150°C | |
| Length | 0.63mm | |
| Width | 0.33mm | |
| Standards/Approvals | No | |
| Height | 0.32mm | |
| Automotive Standard | No | |
| Maximum Reverse Leakage Current | 70nA | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type ESD Protection Diode | ||
Direction Type Bi-Directional | ||
Diode Configuration Single | ||
Minimum Breakdown Voltage Vbr 5.8V | ||
Mount Type Surface | ||
Package Type 0201 | ||
Maximum Reverse Stand-off Voltage Vwm 3V | ||
Pin Count 2 | ||
Peak Pulse Power Dissipation Pppm 140W | ||
Maximum Peak Pulse Current Ippm 10A | ||
Test Current It 1mA | ||
Minimum Operating Temperature -40°C | ||
Clamping Voltage VC 13.5V | ||
ESD Protection Yes | ||
Number of Elements per Chip 1 | ||
Maximum Operating Temperature 150°C | ||
Length 0.63mm | ||
Width 0.33mm | ||
Standards/Approvals No | ||
Height 0.32mm | ||
Automotive Standard No | ||
Maximum Reverse Leakage Current 70nA | ||
Transil™ Array Bidirectional for ESD Protection, ESDA Series, STMicroelectronics
Transient Voltage Suppressors, STMicroelectronics
