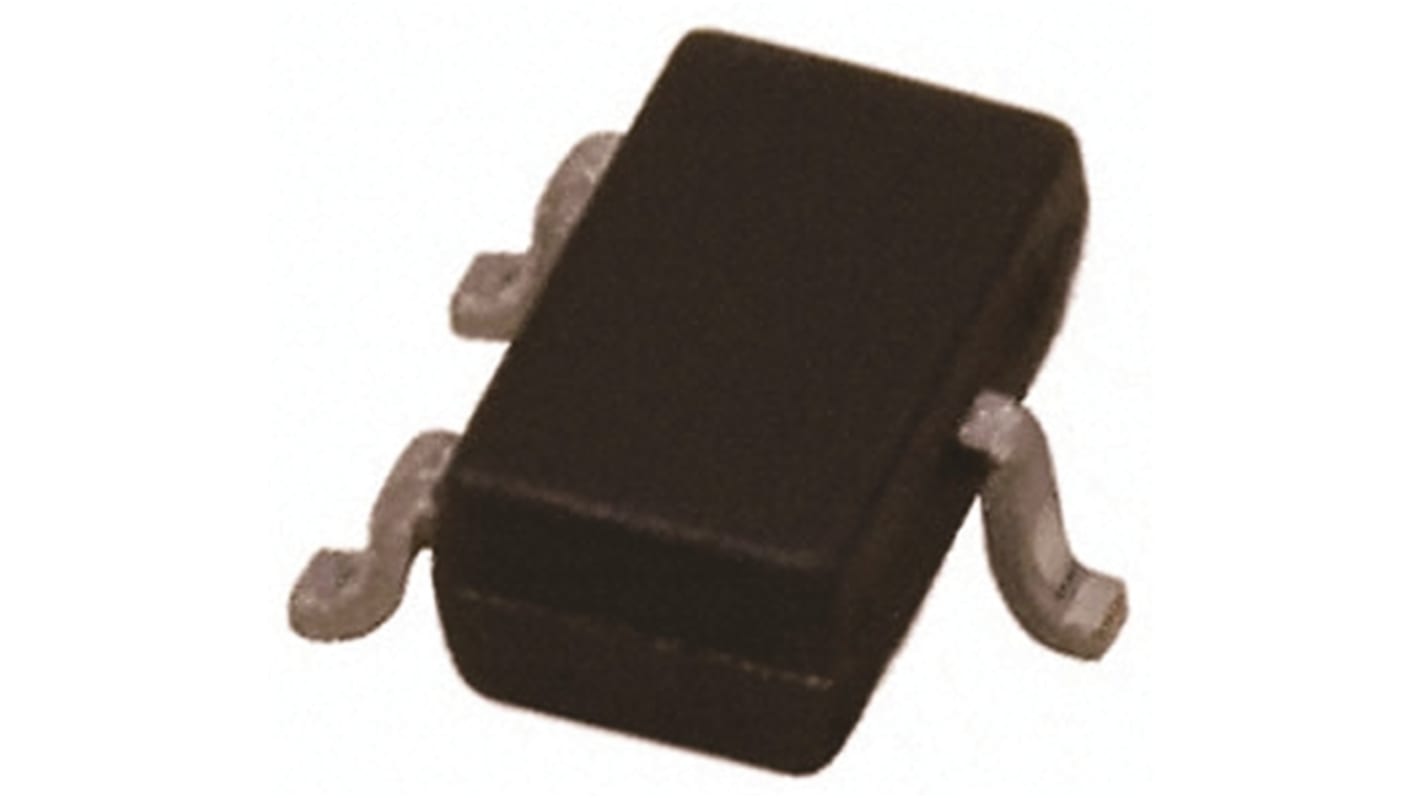

Nexperia PESD5V0X1BT,215, Dual-Element Bi-Directional ESD Protection Diode, 3-Pin SOT-23
- RS Stock No.:
- 816-6776
- Mfr. Part No.:
- PESD5V0X1BT,215
- Brand:
- Nexperia
Bulk discount available
Subtotal (1 pack of 50 units)*
£15.25
(exc. VAT)
£18.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 150 unit(s) ready to ship
- Plus 1,750 unit(s) shipping from 08 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 50 | £0.305 | £15.25 |
| 100 - 200 | £0.129 | £6.45 |
| 250 - 450 | £0.117 | £5.85 |
| 500 - 950 | £0.094 | £4.70 |
| 1000 + | £0.075 | £3.75 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (On a Reel of 3000)
£0.041
(exc. VAT)
£0.049
(inc. VAT)
- RS Stock No.:
- 816-6776
- Mfr. Part No.:
- PESD5V0X1BT,215
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Diode Configuration | Common Anode | |
| Direction Type | Bi-Directional | |
| Minimum Breakdown Voltage | 5.8V | |
| Mounting Type | Surface Mount | |
| Package Type | SOT-23 | |
| Maximum Reverse Stand-off Voltage | 5V | |
| Pin Count | 3 | |
| ESD Protection | Yes | |
| Number of Elements per Chip | 2 | |
| Minimum Operating Temperature | -55 °C | |
| Maximum Operating Temperature | +150 °C | |
| Dimensions | 3 x 1.4 x 1.1mm | |
| Height | 1.1mm | |
| Length | 3mm | |
| Test Current | 5mA | |
| Width | 1.4mm | |
| Maximum Reverse Leakage Current | 100nA | |
Select all | ||
|---|---|---|
Brand Nexperia | ||
Diode Configuration Common Anode | ||
Direction Type Bi-Directional | ||
Minimum Breakdown Voltage 5.8V | ||
Mounting Type Surface Mount | ||
Package Type SOT-23 | ||
Maximum Reverse Stand-off Voltage 5V | ||
Pin Count 3 | ||
ESD Protection Yes | ||
Number of Elements per Chip 2 | ||
Minimum Operating Temperature -55 °C | ||
Maximum Operating Temperature +150 °C | ||
Dimensions 3 x 1.4 x 1.1mm | ||
Height 1.1mm | ||
Length 3mm | ||
Test Current 5mA | ||
Width 1.4mm | ||
Maximum Reverse Leakage Current 100nA | ||
- COO (Country of Origin):
- CN
PESDxxxX1 Series, Low Capacitance Unidirectional ESD Protection Diodes, Nexperia
Ultra Low Capacitance Unidirectional ElectroStatic Discharge (ESD) protection diode in an ultra small Surface-Mounted Device (SMD) plastic package designed to protect one signal line from the damage caused by ESD and other transients.
The combination of extremely low capacitance and ultra low clamping voltage makes the device ideal for high-speed data line protection applications.
The combination of extremely low capacitance and ultra low clamping voltage makes the device ideal for high-speed data line protection applications.
Transient Voltage Suppressors, Nexperia
