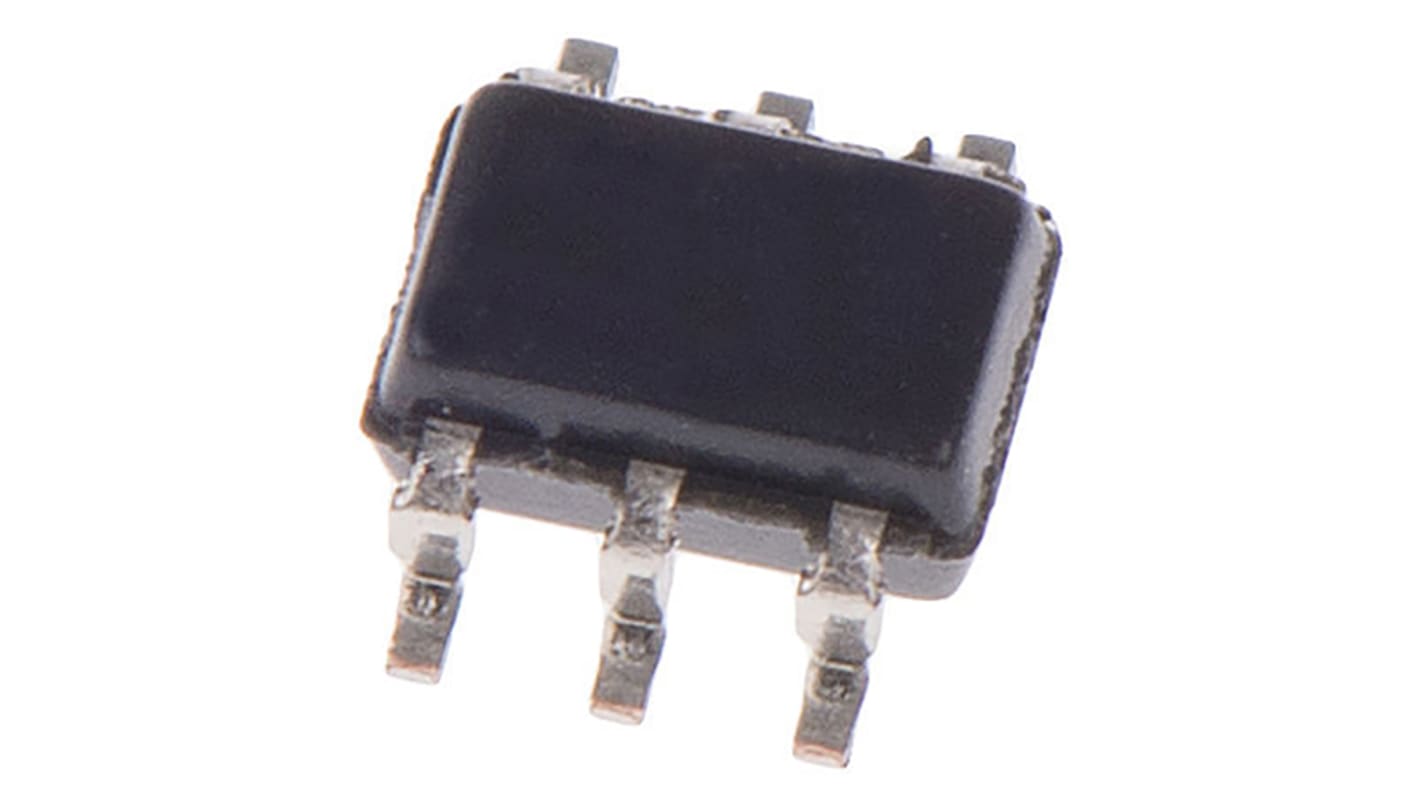

Wurth Elektronik 82400274 4-Element Uni-Directional TVS Diode Array, 6-Pin SOT-363
- RS Stock No.:
- 754-6216
- Mfr. Part No.:
- 82400274
- Brand:
- Wurth Elektronik
Subtotal (1 pack of 5 units)*
£3.84
(exc. VAT)
£4.61
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £0.768 | £3.84 |
*price indicative
- RS Stock No.:
- 754-6216
- Mfr. Part No.:
- 82400274
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | TVS Diode Array | |
| Diode Configuration | Complex Array | |
| Direction Type | Uni-Directional | |
| Minimum Breakdown Voltage Vbr | 6V | |
| Mount Type | Surface | |
| Package Type | SOT-363 | |
| Maximum Reverse Stand-off Voltage Vwm | 5V | |
| Pin Count | 6 | |
| ESD Protection | Yes | |
| Minimum Operating Temperature | -55°C | |
| Maximum Peak Pulse Current Ippm | 6A | |
| Test Current It | 1mA | |
| Clamping Voltage VC | 9V | |
| Number of Elements per Chip | 4 | |
| Maximum Operating Temperature | 85°C | |
| Height | 0.95mm | |
| Standards/Approvals | No | |
| Series | WE-TVS | |
| Length | 2mm | |
| Width | 1.25 mm | |
| Maximum Reverse Leakage Current | 5μA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type TVS Diode Array | ||
Diode Configuration Complex Array | ||
Direction Type Uni-Directional | ||
Minimum Breakdown Voltage Vbr 6V | ||
Mount Type Surface | ||
Package Type SOT-363 | ||
Maximum Reverse Stand-off Voltage Vwm 5V | ||
Pin Count 6 | ||
ESD Protection Yes | ||
Minimum Operating Temperature -55°C | ||
Maximum Peak Pulse Current Ippm 6A | ||
Test Current It 1mA | ||
Clamping Voltage VC 9V | ||
Number of Elements per Chip 4 | ||
Maximum Operating Temperature 85°C | ||
Height 0.95mm | ||
Standards/Approvals No | ||
Series WE-TVS | ||
Length 2mm | ||
Width 1.25 mm | ||
Maximum Reverse Leakage Current 5μA | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
ESD Protectors, Wurth Elektronik
TVS Diode Arrays WE-TVS Series
ESD Ultra Low Capacitance TVS
Electrostatic Discharge (ESD) protection applications for USB 2.0, HDMI, DVI, Ethernet, Firewire, and Serial Bus interfaces
Working Voltage 3.3V, 5V and 12V
Transient Voltage Suppressors, Wurth Elektronik
