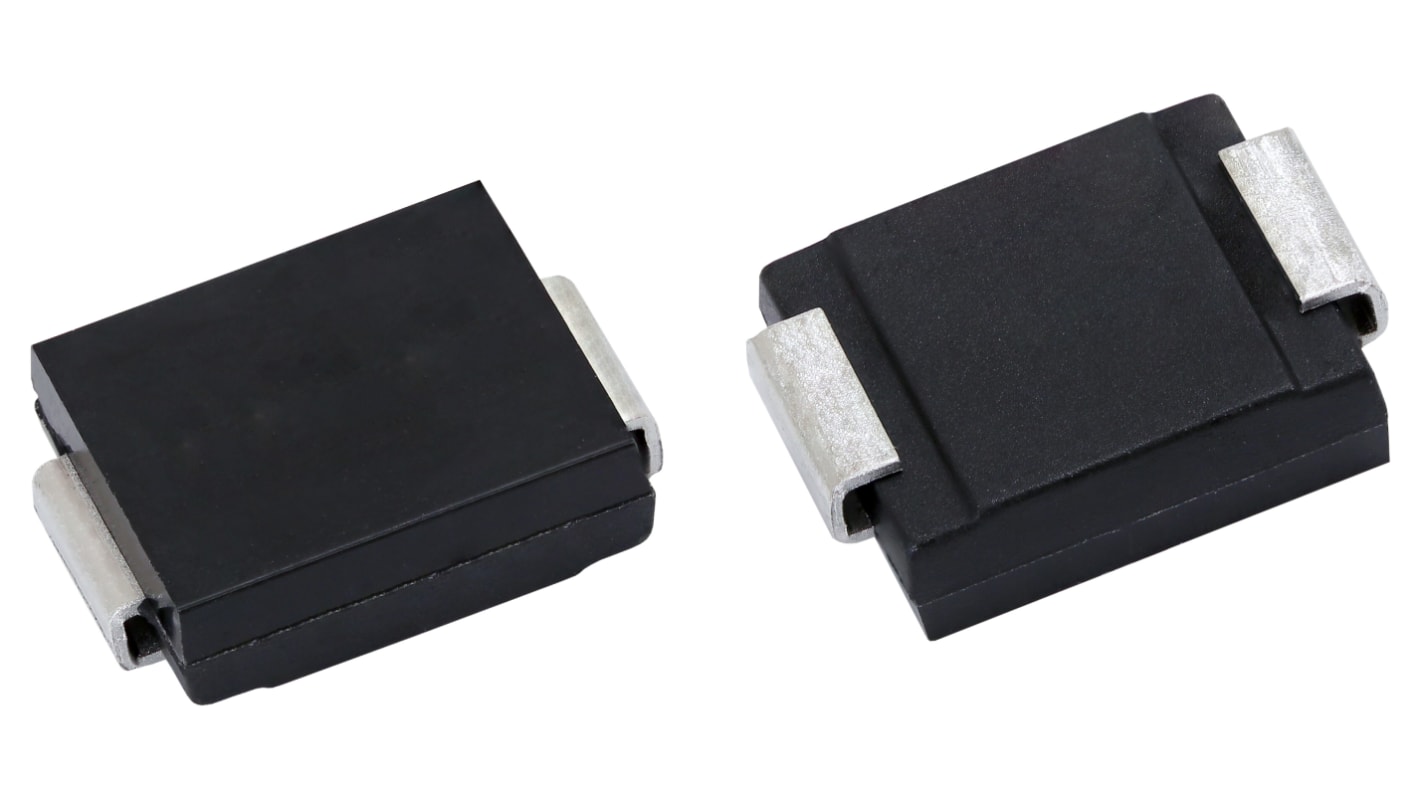

Vishay 3.0C30CA-M3/I 1-Element Bi-Directional TVS Diode, 3000 W, 2-Pin SMC (DO-214AB)

View all TVS Diodes
Bulk discount available

Subtotal (1 pack of 5 units)*

£4.98

(exc. VAT)

£5.975

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 3,495 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Pack*
5 - 45£0.996£4.98
50 - 95£0.87£4.35
100 - 245£0.776£3.88
250 - 995£0.698£3.49
1000 +£0.634£3.17

*price indicative

Packaging Options:
RS Stock No.:
279-9280
Mfr. Part No.:
3.0C30CA-M3/I
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Diode Configuration

2x Common Cathode Pair

Product Type

TVS Diode

Direction Type

Bi-Directional

Minimum Breakdown Voltage Vbr

33.3V

Mount Type

Surface

Package Type

SMC (DO-214AB)

Maximum Reverse Stand-off Voltage Vwm

30V

Pin Count

2

Peak Pulse Power Dissipation Pppm

3000W

Minimum Operating Temperature

-55°C

Test Current It

1mA

Maximum Peak Pulse Current Ippm

62A

ESD Protection

Yes

Clamping Voltage VC

48.4V

Number of Elements per Chip

1

Maximum Operating Temperature

175°C

Standards/Approvals

Meets MSL level 1 per J-STD-020, UL 94 V-0 Flammability, RoHS, Industrial Grade, Halogen-Free

Series

3.0C10CA-M3 thru 3.0C120CA-M3

Length

7.11mm

Height

2.62mm

Automotive Standard

No

Maximum Reverse Leakage Current

1μA

The Vishay surface mount Transzorb transient voltage suppressor with excellent clamping capability. It has very fast response time. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs.

RoHS compliant

Bidirectional

Halogen free

UL 94 V-0 flammability rating

Low incremental surge resistance
