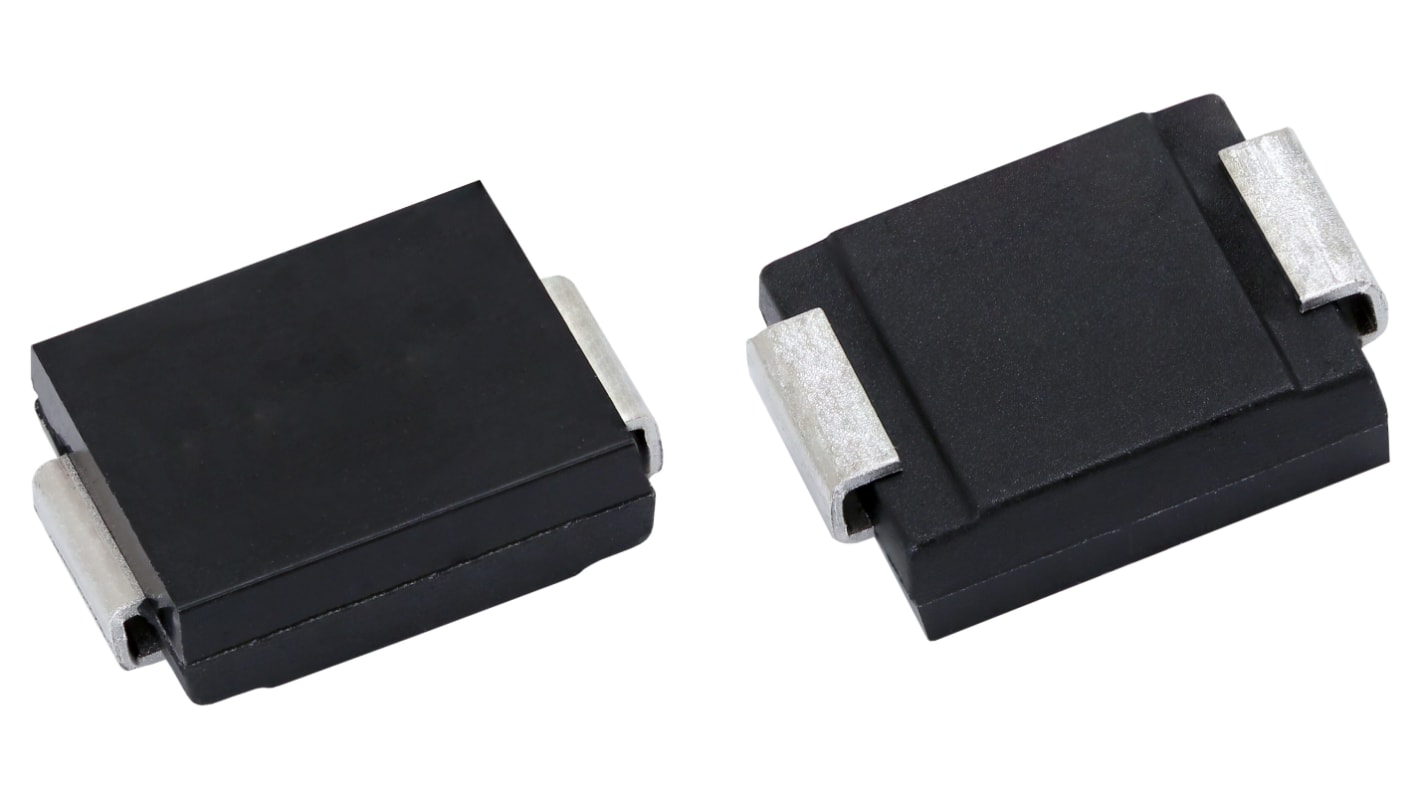

Vishay 3.0C18CA-M3/I 1-Element Bi-Directional TVS Diode, 3000 W, 2-Pin SMC (DO-214AB)

View all TVS Diodes
Bulk discount available

Subtotal (1 pack of 5 units)*

£3.81

(exc. VAT)

£4.57

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2,730 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Pack*
5 - 45£0.762£3.81
50 - 95£0.668£3.34
100 - 245£0.594£2.97
250 - 995£0.534£2.67
1000 +£0.486£2.43

*price indicative

Packaging Options:
RS Stock No.:
279-9267
Mfr. Part No.:
3.0C18CA-M3/I
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Direction Type

Bi-Directional

Diode Configuration

2x Common Cathode Pair

Product Type

TVS Diode

Minimum Breakdown Voltage Vbr

20V

Mount Type

Surface

Package Type

SMC (DO-214AB)

Maximum Reverse Stand-off Voltage Vwm

18V

Pin Count

2

Peak Pulse Power Dissipation Pppm

3000W

ESD Protection

Yes

Maximum Peak Pulse Current Ippm

103A

Test Current It

1mA

Minimum Operating Temperature

-55°C

Clamping Voltage VC

29.2V

Number of Elements per Chip

1

Maximum Operating Temperature

175°C

Length

7.11mm

Standards/Approvals

Meets MSL level 1 per J-STD-020, Industrial Grade, UL 94 V-0 Flammability, Halogen-Free, RoHS

Series

3.0C10CA-M3 thru 3.0C120CA-M3

Height

2.62mm

Maximum Reverse Leakage Current

2μA

Automotive Standard

No

The Vishay surface mount Transzorb transient voltage suppressor with excellent clamping capability. It has very fast response time. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs.

RoHS compliant

Bidirectional

Halogen free

UL 94 V-0 flammability rating

Low incremental surge resistance
