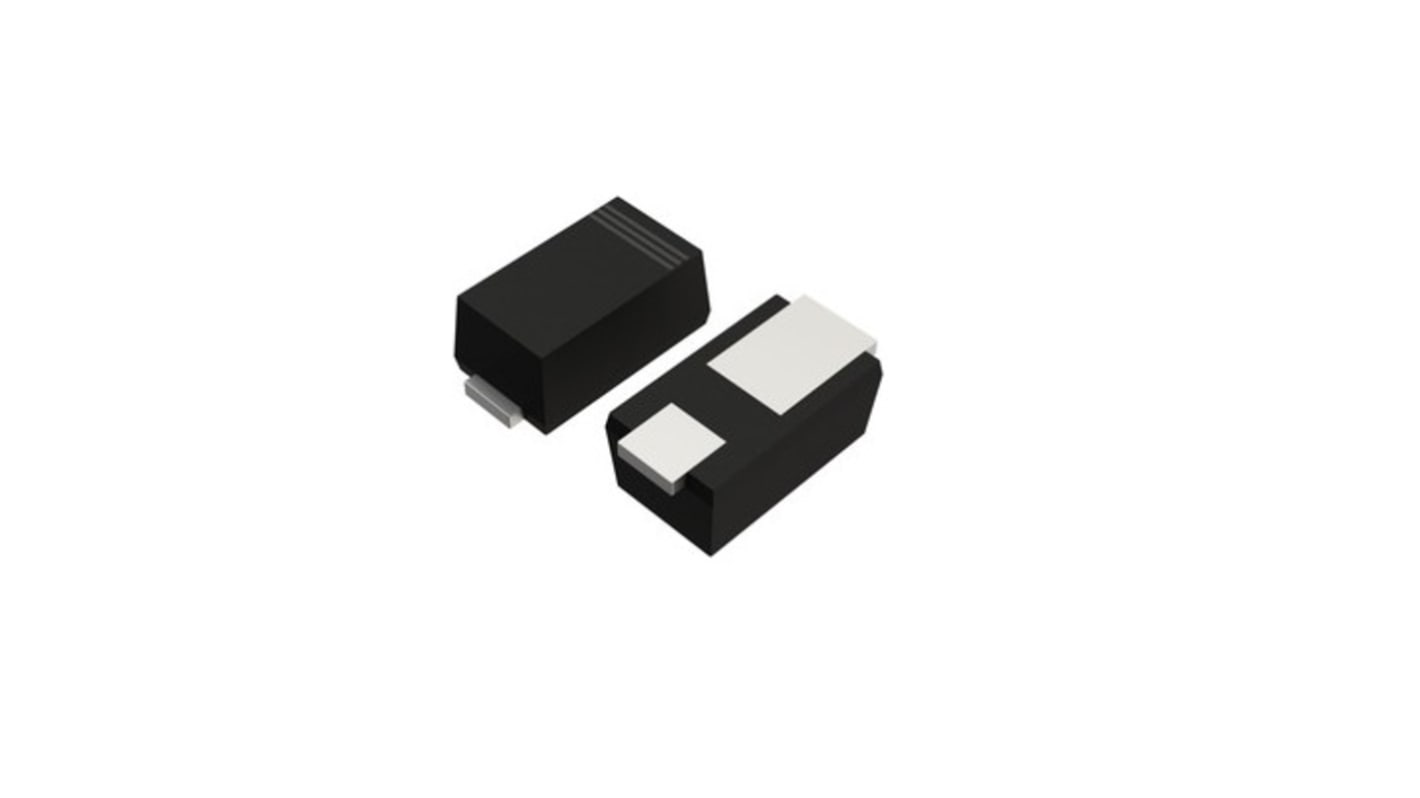

ROHM 1-Element Uni-Directional TVS Diode, 200 W, 2-Pin PMDE

View all TVS Diodes
Bulk discount available

Subtotal (1 reel of 3000 units)*

£309.00

(exc. VAT)

£372.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 24 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Reel*
3000 - 3000£0.103£309.00
6000 - 6000£0.093£279.00
9000 +£0.089£267.00

*price indicative

RS Stock No.:
265-5434
Mfr. Part No.:
VS100VLNVWMTFTR
Brand:
ROHM
Find similar products by selecting one or more attributes.
Select all

Brand

ROHM

Product Type

TVS Diode

Direction Type

Uni-Directional

Diode Configuration

Single

Minimum Breakdown Voltage Vbr

114V

Mount Type

Surface

Package Type

PMDE

Maximum Reverse Stand-off Voltage Vwm

100V

Pin Count

2

Peak Pulse Power Dissipation Pppm

200W

Clamping Voltage VC

162V

Maximum Peak Pulse Current Ippm

1.2A

Minimum Operating Temperature

-55°C

ESD Protection

Yes

Number of Elements per Chip

1

Maximum Operating Temperature

150°C

Standards/Approvals

RoHS, IEC61000-4-2

Automotive Standard

AEC-Q101

The ROHM TVS diode is used for surge protection and voltage regulation with a compact structure of silicon epitaxial planar. It achieves the same electrical characteristics as conventional ROHM products in the small PMDE package. PMDE package is highly reliable and has excellent heat dissipation efficiency.

High reliability

Small mould type
