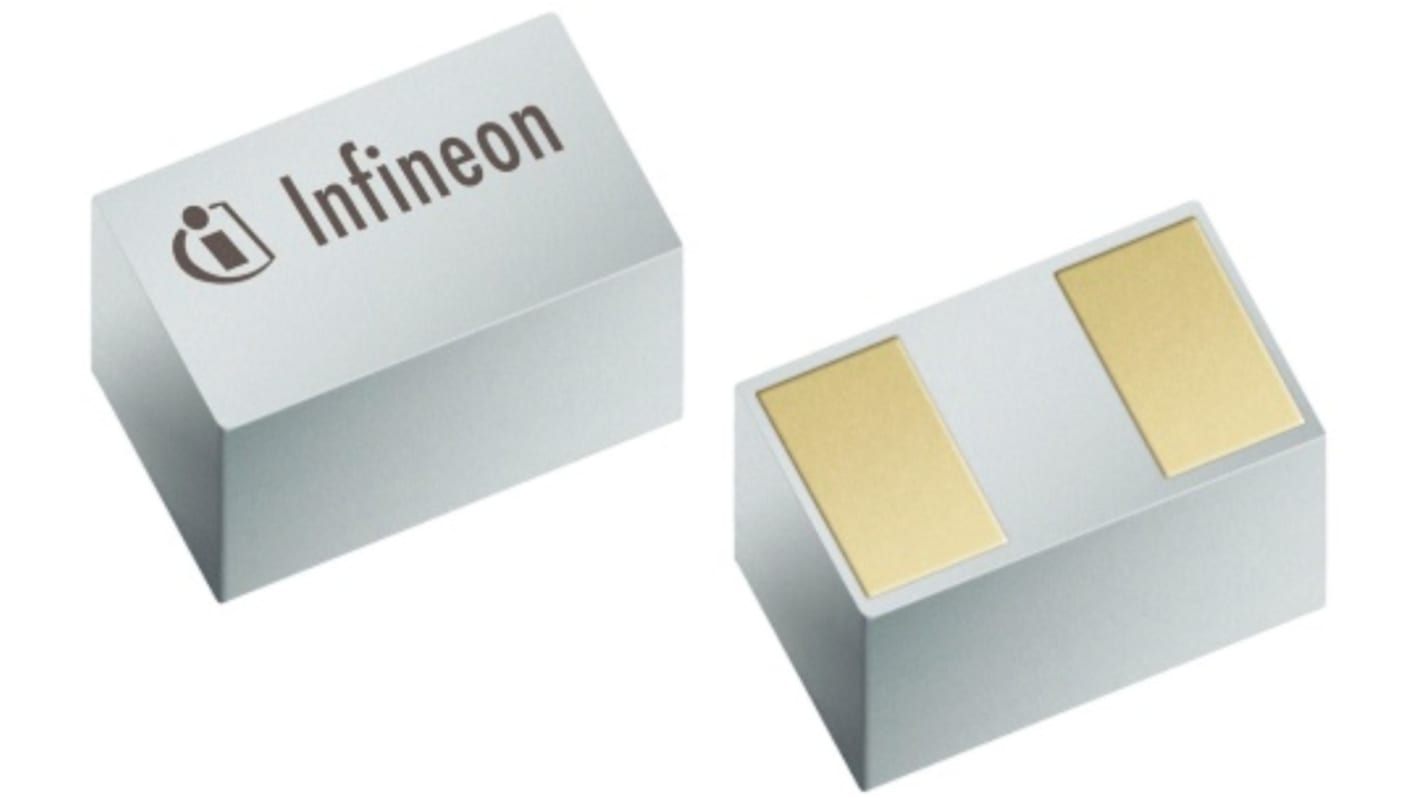

Infineon ESD259B1W0201E6327XTSA1 1-Element Bi-Directional ESD Protection Diode, 62.5 W, 2-Pin WLL-2
- RS Stock No.:
- 258-0842
- Mfr. Part No.:
- ESD259B1W0201E6327XTSA1
- Brand:
- Infineon
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 10 units)*
£1.07
(exc. VAT)
£1.28
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 14,710 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £0.107 | £1.07 |
| 100 - 490 | £0.102 | £1.02 |
| 500 - 990 | £0.063 | £0.63 |
| 1000 - 2490 | £0.054 | £0.54 |
| 2500 + | £0.049 | £0.49 |
*price indicative
- RS Stock No.:
- 258-0842
- Mfr. Part No.:
- ESD259B1W0201E6327XTSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Direction Type | Bi-Directional | |
| Product Type | ESD Protection Diode | |
| Diode Configuration | Single Bi-Directional | |
| Minimum Breakdown Voltage Vbr | -16V | |
| Mount Type | PCB | |
| Package Type | WLL-2 | |
| Maximum Reverse Stand-off Voltage Vwm | 16V | |
| Pin Count | 2 | |
| Peak Pulse Power Dissipation Pppm | 62.5W | |
| Maximum Peak Pulse Current Ippm | 2.5A | |
| Test Current It | 1mA | |
| Clamping Voltage VC | 24V | |
| Minimum Operating Temperature | -55°C | |
| ESD Protection | Yes | |
| Number of Elements per Chip | 1 | |
| Maximum Operating Temperature | 125°C | |
| Series | ESD259-B1-W0201 | |
| Width | 0.28mm | |
| Height | 0.15mm | |
| Length | 0.58mm | |
| Standards/Approvals | IEC61000-4-5, IEC61000-4-4, IEC61000-4-2 | |
| Maximum Reverse Leakage Current | 10nA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Direction Type Bi-Directional | ||
Product Type ESD Protection Diode | ||
Diode Configuration Single Bi-Directional | ||
Minimum Breakdown Voltage Vbr -16V | ||
Mount Type PCB | ||
Package Type WLL-2 | ||
Maximum Reverse Stand-off Voltage Vwm 16V | ||
Pin Count 2 | ||
Peak Pulse Power Dissipation Pppm 62.5W | ||
Maximum Peak Pulse Current Ippm 2.5A | ||
Test Current It 1mA | ||
Clamping Voltage VC 24V | ||
Minimum Operating Temperature -55°C | ||
ESD Protection Yes | ||
Number of Elements per Chip 1 | ||
Maximum Operating Temperature 125°C | ||
Series ESD259-B1-W0201 | ||
Width 0.28mm | ||
Height 0.15mm | ||
Length 0.58mm | ||
Standards/Approvals IEC61000-4-5, IEC61000-4-4, IEC61000-4-2 | ||
Maximum Reverse Leakage Current 10nA | ||
Automotive Standard No | ||
Infineon End Protection Diode, 24V Maximum Clamping Voltage, ± 2.5A Maximum Peak Pulse Current - ESD259B1W0201E6327XTSA1
This bi-directional ESD protection diode is designed to safeguard electronic circuits against electrostatic discharge. With a compact footprint of 0.58 x 0.28 x 0.15 mm, it is ideal for PCB mount applications. The diode provides robust protection to sensitive components by effectively clamping unwanted surge events, ensuring reliable operation in various electronic devices.
Features & Benefits
• Offers ±16V bi-directional maximum working voltage for versatile requirements
• Clamping voltage of 24V enhances protection during surge events
• Low leakage current of 10nA improves energy efficiency
• Peak pulse power dissipation of 62.5W ensures rapid response to surges
• Single bi-directional configuration simplifies circuit integration
• Low capacitance of 4.2pF minimises signal distortion
Applications
• Suitable for keypads, touchpads, and buttons in mobile devices
• Enhances ESD protection for LCD displays and cameras
• Ideal for protecting audio lines in consumer electronics
• Used for safeguarding modules such as Wi-Fi and fingerprint sensors
• Effective in notebooks, tablets, and desktop computers
What are the temperature operating limits for this device?
This diode operates efficiently from -55°C to +125°C, catering to a variety of environments.
How does this diode perform under surge conditions?
With a peak pulse current handling capability of ±2.5A, it ensures effective transient suppression as per IEC61000-4-5 standards.
What kind of applications would benefit from using this component?
It is particularly beneficial in designs requiring robust ESD protection for circuits like touchscreens and communication modules, enhancing reliability and performance.
Can this diode be used in both contact and air discharge ESD scenarios?
Yes, it meets the requirements for ESD protection according to IEC61000-4-2, handling ±15kV for both contact and air discharges effectively.
