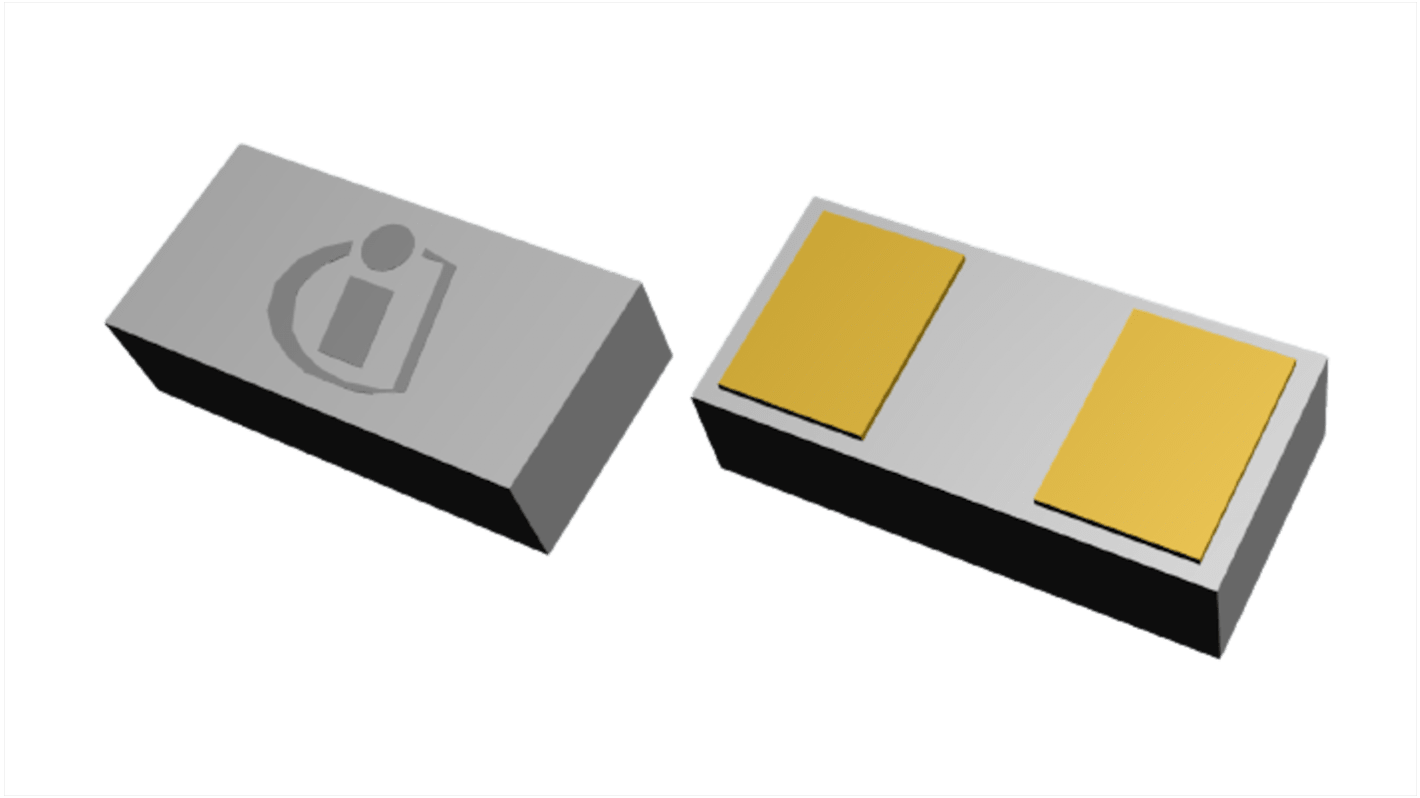

Infineon ESD150B1W0201E6327XTSA1 Bi-Directional ESD Protection Diode, 12 W, 2-Pin WLL-2
- RS Stock No.:
- 258-0815
- Mfr. Part No.:
- ESD150B1W0201E6327XTSA1
- Brand:
- Infineon
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 20 units)*
£1.24
(exc. VAT)
£1.48
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 11,380 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 20 - 180 | £0.062 | £1.24 |
| 200 - 480 | £0.059 | £1.18 |
| 500 - 980 | £0.034 | £0.68 |
| 1000 - 1980 | £0.031 | £0.62 |
| 2000 + | £0.028 | £0.56 |
*price indicative
- RS Stock No.:
- 258-0815
- Mfr. Part No.:
- ESD150B1W0201E6327XTSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Direction Type | Bi-Directional | |
| Diode Configuration | Single Bi-Directional | |
| Product Type | ESD Protection Diode | |
| Minimum Breakdown Voltage Vbr | 5.9V | |
| Mount Type | PCB | |
| Package Type | WLL-2 | |
| Maximum Reverse Stand-off Voltage Vwm | 3.3V | |
| Pin Count | 2 | |
| Peak Pulse Power Dissipation Pppm | 12W | |
| ESD Protection | Yes | |
| Test Current It | 1mA | |
| Minimum Operating Temperature | -55°C | |
| Clamping Voltage VC | 5.4V | |
| Maximum Peak Pulse Current Ippm | 3A | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | IEC61000-4-4, IEC61000-4-5, IEC61000-4-2 | |
| Series | ESD150-B1-W0201 | |
| Maximum Reverse Leakage Current | 10nA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Direction Type Bi-Directional | ||
Diode Configuration Single Bi-Directional | ||
Product Type ESD Protection Diode | ||
Minimum Breakdown Voltage Vbr 5.9V | ||
Mount Type PCB | ||
Package Type WLL-2 | ||
Maximum Reverse Stand-off Voltage Vwm 3.3V | ||
Pin Count 2 | ||
Peak Pulse Power Dissipation Pppm 12W | ||
ESD Protection Yes | ||
Test Current It 1mA | ||
Minimum Operating Temperature -55°C | ||
Clamping Voltage VC 5.4V | ||
Maximum Peak Pulse Current Ippm 3A | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals IEC61000-4-4, IEC61000-4-5, IEC61000-4-2 | ||
Series ESD150-B1-W0201 | ||
Maximum Reverse Leakage Current 10nA | ||
Automotive Standard No | ||
The Infineon ESD protection device has a bi-directional and symmetric I/V characteristic and excellent clamping performance.
Very low leakage current of IL = 0.1 nA
Small form factor SMD size 0201, low profile
