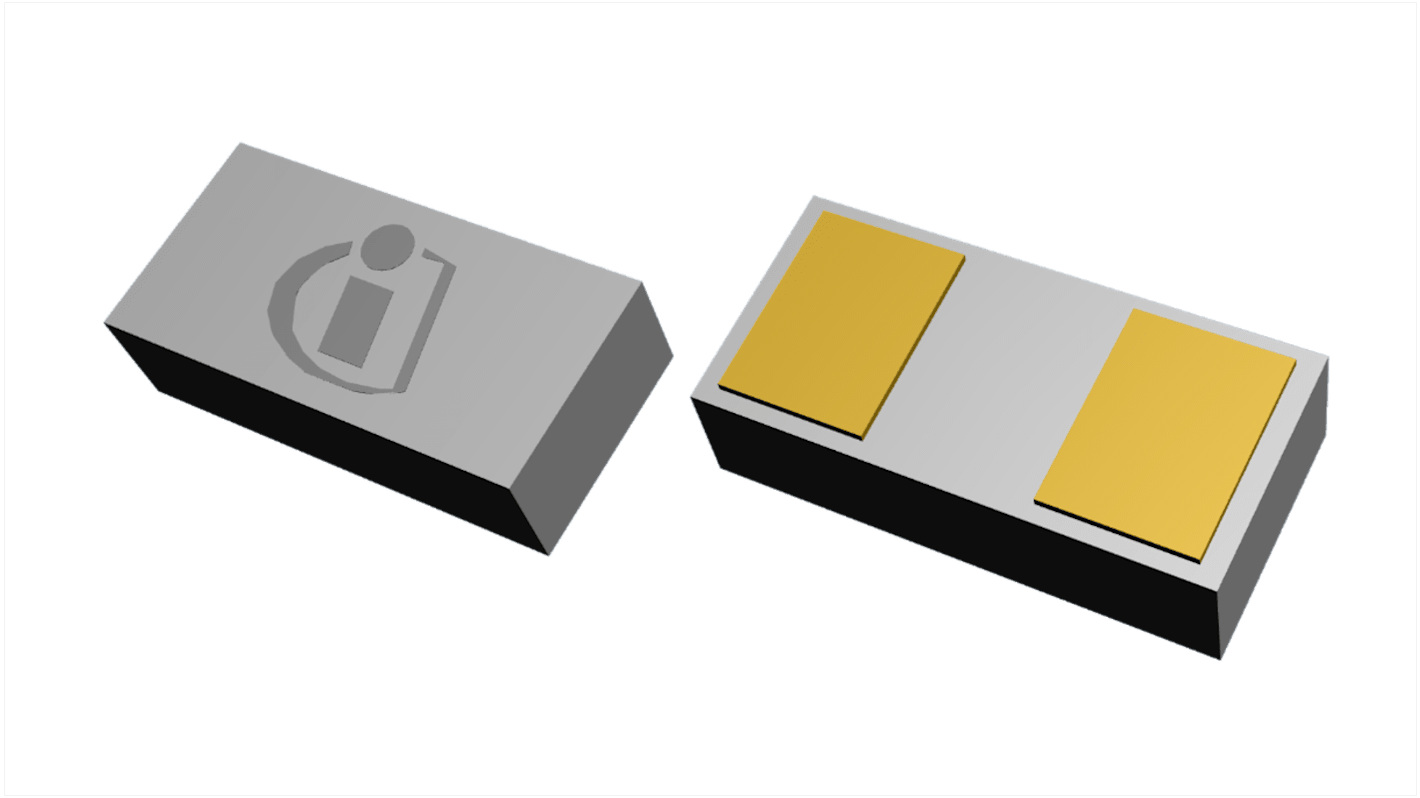

Infineon ESD106B1W0201E6327XTSA1 Bi-Directional ESD Protection Diode, 15 W, 2-Pin WLL-2
- RS Stock No.:
- 258-0796
- Mfr. Part No.:
- ESD106B1W0201E6327XTSA1
- Brand:
- Infineon
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 15 units)*
£1.58
(exc. VAT)
£1.89
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 14,685 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 15 - 135 | £0.105 | £1.58 |
| 150 - 735 | £0.099 | £1.49 |
| 750 - 1485 | £0.097 | £1.46 |
| 1500 - 3735 | £0.053 | £0.80 |
| 3750 + | £0.047 | £0.71 |
*price indicative
- RS Stock No.:
- 258-0796
- Mfr. Part No.:
- ESD106B1W0201E6327XTSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Direction Type | Bi-Directional | |
| Product Type | ESD Protection Diode | |
| Diode Configuration | Single Bi-Directional | |
| Mount Type | PCB | |
| Package Type | WLL-2 | |
| Maximum Reverse Stand-off Voltage Vwm | 5.5V | |
| Pin Count | 2 | |
| Peak Pulse Power Dissipation Pppm | 15W | |
| Clamping Voltage VC | 25V | |
| ESD Protection | Yes | |
| Maximum Peak Pulse Current Ippm | 1.5A | |
| Test Current It | 16A | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Series | ESD106-B1-W0201 | |
| Width | 280μm | |
| Length | 580μm | |
| Standards/Approvals | IEC61000-4-2, IEC61000-4-5, IEC61000-4-4 | |
| Height | 150μm | |
| Automotive Standard | No | |
| Maximum Reverse Leakage Current | 1nA | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Direction Type Bi-Directional | ||
Product Type ESD Protection Diode | ||
Diode Configuration Single Bi-Directional | ||
Mount Type PCB | ||
Package Type WLL-2 | ||
Maximum Reverse Stand-off Voltage Vwm 5.5V | ||
Pin Count 2 | ||
Peak Pulse Power Dissipation Pppm 15W | ||
Clamping Voltage VC 25V | ||
ESD Protection Yes | ||
Maximum Peak Pulse Current Ippm 1.5A | ||
Test Current It 16A | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Series ESD106-B1-W0201 | ||
Width 280μm | ||
Length 580μm | ||
Standards/Approvals IEC61000-4-2, IEC61000-4-5, IEC61000-4-4 | ||
Height 150μm | ||
Automotive Standard No | ||
Maximum Reverse Leakage Current 1nA | ||
Infineon ESD106-B1-W0201 Series ESD Protection Diode, 5.5V Maximum Reverse Stand-Off Voltage, 25V Clamping Voltage - ESD106B1W0201E6327XTSA1
This ESD protection diode provides bi-directional transient suppression for PCB-mounted circuits, designed to limit surge and electrostatic discharges in Compact surface-mount applications. It operates across a wide temperature range and is intended for use where low leakage and fast clamping are required to protect sensitive downstream components.
Features and Benefits:
• 15W Peak Pulse power delivers short-duration surge absorption
• 25V clamping voltage minimises voltage stress on protected nodes
• 1.5A Peak Pulse current handles moderate transient currents
• 1nA maximum reverse leakage reduces standby power loss
• Bi-directional configuration protects lines from both polarities
• 25V clamping voltage minimises voltage stress on protected nodes
• 1.5A Peak Pulse current handles moderate transient currents
• 1nA maximum reverse leakage reduces standby power loss
• Bi-directional configuration protects lines from both polarities
Applications
• Suitable for protecting signal lines on Compact PCBs
• Ideal for safeguarding interfaces against ESD events
• Used with low-voltage communication ports requiring low leakage
• Can be used for transient suppression on sensor inputs
• Useful in dense SMT designs requiring 0201 footprint
• Ideal for safeguarding interfaces against ESD events
• Used with low-voltage communication ports requiring low leakage
• Can be used for transient suppression on sensor inputs
• Useful in dense SMT designs requiring 0201 footprint
What package and mounting type does it use?
It arrives in a WLL-2 package for direct PCB mount on surface-mount assemblies.
What operating temperatures can it tolerate?
It functions from -55°C up to 125°C for varied environmental conditions.
How does the directional configuration affect circuit protection?
The bi-directional arrangement allows suppression of transients of either polarity without additional polarity-sensitive components.
What standards is it tested against for surge and ESD performance?
It conforms to IEC 61000-4-2, IEC 61000-4-4 and IEC 61000-4-5 test methods.
What are its key electrical ratings for Peak and steady conditions?
It has a maximum Peak Pulse power of 15W, a Peak Pulse current of 1.5A and a test current Value of 16A.
