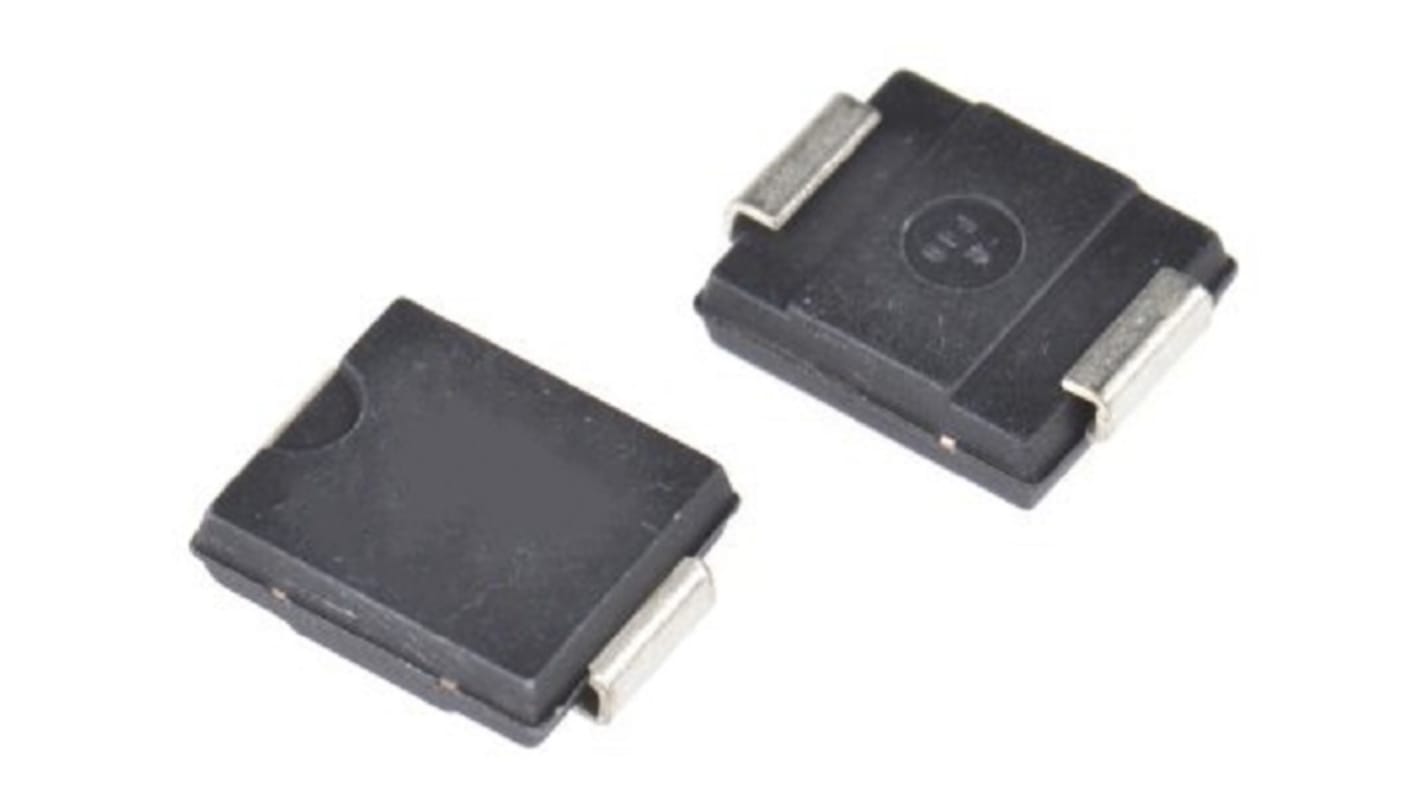

STMicroelectronics SMC50J58A Uni-Directional TVS Diode, 5000 W DO-214AB
- RS Stock No.:
- 248-7485
- Mfr. Part No.:
- SMC50J58A
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal (1 pack of 5 units)*
£7.45
(exc. VAT)
£8.95
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,305 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £1.49 | £7.45 |
| 25 - 45 | £1.416 | £7.08 |
| 50 - 120 | £1.272 | £6.36 |
| 125 - 245 | £1.142 | £5.71 |
| 250 + | £1.09 | £5.45 |
*price indicative
- RS Stock No.:
- 248-7485
- Mfr. Part No.:
- SMC50J58A
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Diode Configuration | Single | |
| Direction Type | Uni-Directional | |
| Product Type | TVS Diode | |
| Minimum Breakdown Voltage Vbr | 64.6V | |
| Mount Type | Surface | |
| Package Type | DO-214AB | |
| Maximum Reverse Stand-off Voltage Vwm | 100V | |
| Peak Pulse Power Dissipation Pppm | 5000W | |
| Test Current It | 1μA | |
| Minimum Operating Temperature | -55°C | |
| Clamping Voltage VC | 93.6V | |
| Maximum Peak Pulse Current Ippm | 53A | |
| ESD Protection | Yes | |
| Maximum Operating Temperature | 175°C | |
| Height | 2.45mm | |
| Series | SMC50J TVS | |
| Standards/Approvals | IEC 61000-4-4, IPC7531, IEC 61000-4-2, J-STD-020, MIL-STD-75, UL | |
| Width | 8.15 mm | |
| Length | 6.25mm | |
| Automotive Standard | AEC-Q101 | |
| Maximum Reverse Leakage Current | 1μA | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Diode Configuration Single | ||
Direction Type Uni-Directional | ||
Product Type TVS Diode | ||
Minimum Breakdown Voltage Vbr 64.6V | ||
Mount Type Surface | ||
Package Type DO-214AB | ||
Maximum Reverse Stand-off Voltage Vwm 100V | ||
Peak Pulse Power Dissipation Pppm 5000W | ||
Test Current It 1μA | ||
Minimum Operating Temperature -55°C | ||
Clamping Voltage VC 93.6V | ||
Maximum Peak Pulse Current Ippm 53A | ||
ESD Protection Yes | ||
Maximum Operating Temperature 175°C | ||
Height 2.45mm | ||
Series SMC50J TVS | ||
Standards/Approvals IEC 61000-4-4, IPC7531, IEC 61000-4-2, J-STD-020, MIL-STD-75, UL | ||
Width 8.15 mm | ||
Length 6.25mm | ||
Automotive Standard AEC-Q101 | ||
Maximum Reverse Leakage Current 1μA | ||
The STMicroelectronics SMC50J TVS series are TVS diodes designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2, MIL STD 883 Method 3015, and electrical overstress such as IEC 61000-4-4 and 5. They are used for surges below 5000 W 10 per 1000 μs. This planar technology makes it compatible with high end equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time.
Stand off voltage range from 5 V to 100 V
Unidirectional type
Low leakage current of 0.2 μA at 25 degree C
Operating Tj max is 175 degree C
JEDEC registered package outline
Resin meets UL94, V0
Lead finishing is matte tin plating
