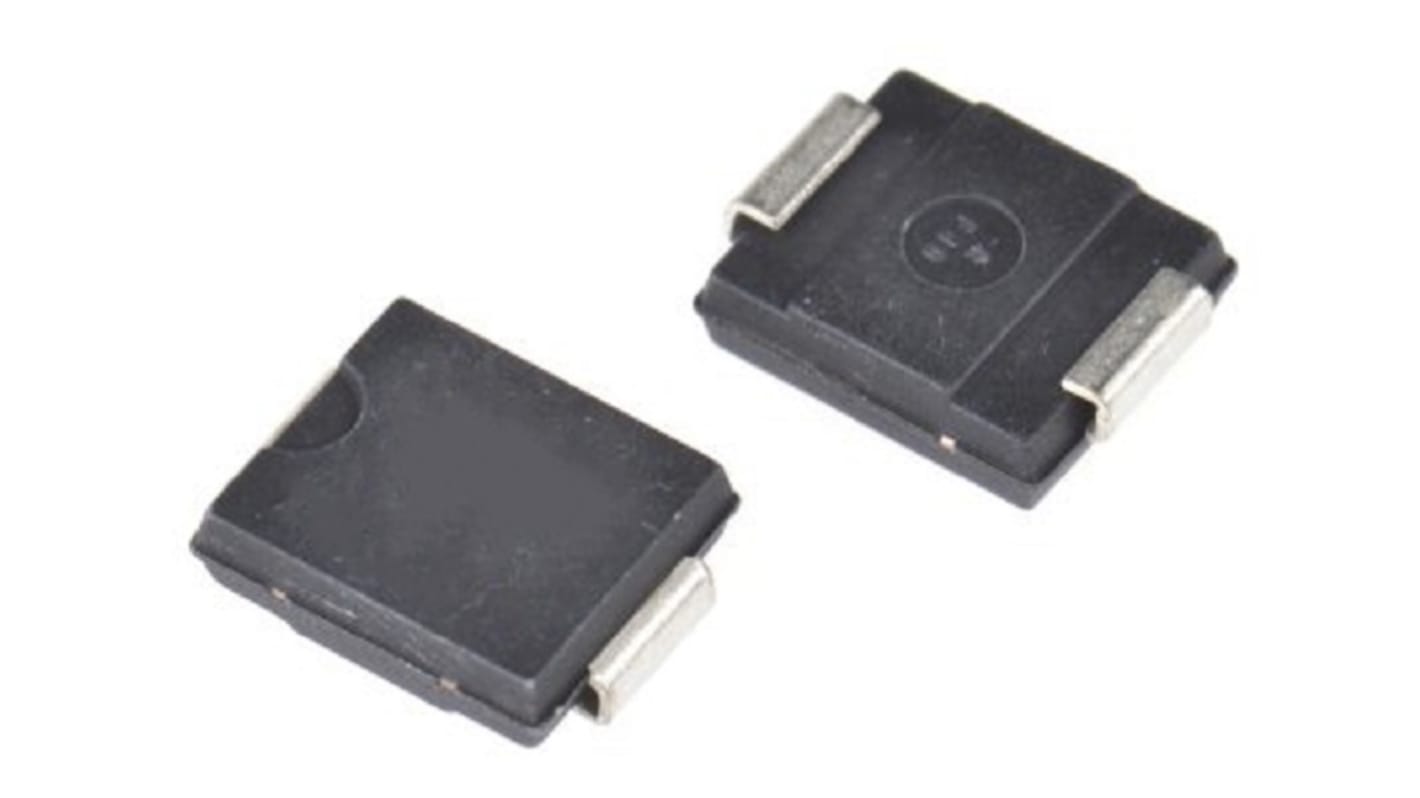

STMicroelectronics Uni-Directional TVS Diode, 5000 W DO-214AB

View all TVS Diodes

Subtotal (1 reel of 2500 units)*

£1,445.00

(exc. VAT)

£1,735.00

(inc. VAT)

Add to Basket
Select or type quantity
Orders below £50.00 (exc. VAT) cost £6.95.
Temporarily out of stock
  • Shipping from 23 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
2500 +£0.578£1,445.00

*price indicative

RS Stock No.:
248-7486
Mfr. Part No.:
SMC50J6.5A
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Direction Type

Uni-Directional

Product Type

TVS Diode

Diode Configuration

Single

Minimum Breakdown Voltage Vbr

7.2V

Mount Type

Surface

Package Type

DO-214AB

Maximum Reverse Stand-off Voltage Vwm

100V

Peak Pulse Power Dissipation Pppm

5000W

ESD Protection

Yes

Clamping Voltage VC

11.2V

Maximum Peak Pulse Current Ippm

447A

Minimum Operating Temperature

-55°C

Test Current It

1μA

Maximum Operating Temperature

175°C

Series

SMC50J TVS

Standards/Approvals

IEC 61000-4-2, IEC 61000-4-4, IPC7531, J-STD-020, MIL-STD-75, UL

Length

6.25mm

Width

8.15 mm

Height

2.45mm

Automotive Standard

AEC-Q101

Maximum Reverse Leakage Current

1μA

The STMicroelectronics SMC50J TVS series are TVS diodes designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2, MIL STD 883 Method 3015, and electrical overstress such as IEC 61000-4-4 and 5. They are used for surges below 5000 W 10 per 1000 μs. This planar technology makes it compatible with high end equipment and SMPS where low leakage current and high junction temperature are required to provide reliability and stability over time.

Stand off voltage range from 5 V to 100 V

Unidirectional type

Low leakage current of 0.2 μA at 25 degree C

Operating Tj max is 175 degree C

JEDEC registered package outline

Resin meets UL94, V0

Lead finishing is matte tin plating
