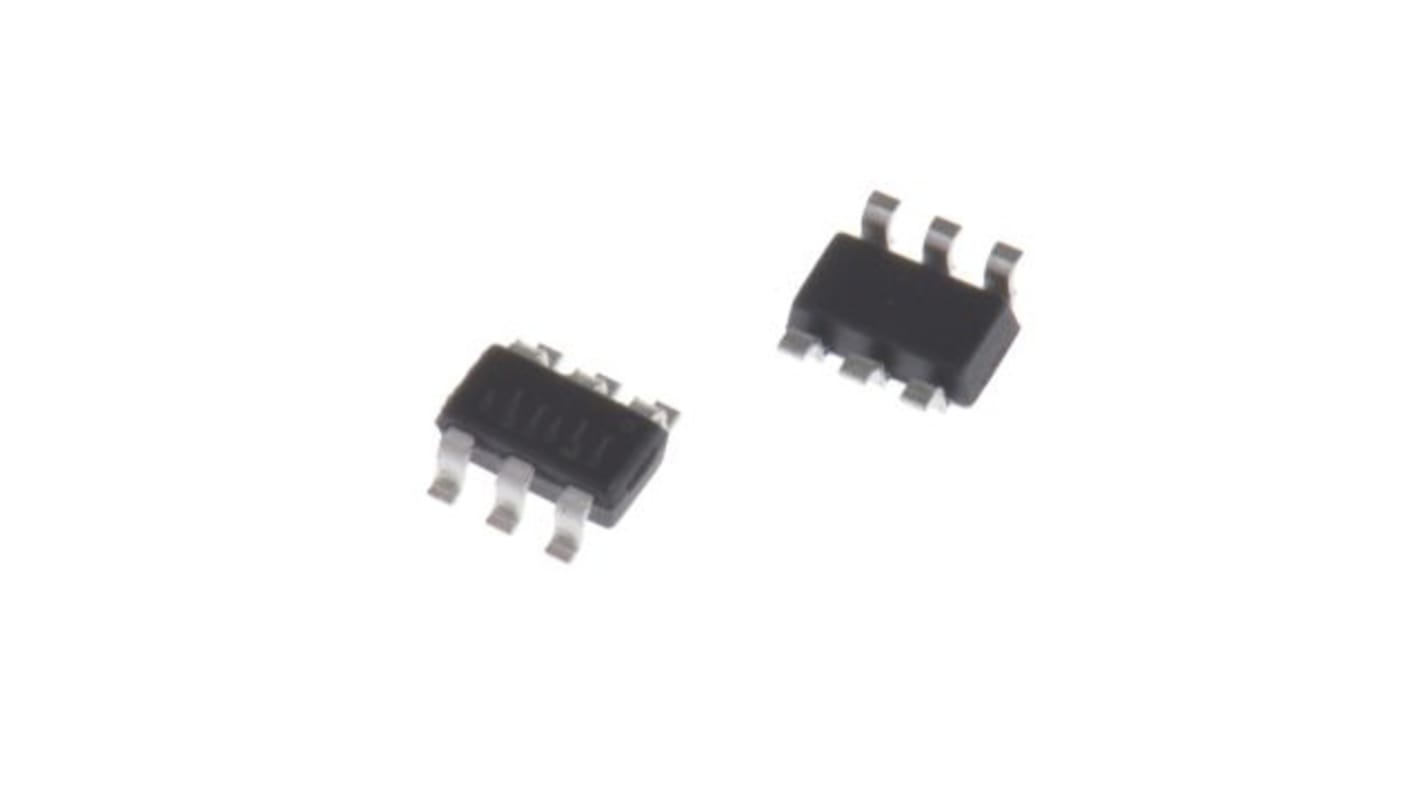

Diodes Inc DT2041-04SO-7, Quad-Element TVS Diode Array, 6-Pin SOT-26
- RS Stock No.:
- 246-6914
- Mfr. Part No.:
- DT2041-04SO-7
- Brand:
- DiodesZetex
Subtotal (1 reel of 3000 units)*
£267.00
(exc. VAT)
£321.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
3000 + | £0.089 | £267.00 |
*price indicative
- RS Stock No.:
- 246-6914
- Mfr. Part No.:
- DT2041-04SO-7
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | DiodesZetex | |
Maximum Clamping Voltage | 9V | |
Minimum Breakdown Voltage | 6V | |
Mounting Type | Surface Mount | |
Package Type | SOT-26 | |
Pin Count | 6 | |
Number of Elements per Chip | 4 | |
Select all | ||
---|---|---|
Brand DiodesZetex | ||
Maximum Clamping Voltage 9V | ||
Minimum Breakdown Voltage 6V | ||
Mounting Type Surface Mount | ||
Package Type SOT-26 | ||
Pin Count 6 | ||
Number of Elements per Chip 4 | ||
The DiodesZetex makes a 4 channel low capacitance TVS Diode Array, a high-performance device suitable for protecting four high speed I/Os. These devices are assembled in SOT26 package and have high ESD surge capability and low capacitance. Typically used at high-speed ports such as USB 2.0, IEEE1394, Serial ATA, DVI, HDMI, PCI, etc. The device package is completely Lead, halogen, and Antimony free. The operating temperature of this device is -55°C to 85°C.
It has low Clamping voltage of typical 9V at 10A 100ns, TLP, I/O to VSS
typical 8V at 10A 100ns, TLP, VCC to VSS It offers a TLP dynamic resistance of 0.25Ω The low Channel input capacitance of typical 1.0pF The device offers 4 Channel of ESD protection
