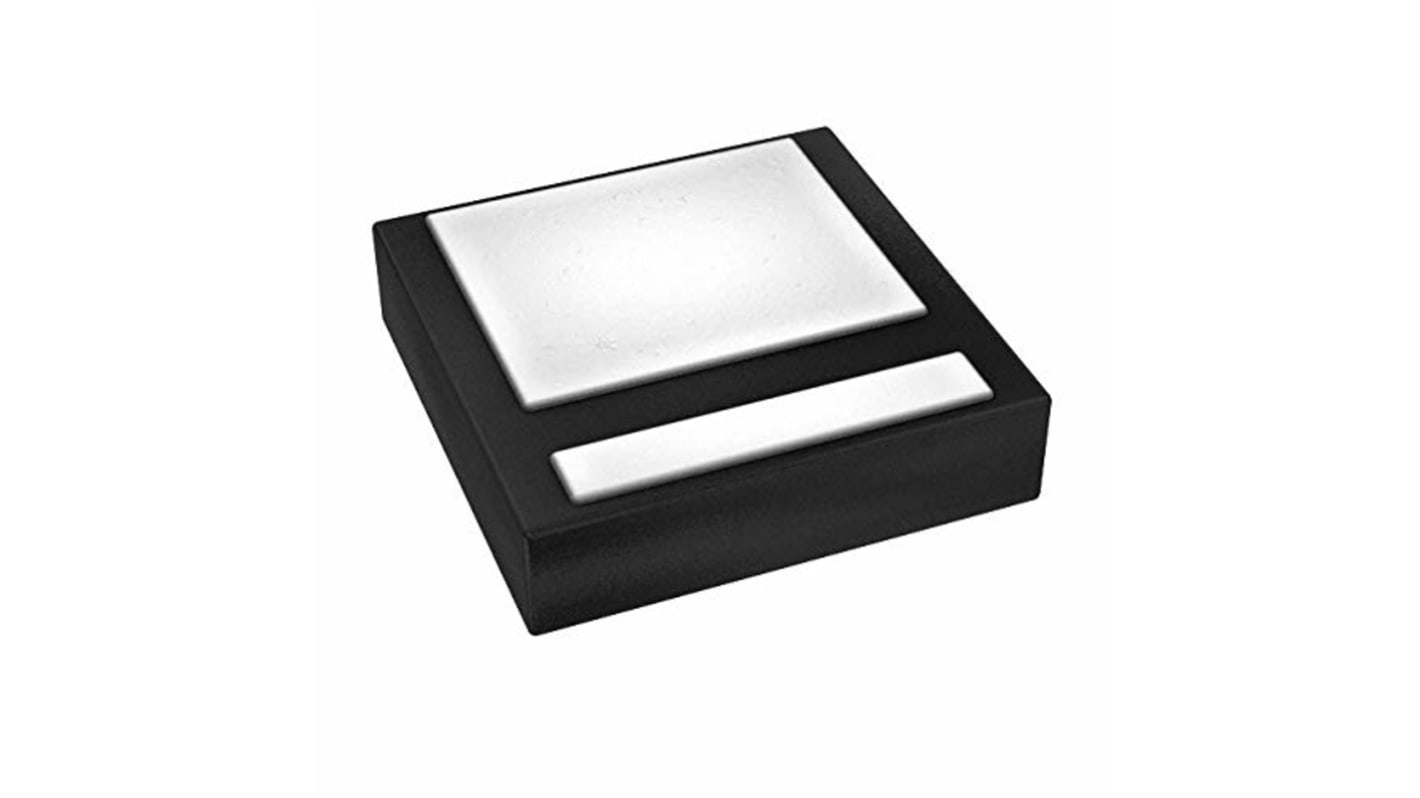

DiodesZetex 1-Element Bi-Directional TVS Diode, 2200 W, 2-Pin UDFN-1616-2
- RS Stock No.:
- 246-6693
- Mfr. Part No.:
- D26V0H1U2LP16-7
- Brand:
- DiodesZetex
Bulk discount available
View bulk pricing optionsSubtotal (1 reel of 3000 units)*
£201.00
(exc. VAT)
£240.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 3,000 unit(s) shipping from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 - 6000 | £0.067 | £201.00 |
| 9000 + | £0.066 | £198.00 |
*price indicative
- RS Stock No.:
- 246-6693
- Mfr. Part No.:
- D26V0H1U2LP16-7
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | TVS Diode | |
| Direction Type | Bi-Directional | |
| Minimum Breakdown Voltage Vbr | 28V | |
| Mount Type | Surface | |
| Package Type | UDFN-1616-2 | |
| Maximum Reverse Stand-off Voltage Vwm | 26V | |
| Pin Count | 2 | |
| Peak Pulse Power Dissipation Pppm | 2200W | |
| Maximum Peak Pulse Current Ippm | 50A | |
| ESD Protection | Yes | |
| Minimum Operating Temperature | -55°C | |
| Clamping Voltage VC | 32V | |
| Number of Elements per Chip | 1 | |
| Width | 1.6mm | |
| Standards/Approvals | ISO, EC 61000-4-2, RoHS, UL | |
| Height | 0.5mm | |
| Length | 1.6mm | |
| Automotive Standard | AEC-Q101 | |
| Maximum Reverse Leakage Current | 100nA | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type TVS Diode | ||
Direction Type Bi-Directional | ||
Minimum Breakdown Voltage Vbr 28V | ||
Mount Type Surface | ||
Package Type UDFN-1616-2 | ||
Maximum Reverse Stand-off Voltage Vwm 26V | ||
Pin Count 2 | ||
Peak Pulse Power Dissipation Pppm 2200W | ||
Maximum Peak Pulse Current Ippm 50A | ||
ESD Protection Yes | ||
Minimum Operating Temperature -55°C | ||
Clamping Voltage VC 32V | ||
Number of Elements per Chip 1 | ||
Width 1.6mm | ||
Standards/Approvals ISO, EC 61000-4-2, RoHS, UL | ||
Height 0.5mm | ||
Length 1.6mm | ||
Automotive Standard AEC-Q101 | ||
Maximum Reverse Leakage Current 100nA | ||
The DiodesZetex makes a 1 channel, unidirectional new generation TVS, designed to protect sensitive electronics from the damage due to ESD. The combination of small size and high ESD surge capability makes it ideal for use in portable applications such as cellular phones, digital cameras, and MP3 players.
Low profile package and ultra-small PCB footprint area, suitable for compact portable electronics Provides ESD protection for Air ±30kV, Contact ±30kV 1 Channel of ESD protection Low channel input capacitance
