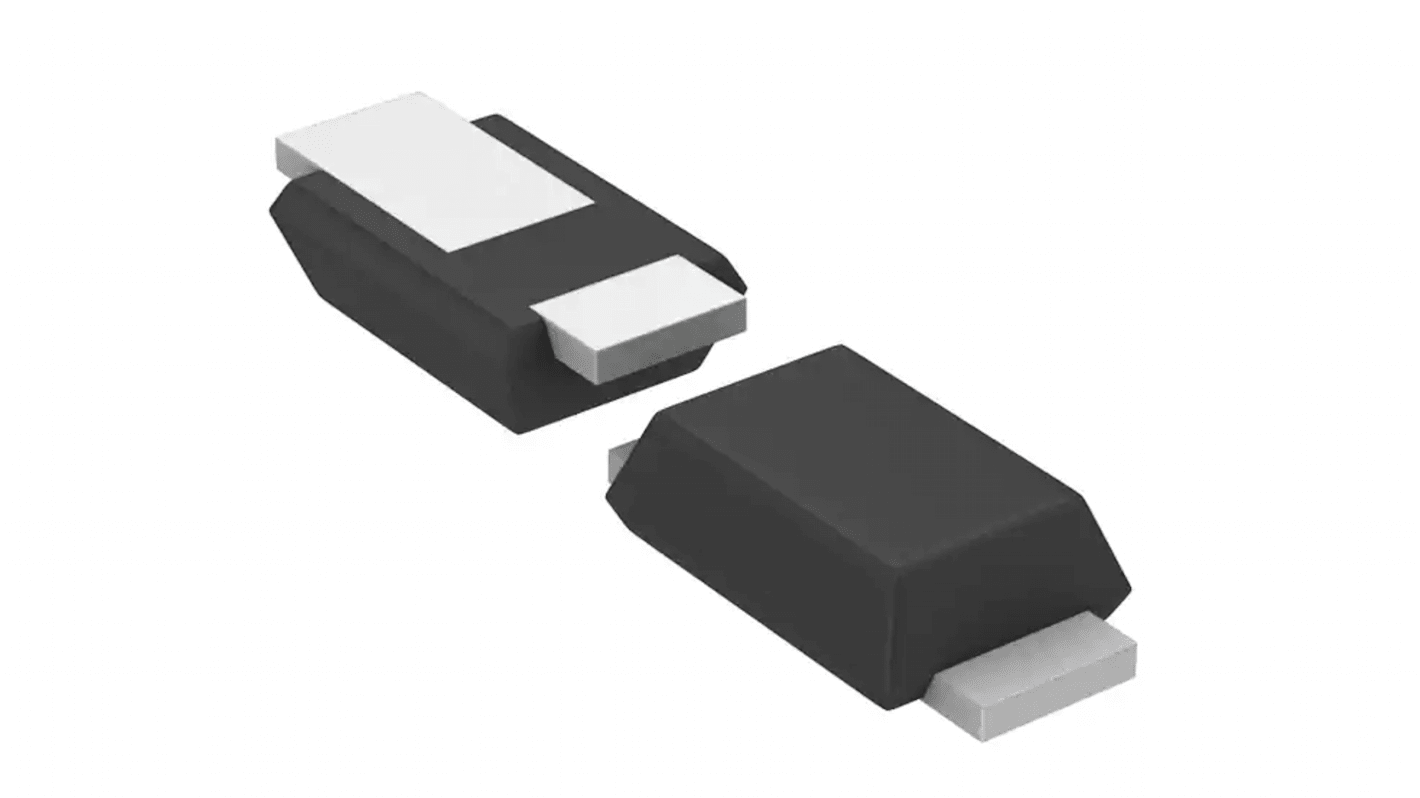

ROHM Uni-Directional TVS Diode, 1 W PMDE

View all TVS Diodes
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
246-4075
Mfr. Part No.:
VS5V0UA1VWMTR
Brand:
ROHM
Find similar products by selecting one or more attributes.
Select all

Brand

ROHM

Product Type

TVS Diode

Direction Type

Uni-Directional

Diode Configuration

Single

Minimum Breakdown Voltage Vbr

6.4V

Mount Type

Surface, Through Hole

Package Type

PMDE

Maximum Reverse Stand-off Voltage Vwm

5V

Peak Pulse Power Dissipation Pppm

1W

ESD Protection

Yes

Minimum Operating Temperature

-55°C

Maximum Peak Pulse Current Ippm

21.7A

Clamping Voltage VC

9.2V

Maximum Operating Temperature

150°C

Series

VS

Standards/Approvals

IEC 61000-4-2, RoHS

Length

2.3mm

Height

1mm

Automotive Standard

No

Maximum Reverse Leakage Current

0.1μA

The ROHM VS series is transient voltage suppressor which are available in PMDE package and have silicon epitaxial planar structure and can be used in surge protection and voltage regulation applications.

High reliability

Small mold type
