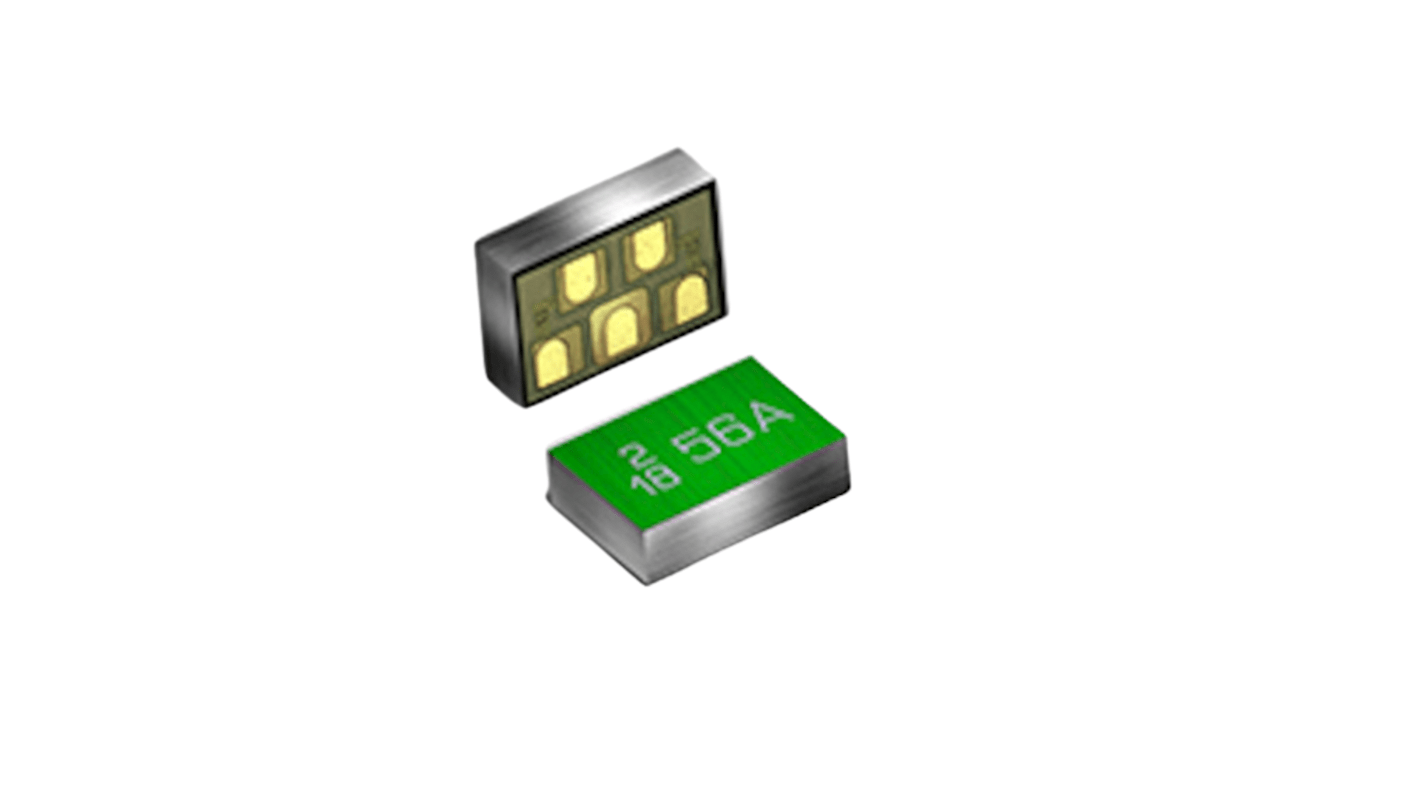

Vishay VEMI256A-SD2-G4-08 TVS Diode, 5-Pin CLP1007-5M
- RS Stock No.:
- 244-9099
- Mfr. Part No.:
- VEMI256A-SD2-G4-08
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 50 units)*
£11.20
(exc. VAT)
£13.45
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 450 | £0.224 | £11.20 |
| 500 - 1200 | £0.212 | £10.60 |
| 1250 - 2450 | £0.201 | £10.05 |
| 2500 - 4950 | £0.19 | £9.50 |
| 5000 + | £0.179 | £8.95 |
*price indicative
- RS Stock No.:
- 244-9099
- Mfr. Part No.:
- VEMI256A-SD2-G4-08
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | TVS Diode | |
| Minimum Breakdown Voltage Vbr | 6V | |
| Mount Type | Surface | |
| Package Type | CLP1007-5M | |
| Maximum Reverse Stand-off Voltage Vwm | 5.5V | |
| Pin Count | 5 | |
| Minimum Operating Temperature | -55°C | |
| ESD Protection | Yes | |
| Clamping Voltage VC | 10V | |
| Maximum Peak Pulse Current Ippm | 8.5A | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | RoHS | |
| Height | 0.29mm | |
| Length | 1.03mm | |
| Series | VEMI256A-SD2 | |
| Automotive Standard | AEC-Q101 | |
| Maximum Reverse Leakage Current | 0.5μA | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type TVS Diode | ||
Minimum Breakdown Voltage Vbr 6V | ||
Mount Type Surface | ||
Package Type CLP1007-5M | ||
Maximum Reverse Stand-off Voltage Vwm 5.5V | ||
Pin Count 5 | ||
Minimum Operating Temperature -55°C | ||
ESD Protection Yes | ||
Clamping Voltage VC 10V | ||
Maximum Peak Pulse Current Ippm 8.5A | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals RoHS | ||
Height 0.29mm | ||
Length 1.03mm | ||
Series VEMI256A-SD2 | ||
Automotive Standard AEC-Q101 | ||
Maximum Reverse Leakage Current 0.5μA | ||
The Vishay's EMI filter with ESD protection have two channel and comes in ultra compact package.
Ultra compact CLP1007-5M package
2-channel EMI-filter and ESD-protection
Low leakage current
RoHS compliant
