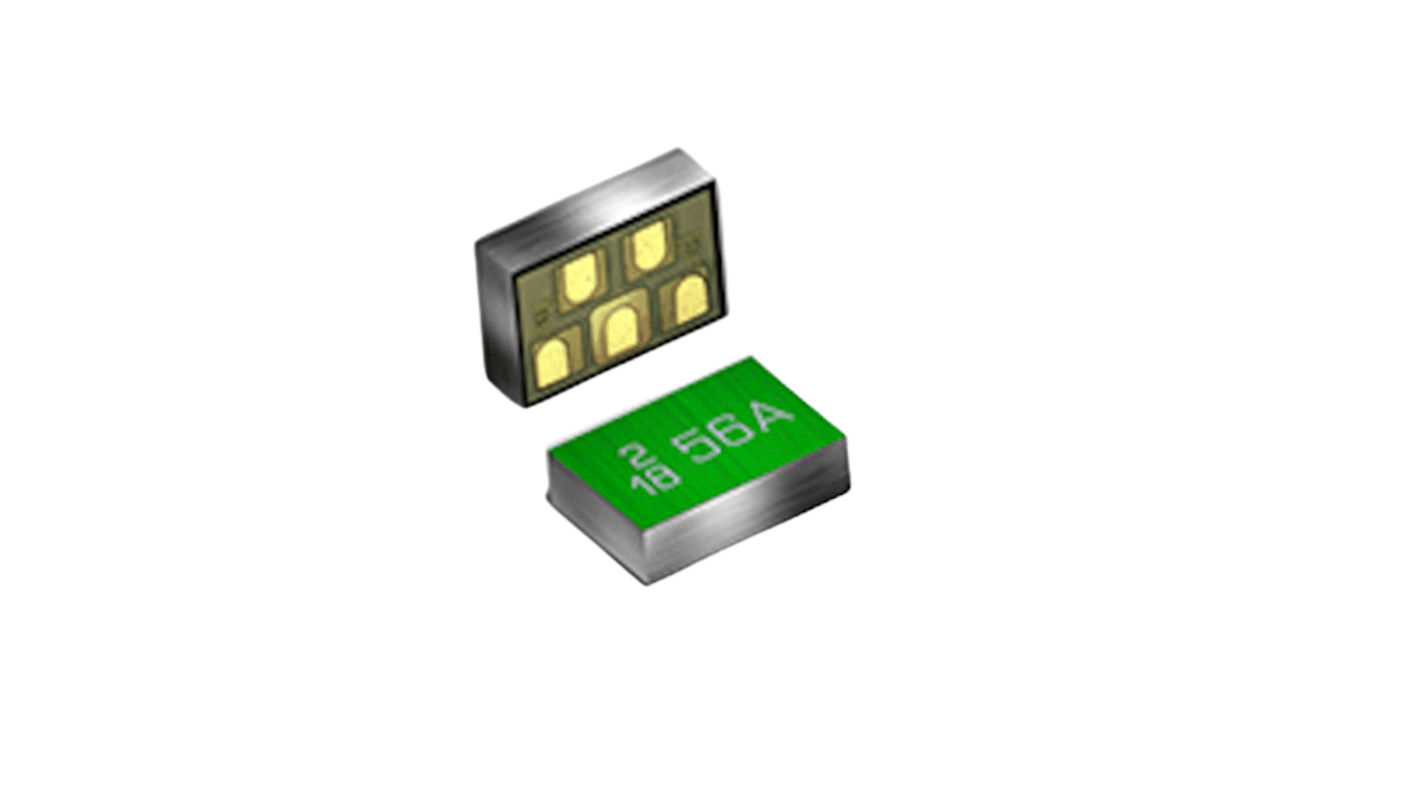

Name: Vishay TVS Diode, 5-Pin CLP1007-5M
Brand: Vishay
SKU: 244-9098
Price: 0.09 GBP
Availability: Discontinued

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Vishay
	Product Type	TVS Diode
	Minimum Breakdown Voltage Vbr	6V
	Mount Type	Surface
	Package Type	CLP1007-5M
	Maximum Reverse Stand-off Voltage Vwm	5.5V
	Pin Count	5
	Minimum Operating Temperature	-55°C
	Clamping Voltage VC	10V
	Maximum Peak Pulse Current Ippm	8.5A
	ESD Protection	Yes
	Maximum Operating Temperature	175°C
	Length	1.03mm
	Height	0.29mm
	Standards/Approvals	RoHS
	Width	0.73mm
	Series	VEMI256A-SD2
	Maximum Reverse Leakage Current	0.5μA
	Automotive Standard	AEC-Q101

	Select all
	Brand Vishay
	Product Type TVS Diode
	Minimum Breakdown Voltage Vbr 6V
	Mount Type Surface
	Package Type CLP1007-5M
	Maximum Reverse Stand-off Voltage Vwm 5.5V
	Pin Count 5
	Minimum Operating Temperature -55°C
	Clamping Voltage VC 10V
	Maximum Peak Pulse Current Ippm 8.5A
	ESD Protection Yes
	Maximum Operating Temperature 175°C
	Length 1.03mm
	Height 0.29mm
	Standards/Approvals RoHS
	Width 0.73mm
	Series VEMI256A-SD2
	Maximum Reverse Leakage Current 0.5μA
	Automotive Standard AEC-Q101

The Vishay's EMI filter with ESD protection have two channel and comes in ultra compact package.

Ultra compact CLP1007-5M package

2-channel EMI-filter and ESD-protection

Low leakage current

RoHS compliant

Vishay TVS Diode, 5-Pin CLP1007-5M
