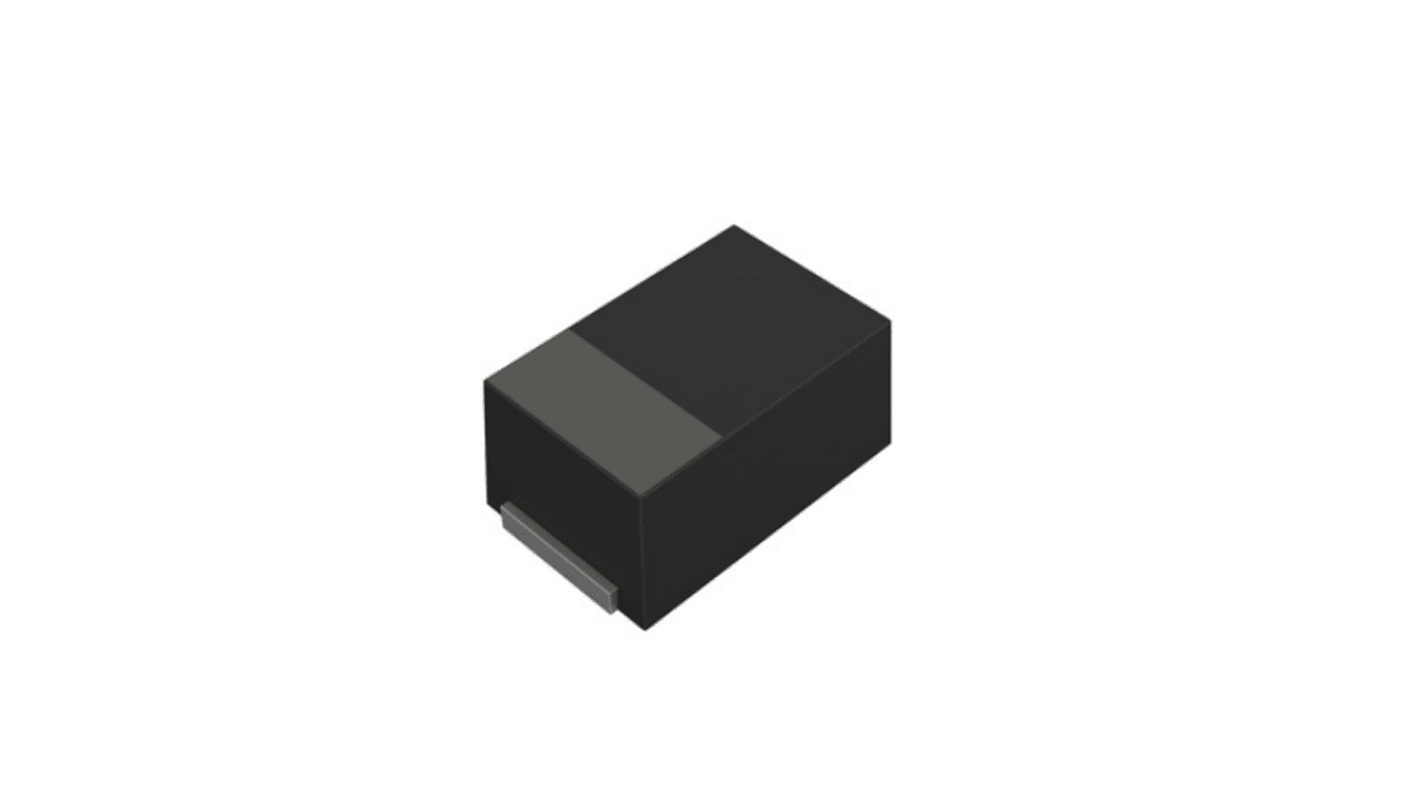

ROHM Uni-Directional TVS Diode, 200 W SOD-323FL-2
- RS Stock No.:
- 244-0136
- Mfr. Part No.:
- UDZUVTE-175.6B
- Brand:
- ROHM
Subtotal (1 reel of 3000 units)*
£234.00
(exc. VAT)
£282.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.078 | £234.00 |
*price indicative
- RS Stock No.:
- 244-0136
- Mfr. Part No.:
- UDZUVTE-175.6B
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Diode Configuration | Single | |
| Direction Type | Uni-Directional | |
| Product Type | TVS Diode | |
| Minimum Breakdown Voltage Vbr | 5.49V | |
| Mount Type | Surface | |
| Package Type | SOD-323FL-2 | |
| Maximum Reverse Stand-off Voltage Vwm | 3.3V | |
| Peak Pulse Power Dissipation Pppm | 200W | |
| ESD Protection | Yes | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | RoHS, IEC61000-4-2 | |
| Height | 2.7mm | |
| Length | 1.35mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Diode Configuration Single | ||
Direction Type Uni-Directional | ||
Product Type TVS Diode | ||
Minimum Breakdown Voltage Vbr 5.49V | ||
Mount Type Surface | ||
Package Type SOD-323FL-2 | ||
Maximum Reverse Stand-off Voltage Vwm 3.3V | ||
Peak Pulse Power Dissipation Pppm 200W | ||
ESD Protection Yes | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals RoHS, IEC61000-4-2 | ||
Height 2.7mm | ||
Length 1.35mm | ||
Automotive Standard AEC-Q101 | ||
The ROHM TVS diode has ideal for ESD protection electronic devices. This high surge resistance provide superior protection. It has storage temperature range of -55°C to 150°C and capacitance of 8.0 pF. It comes in minimum 3000 unit pack with embossed tape packing.
High reliability Small mold type
Package(JEITA)SC-90A Package Code SOD-323FL Package Size 1.25mmx2.5mm (t=0.9)
