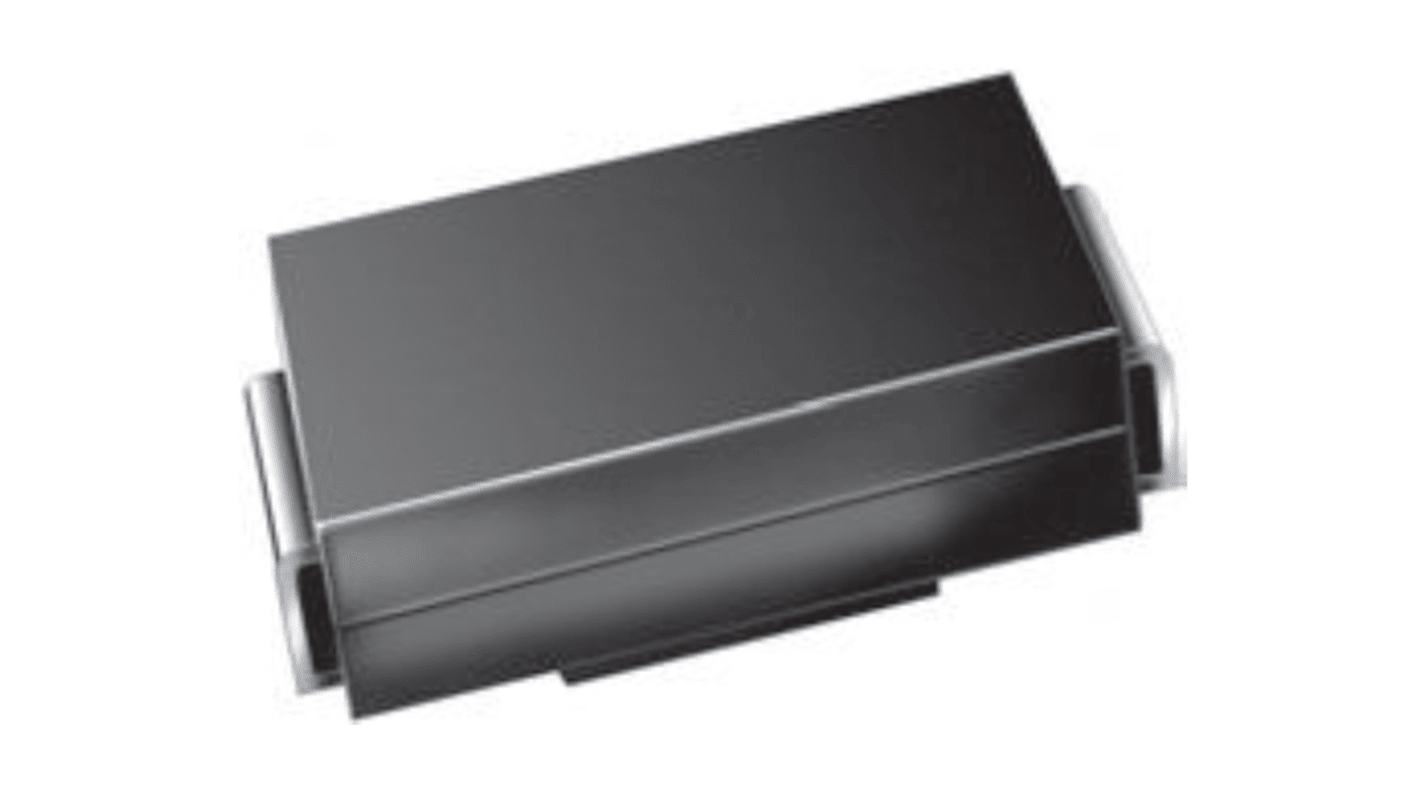

Vishay Bi-Directional TVS Diode, 400 W DO-214AC
- RS Stock No.:
- 243-6971
- Mfr. Part No.:
- SMAJ9.0CAHM3_A/H
- Brand:
- Vishay
Subtotal (1 reel of 1800 units)*
£162.00
(exc. VAT)
£198.00
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 7,200 unit(s), ready to ship
Units | Per unit | Per Reel* |
|---|---|---|
| 1800 + | £0.09 | £162.00 |
*price indicative
- RS Stock No.:
- 243-6971
- Mfr. Part No.:
- SMAJ9.0CAHM3_A/H
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Direction Type | Bi-Directional | |
| Product Type | TVS Diode | |
| Minimum Breakdown Voltage Vbr | 10V | |
| Mount Type | Surface | |
| Package Type | DO-214AC (SMA) | |
| Maximum Reverse Stand-off Voltage Vwm | 9V | |
| Peak Pulse Power Dissipation Pppm | 400W | |
| Clamping Voltage VC | 15.4V | |
| Maximum Peak Pulse Current Ippm | 26A | |
| Minimum Operating Temperature | -65°C | |
| Test Current It | 1mA | |
| ESD Protection | Yes | |
| Maximum Operating Temperature | 150°C | |
| Height | 2.79mm | |
| Length | 4.5mm | |
| Standards/Approvals | RoHS | |
| Series | SMAJ | |
| Automotive Standard | AEC-Q101 | |
| Maximum Reverse Leakage Current | 1μA | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Direction Type Bi-Directional | ||
Product Type TVS Diode | ||
Minimum Breakdown Voltage Vbr 10V | ||
Mount Type Surface | ||
Package Type DO-214AC (SMA) | ||
Maximum Reverse Stand-off Voltage Vwm 9V | ||
Peak Pulse Power Dissipation Pppm 400W | ||
Clamping Voltage VC 15.4V | ||
Maximum Peak Pulse Current Ippm 26A | ||
Minimum Operating Temperature -65°C | ||
Test Current It 1mA | ||
ESD Protection Yes | ||
Maximum Operating Temperature 150°C | ||
Height 2.79mm | ||
Length 4.5mm | ||
Standards/Approvals RoHS | ||
Series SMAJ | ||
Automotive Standard AEC-Q101 | ||
Maximum Reverse Leakage Current 1μA | ||
The Vishay Surface mount TRANSZORB transient voltage suppressors use in sensitive electronics protection against voltage transients induced by inductive load switching and lightning on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication.
Low profile package
Ideal for automated placement
Glass passivated chip junction
Available in unidirectional and bidirectional
1500 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 %
Excellent clamping capability
Very fast response time
Low incremental surge resistance
Meets MSL level 1, per J-STD-020, LF maximum peak
of 260 °C
AEC-Q101 qualified available
