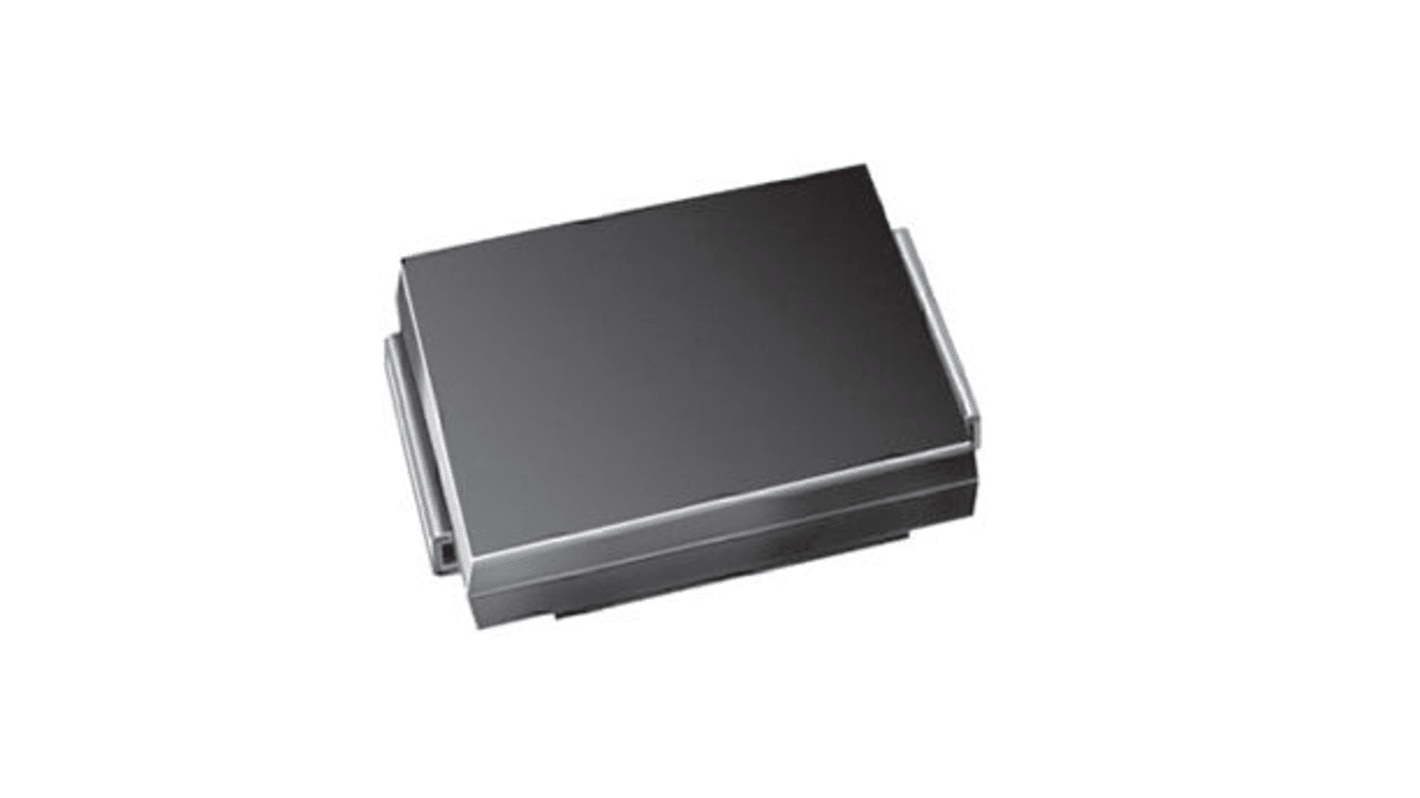

Vishay Bi-Directional TVS Diode, 1500 W, 2-Pin DO-214AB

View all TVS Diodes
Bulk discount available

Subtotal (1 reel of 850 units)*

£279.65

(exc. VAT)

£335.75

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Units
Per unit
Per Reel*
850 - 850£0.329£279.65
1700 +£0.312£265.20

*price indicative

RS Stock No.:
243-6942
Mfr. Part No.:
1.5SMC110CAHM3_A/H
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Product Type

TVS Diode

Direction Type

Bi-Directional

Minimum Breakdown Voltage Vbr

105V

Mount Type

Surface

Package Type

DO-214AB (SMC)

Maximum Reverse Stand-off Voltage Vwm

94V

Pin Count

2

Peak Pulse Power Dissipation Pppm

1500W

ESD Protection

Yes

Minimum Operating Temperature

-65°C

Maximum Peak Pulse Current Ippm

9.9A

Clamping Voltage VC

152V

Test Current It

1mA

Maximum Operating Temperature

150°C

Series

1.5SMC

Standards/Approvals

RoHS

Automotive Standard

AEC-Q101

The Vishay Surface mount TRANSZORB transient voltage suppressors use in sensitive electronics protection against voltage transients induced by inductive load switching and lightning on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication.

Low profile package

Ideal for automated placement

Glass passivated chip junction

Available in unidirectional and bidirectional

1500 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 %

Excellent clamping capability

Very fast response time

Low incremental surge resistance

Meets MSL level 1, per J-STD-020, LF maximum peak

of 260 °C

AEC-Q101 qualified available
