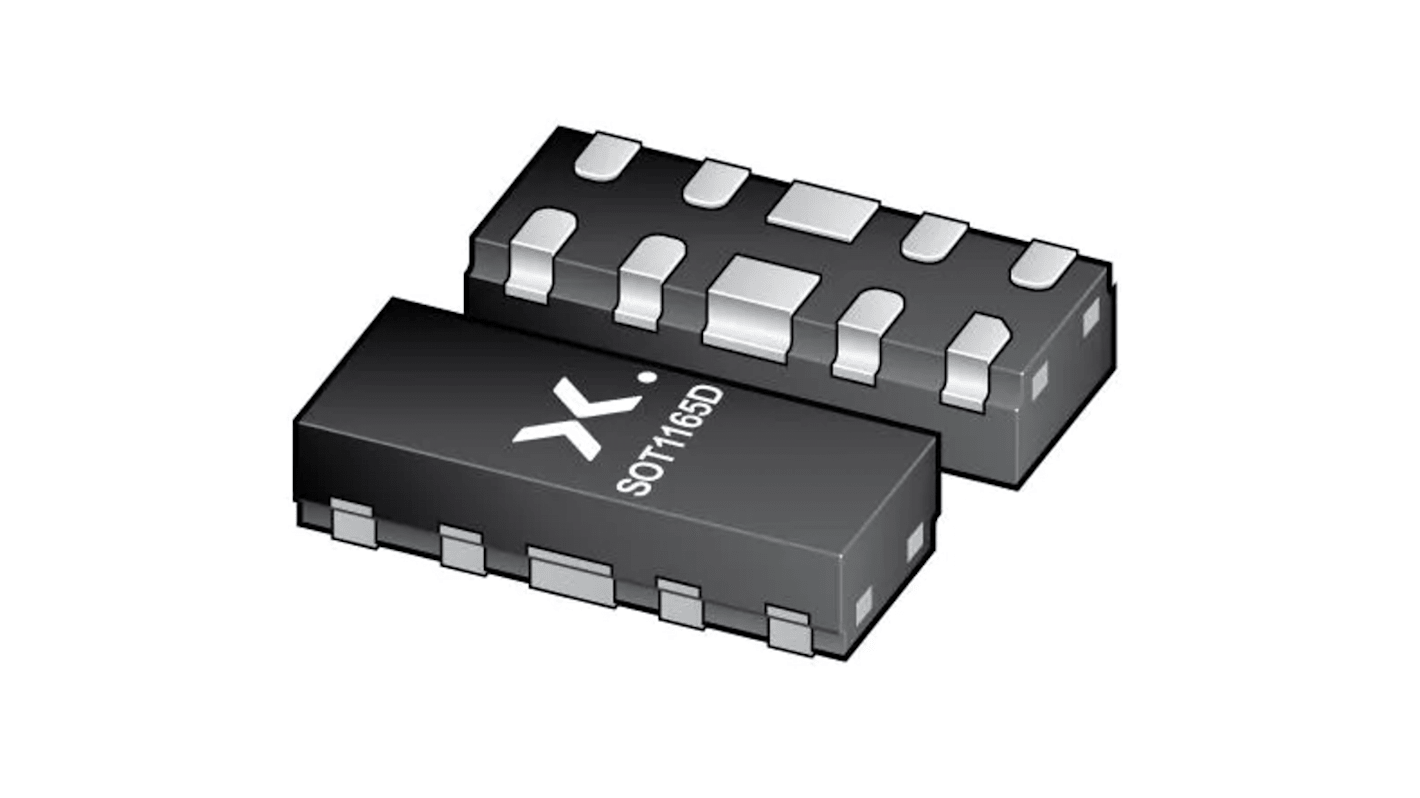

Nexperia Uni-Directional ESD Protection Device, 10-Pin DFN2510D

View all TVS Diodes

Subtotal (1 reel of 4000 units)*

£428.00

(exc. VAT)

£512.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 14 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
4000 +£0.107£428.00

*price indicative

RS Stock No.:
243-4812
Mfr. Part No.:
PESD4USB3U-TTSX
Brand:
Nexperia
Find similar products by selecting one or more attributes.
Select all

Brand

Nexperia

Product Type

ESD Protection Device

Direction Type

Uni-Directional

Minimum Breakdown Voltage Vbr

6V

Mount Type

Surface

Package Type

DFN2510D

Maximum Reverse Stand-off Voltage Vwm

3.3V

Pin Count

10

Clamping Voltage VC

3.5V

Test Current It

1mA

Minimum Operating Temperature

-55°C

Maximum Peak Pulse Current Ippm

7A

ESD Protection

Yes

Maximum Operating Temperature

150°C

Standards/Approvals

ISO10605, IEC61000-4-2 Level 4

Series

PESD4USB3U

Height

0.75mm

Length

2.5mm

Width

1 mm

Maximum Reverse Leakage Current

100nA

Automotive Standard

AEC-Q101

The Nexperia unidirectional ESD protection device is designed to protect high-speed interfaces such as Super Speed USB 3.2 at 10 Gbps, HDMI, Display Port, external Serial Advanced Technology Attachment (eSATA), Low Voltage Differential Signalling (LVDS), and Gigabit Multimedia Serial Link (GMSL) Serializer/Deserializer (SerDes) against ElectroStatic Discharge (ESD).

Line capacitance of only 0.5 pF for each channel

Outstanding system protection extremely deep snap-back combined with dynamic resistance of 0.4 Ω

ESD protection level up to ±15 kV

Matched 0.5 mm trace spacing and side-wettable flanks (SWF) for AOI

Design-friendly ’pass-through’ signal routing

Infotainment applications like USB 2.0, SuperSpeed USB 3.2 at 10 Gbps, HDMI 2.0, HDBaseT

Automotive A/V monitors, display and cameras

SerDes GMSL, FPD-Link, LVDS
