Nexperia PESD1IVN27-LSYL Bi-Directional ESD Protection Diode, 2-Pin DFN1006BD-2

View all TVS Diodes
Bulk discount available

Subtotal (1 pack of 25 units)*

£4.45

(exc. VAT)

£5.35

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 5,725 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Pack*
25 - 475£0.178£4.45
500 - 975£0.062£1.55
1000 - 2475£0.042£1.05
2500 - 4975£0.033£0.83
5000 +£0.033£0.83

*price indicative

Packaging Options:
RS Stock No.:
240-1943
Mfr. Part No.:
PESD1IVN27-LSYL
Brand:
Nexperia
Find similar products by selecting one or more attributes.
Select all

Brand

Nexperia

Direction Type

Bi-Directional

Product Type

ESD Protection Diode

Minimum Breakdown Voltage Vbr

28V

Mount Type

Surface

Package Type

DFN1006BD-2

Maximum Reverse Stand-off Voltage Vwm

27V

Pin Count

2

Maximum Peak Pulse Current Ippm

3A

ESD Protection

Yes

Clamping Voltage VC

45V

Minimum Operating Temperature

-65°C

Maximum Operating Temperature

150°C

Length

1mm

Height

0.6mm

Standards/Approvals

RoHS, IEC 61000-4-2

Series

PESD1IVN27-LS

Maximum Reverse Leakage Current

50nA

Automotive Standard

AEC-Q101

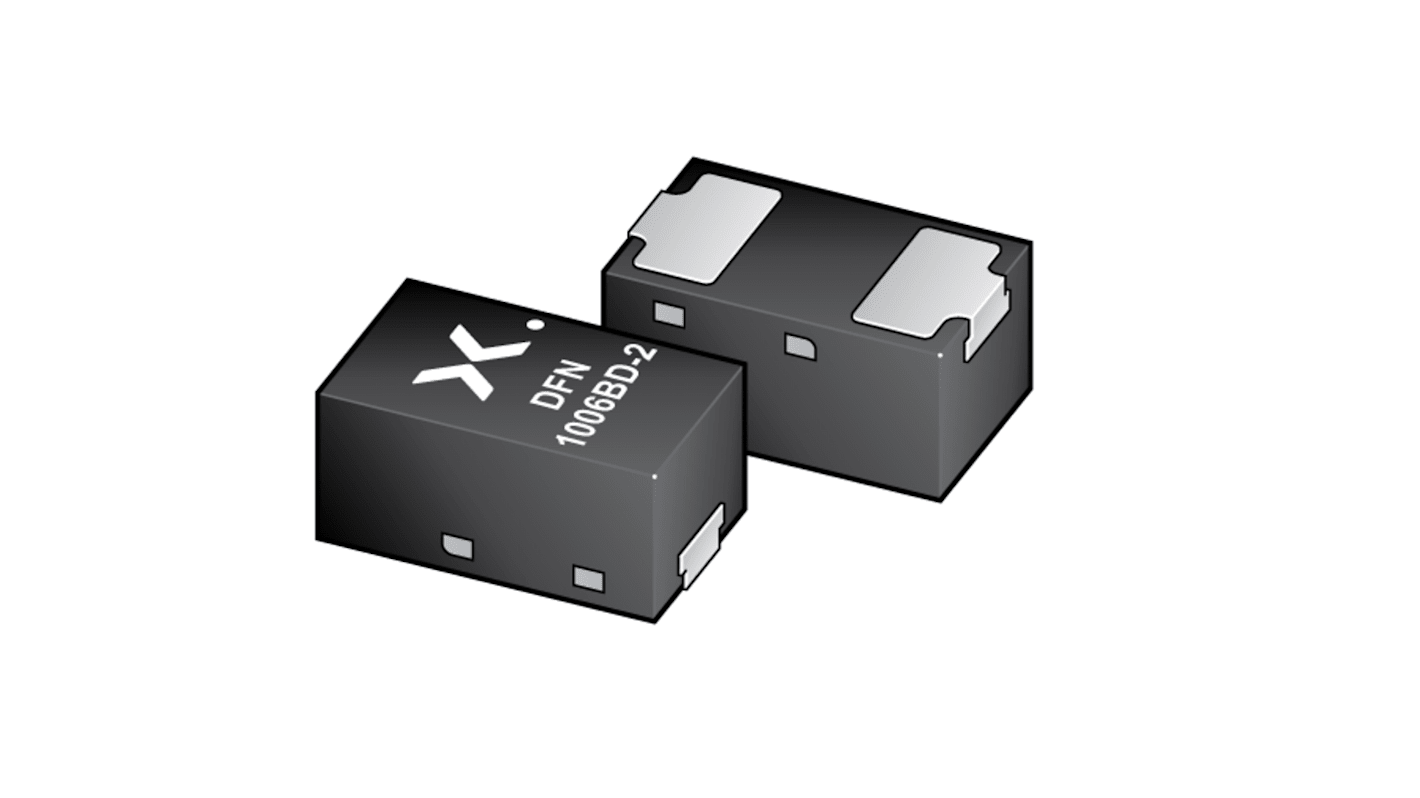

The Nexperia ESD protection device in a leadless ultra small DFN1006BD-2 (SOD882BD) Surface-Mounted Device (SMD) plastic package with side-wettable flanks, designed to protect automotive In-vehicle network bus lines from the damage caused by Electrostatic

Reverse stand-off voltage VRWM27 V

Low clamping voltage VCL36 V at IPP3 A

ESD protection up to 30 kV (IEC 61000-4-2)

ESD protection up to 30 kV (ISO 10605 C330 pF, R330 Ω)

Ultra low leakage current IRM< 1 nA

Qualified according to AEC-Q101 / Automotive grade
